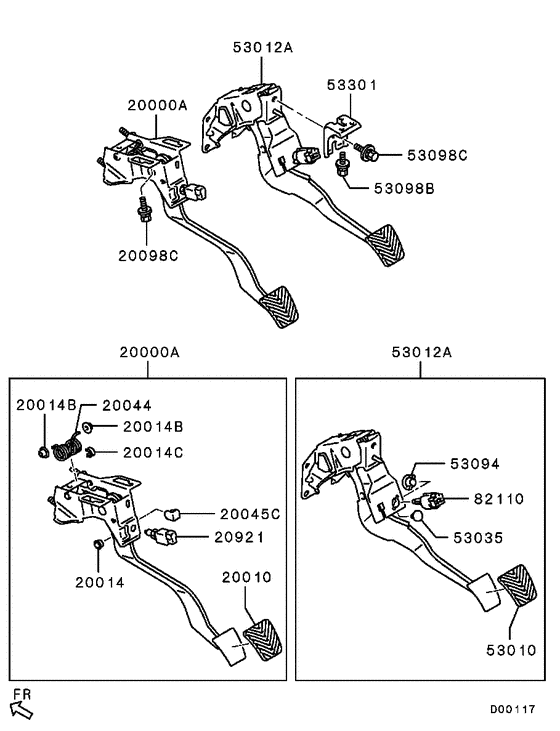

Brake & clutch pedal (LHD..M/T) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2008 - 2009
- Sales region
- EUR
- Note
- GLX(NSS4/EURO4/DPF),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000A
|
20000A
MR407329
PEDAL ASSY,CLUTCH
|
MR407329 |
— | ||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014
|
20014
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $3.53 |
||
|
20014B
|
20014B
MR307100 BUSHING, CLUTCH PEDAL4.5 |
MR307100 |
US $4.88 |
||
|
20014C
|
20014C
MR307101 BUSHING, CLUTCH PEDAL4.5 |
MR307101 |
US $4.88 |
||
|
20044
|
20044
MR307102 SPRING, CLUTCH PEDAL RETURN |
MR307102 |
from US $5.77 |
||
|
20098C
|
20098C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012A
|
53012A
4620A109
PEDAL ASSY,BRAKE
|
4620A109 |
— | ||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53094
|
53094
MR510883 CLIP, BRAKE PEDAL |
MR510883 |
US $2.52 |
||
|
53098B
|
53098B
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
53098C
|
53098C
MF247891 BOLT, ENG FR MOUNTINGWasher assembled,8x20 |
MF247891 |
US $2.19 |
||
|
53301
|
53301
4620A125 BRACKET, PEDAL SUPPORT MEMBER |
4620A125 |
US $9.77 |
||
|
82110
|
82110
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $14.08 |
