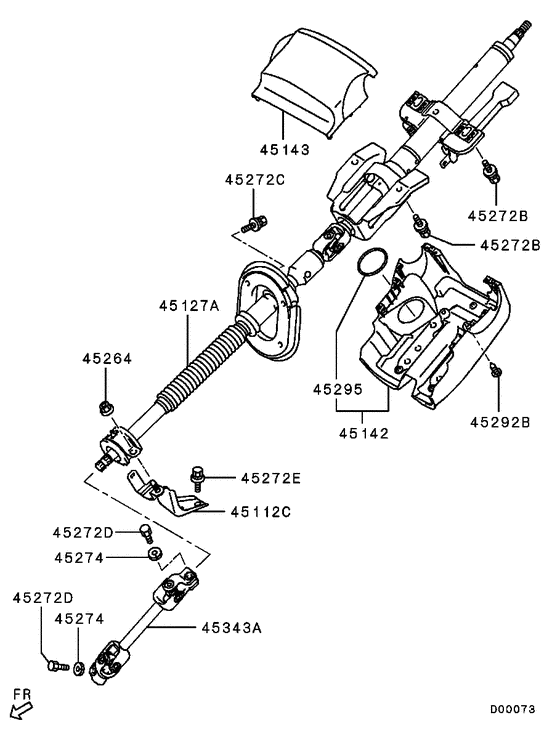

Steering column & cover (LHD) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2009
- Sales region
- EUR
- Note
- GLX(NSS4/EURO4/LOW PWR),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45112C
|
45112C
MR510944
BRACKET,STEERING COLUMN SUPPORT
|
MR510944 |
— | ||
|
45127A
|
45127A
4401A066
COLUMN ASSY,STEERING
|
4401A066 |
— | ||
|
45142
|
45142
8065A043XA
COVER,STEERING COLUMN,LWR
|
8065A043XA |
— | ||
|
45143
|
45143
8065A049XA COVER, STEERING COLUMN, UPR |
8065A049XA |
from US $18 |
||
|
45264
|
45264
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.53 |
||
|
45272B
|
45272B
MS240127 BOLT, STEERING COLUMNWasher assembled,8x30 |
MS240127 |
from US $1.16 |
||
|
45272C
|
45272C
MU000421 BOLT, STEERING COLUMN |
MU000421 |
US $0.86 |
||
|
45272D
|
45272D
MB532373 BOLT, STEERING COLUMN8x28 |
MB532373 |
from US $2.43 |
||
|
45272E
|
45272E
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
US $2.51 |
||
|
45274
|
45274
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.48 |
||
|
45292B
|
45292B
MB259951 SCREW, GLOVEBOXTapping,5x16 |
MB259951 |
US $2.02 |
||
|
45295
|
45295
MB522123 GROMMET, STEERING COLUMN COVER48 |
MB522123 |
from US $2.39 |
||
|
45343A
|
45343A
4401A069
JOINT ASSY,STEERING SHAFT
|
4401A069 |
— | ||
|
45343A
|
45343A
4401A148 JOINT ASSY, STEERING SHAFT |
4401A148 |
from US $133.70 |
