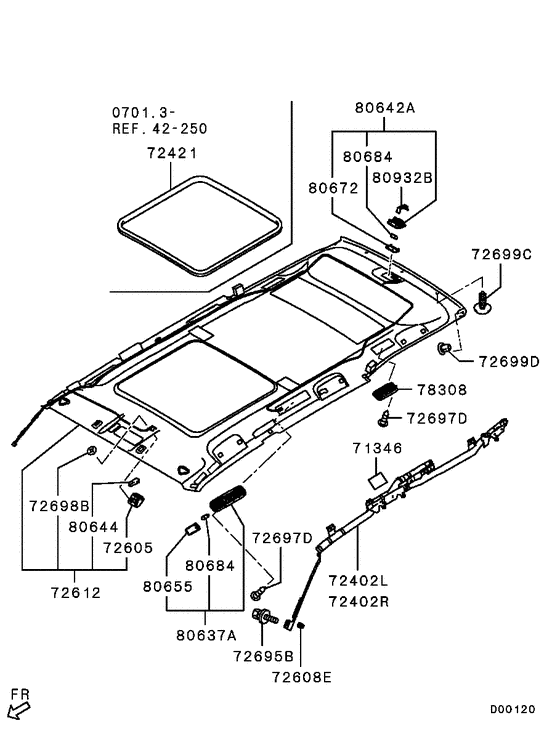

Headlining (W/SUNROOF..W/AIR OUTLET) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2009
- Sales region
- Japan
- Note
- EXCEED-X(NSS4),S5FA/T
- transmission
- S5FA/T
- grade
- EXCEED-X
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71346
|
71346
7030A212 TAPE, ROOF SIDE |
7030A212 |
US $1.92 |
||
|
71346
|
71346
MB031945 TAPE, A/C CONTROL EQUIP |
MB031945 |
US $2.05 |
||
|
72402L
|
72402L
7030A119 MODULE, ROOF RAIL AIR BAG, LH |
7030A119 |
US $711.98 |
||
| replacement | |||||
|
72402L
|
72402L
7030A199 MODULE, ROOF RAIL AIR BAG, LH |
7030A199 |
from US $556.30 |
||
|
72402L
|
72402L
7030A199 MODULE, ROOF RAIL AIR BAG, LH |
7030A199 |
from US $556.30 |
||
|
72402R
|
72402R
7030A120 MODULE, ROOF RAIL AIR BAG, RH |
7030A120 |
US $711.98 |
||
| replacement | |||||
|
72402R
|
72402R
7030A200 MODULE, ROOF RAIL AIR BAG, RH |
7030A200 |
from US $556.30 |
||
|
72402R
|
72402R
7030A200 MODULE, ROOF RAIL AIR BAG, RH |
7030A200 |
from US $556.30 |
||
|
72421
|
72421
7200A642HA TRIM, SUNROOF OPENING |
7200A642HA |
US $82.76 |
||
|
72421
|
72421
7200A642YA TRIM, SUNROOF OPENING |
7200A642YA |
US $82.76 |
||
|
72605
|
72605
8401A051HA COVER, HEADLINING |
8401A051HA |
US $2.52 |
||
|
72605
|
72605
8401A051YA COVER, HEADLINING |
8401A051YA |
US $2.52 |
||
|
72605
|
72605
8401A052HA COVER, HEADLINING |
8401A052HA |
US $2.52 |
||
|
72605
|
72605
8401A052YA COVER, HEADLINING |
8401A052YA |
US $2.52 |
||
|
72608E
|
72608E
MN124489 BRACKET, HEADLINING |
MN124489 |
US $1.48 |
||
|
72612
|
72612
7200A625HA HEADLINING |
7200A625HA |
US $893.98 |
||
|
72612
|
72612
7200A625YA HEADLINING |
7200A625YA |
US $893.98 |
||
|
72612
|
72612
7200A627HA HEADLINING |
7200A627HA |
US $893.98 |
||
|
72612
|
72612
7200A627YA HEADLINING |
7200A627YA |
US $893.98 |
||
|
72612
|
72612
7200A637HA HEADLINING |
7200A637HA |
US $893.98 |
||
|
72612
|
72612
7200A637YA HEADLINING |
7200A637YA |
US $893.98 |
||
|
72612
|
72612
7200A639HA HEADLINING |
7200A639HA |
US $893.98 |
||
|
72612
|
72612
7200A639YA HEADLINING |
7200A639YA |
US $893.98 |
||
|
72612
|
72612
7200A651HA HEADLINING |
7200A651HA |
US $893.98 |
||
|
72612
|
72612
7200A651YA HEADLINING |
7200A651YA |
US $893.98 |
||
|
72612
|
72612
7200A653HA HEADLINING |
7200A653HA |
US $893.98 |
||
|
72612
|
72612
7200A653YA HEADLINING |
7200A653YA |
US $893.98 |
||
|
72695B
|
72695B
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
72695B
|
72695B
MF911145 BOLT 6x16Flange,6x16 |
MF911145 |
US $2.05 |
||
|
72697D
|
72697D
MF455015 SCREW, FR DOORTapping,4x8 |
MF455015 |
US $1.18 |
||
|
72698B
|
72698B
MS440052 NUT, FR DOOR TRIM4 |
MS440052 |
US $2.60 |
||
|
72699C
|
72699C
MR647322 CLIP, HEADLINING |
MR647322 |
from US $1.77 |
||
|
72699C
|
72699C
MR647842 CLIP, HEADLINING |
MR647842 |
from US $1.64 |
||
|
72699D
|
72699D
MR444858 CLIP, HEADLINING |
MR444858 |
from US $1.70 |
||
|
78308
|
78308
7842A069HA AIR OUTLET, ROOF VENTILATOR |
7842A069HA |
from US $14.45 |
||
|
78308
|
78308
7842A069YA AIR OUTLET, ROOF VENTILATOR |
7842A069YA |
from US $12.75 |
||
|
80637A
|
80637A
8405A001HA LAMP ASSY, ROOM |
8405A001HA |
from US $63.08 |
||
|
80637A
|
80637A
8405A001YA LAMP ASSY, ROOM |
8405A001YA |
from US $52.07 |
||
|
80637A
|
80637A
MR962022HA LAMP ASSY, ROOM |
MR962022HA |
US $75.48 |
||
| replacement | |||||
|
80637A
|
80637A
8405A001HA LAMP ASSY, ROOM |
8405A001HA |
from US $63.08 |
||
|
80637A
|
80637A
MR962022YA LAMP ASSY, ROOM |
MR962022YA |
US $75.48 |
||
| replacement | |||||
|
80637A
|
80637A
8405A001YA LAMP ASSY, ROOM |
8405A001YA |
from US $52.07 |
||
|
80642A
|
80642A
MN108119HC LAMP ASSY, ROOM, RR |
MN108119HC |
from US $36.06 |
||
|
80642A
|
80642A
MN108119YB LAMP ASSY, ROOM, RR |
MN108119YB |
from US $41.72 |
||
|
80644
|
80644
8470A003 LAMP ASSY, FLOOR CONSOLE FOOT |
8470A003 |
from US $12.86 |
||
|
80655
|
80655
MN179497 LENS, ROOM LAMP |
MN179497 |
from US $6.63 |
||
|
80672
|
80672
MN140646 LENS, RR ROOM LAMP |
MN140646 |
from US $5.27 |
||
|
80684
|
80684
MF820513 BULB, ROOM LAMP |
MF820513 |
from US $2.94 |
||
|
80932B
|
80932B
MN108882 CLIP, ROOM LAMP |
MN108882 |
US $3.40 |
||
|
