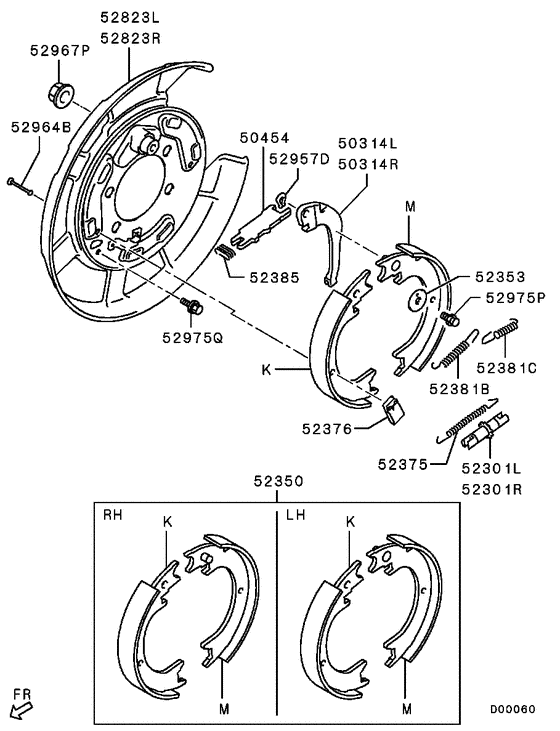

Rear wheel brake (PARKING BRAKE) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2009
- Sales region
- Japan
- Note
- EXCEED-X(NSS4),S5FA/T
- transmission
- S5FA/T
- grade
- EXCEED-X
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50314L
|
50314L
4800A063 LEVER, PARKING BRAKE OPERATING, LH |
4800A063 |
from US $22.72 |
||
|
50314R
|
50314R
4800A064 LEVER, PARKING BRAKE OPERATING, RH |
4800A064 |
US $24.62 |
||
|
50454
|
50454
4800A065 STRUT, PARKING BRAKE OPERATING LEVER |
4800A065 |
from US $13.67 |
||
|
52301L
|
52301L
4800A075 ADJUSTER, RR BRAKE SHOE SLACK, LH |
4800A075 |
from US $44.46 |
||
|
52301R
|
52301R
4800A076 ADJUSTER, RR BRAKE SHOE SLACK, RH |
4800A076 |
from US $44.46 |
||
|
52350
|
52350
4800A057 SHOE SET, RR BRAKE |
4800A057 |
from US $72.75 |
||
|
52353
|
52353
4800A074 PLATE, RR BRAKE SHOE GUIDE |
4800A074 |
from US $3.22 |
||
|
52375
|
52375
4800A070 SPRING, RR BRAKE SHOE AUTO ADJUSTER |
4800A070 |
from US $6.44 |
||
|
52376
|
52376
4800A071 SPRING, RR BRAKE SHOE HOLD-DOWN |
4800A071 |
from US $4.29 |
||
|
52381B
|
52381B
4800A068 SPRING, RR BRAKE SHOE RETURN |
4800A068 |
from US $7.18 |
||
|
52381C
|
52381C
4800A069 SPRING, RR BRAKE SHOE RETURN |
4800A069 |
from US $7.52 |
||
|
52385
|
52385
4800A066 SPRING, RR BRAKE SHOE TO STRUT |
4800A066 |
from US $5.06 |
||
|
52823L
|
52823L
4800A061 PLATE, RR BRAKE BACKING, LH |
4800A061 |
from US $72.58 |
||
|
52823R
|
52823R
4800A062 PLATE, RR BRAKE BACKING, RH |
4800A062 |
from US $69.34 |
||
|
52957D
|
52957D
4800A067 WASHER, RR BRAKE |
4800A067 |
from US $1.83 |
||
|
52964B
|
52964B
4800A072 PIN, RR BRAKE |
4800A072 |
from US $3.02 |
||
|
52967P
|
52967P
9031A001 NUT, RR BRAKE |
9031A001 |
US $3.28 |
||
|
52975P
|
52975P
4800A073 BOLT, RR BRAKE |
4800A073 |
from US $0.98 |
||
|
52975Q
|
52975Q
4800A030 BOLT, RR BRAKE |
4800A030 |
US $4.10 |
