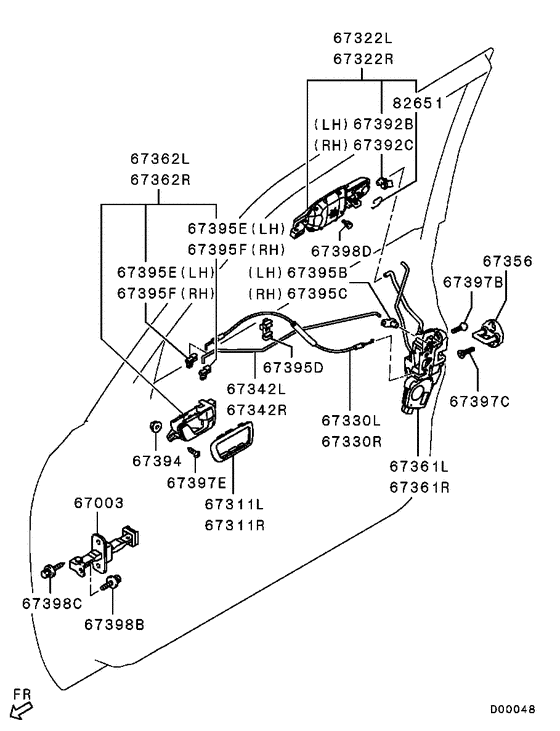

Front door locking (W/O THEFT PROTECTION) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2008 - 2009
- Sales region
- EUR
- Note
- GLS(NSS4/7SEATER/EURO2),S5FA/T LHD
- transmission
- S5FA/T
- grade
- GLS
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
5702A091 CHECK, FR DOOR |
5702A091 |
from US $14.25 |
||
|
67311L
|
67311L
MR655490 COVER, RR DOOR INSIDE HANDLE, LH |
MR655490 |
from US $8.29 |
||
|
67311L
|
67311L
MR655491 COVER, RR DOOR INSIDE HANDLE, LH |
MR655491 |
from US $7.43 |
||
|
67311R
|
67311R
MR655492 COVER, RR DOOR INSIDE HANDLE, RH |
MR655492 |
from US $8.42 |
||
|
67311R
|
67311R
MR655493 COVER, RR DOOR INSIDE HANDLE, RH |
MR655493 |
from US $7.52 |
||
|
67322L
|
67322L
5716A335BA
HANDLE,FR DOOR OUTSIDE,LH
|
5716A335BA |
— | ||
|
67322L
|
67322L
5716A335GA
HANDLE,FR DOOR OUTSIDE,LH
|
5716A335GA |
— | ||
|
67322L
|
67322L
5716A335HA HANDLE,FR DOOR OUTSIDE,LHCHROME HANDLE |
5716A335HA |
US $101.97 |
||
|
67322L
|
67322L
5716A335HB
HANDLE,FR DOOR OUTSIDE,LH
|
5716A335HB |
— | ||
|
67322L
|
67322L
5716A335RA
HANDLE,FR DOOR OUTSIDE,LH
|
5716A335RA |
— | ||
|
67322L
|
67322L
5716A335WA HANDLE,FR DOOR OUTSIDE,LHCHROME HANDLE |
5716A335WA |
US $96.04 |
||
|
67322L
|
67322L
5716A335WB HANDLE,FR DOOR OUTSIDE,LHCHROME HANDLE |
5716A335WB |
US $96.04 |
||
|
67322L
|
67322L
5716A335XA HANDLE,FR DOOR OUTSIDE,LHCHROME HANDLE |
5716A335XA |
US $94.42 |
||
|
67322L
|
67322L
5716A335YA
HANDLE,FR DOOR OUTSIDE,LH
|
5716A335YA |
— | ||
|
67322L
|
67322L
5716A335YB
HANDLE,FR DOOR OUTSIDE,LH
|
5716A335YB |
— | ||
|
67322R
|
67322R
5716A336BA
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336BA |
— | ||
|
67322R
|
67322R
5716A336GA
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336GA |
— | ||
|
67322R
|
67322R
5716A336HA
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336HA |
— | ||
|
67322R
|
67322R
5716A336HB
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336HB |
— | ||
|
67322R
|
67322R
5716A336RA
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336RA |
— | ||
|
67322R
|
67322R
5716A336WA HANDLE,FR DOOR OUTSIDE,RHCHROME HANDLE |
5716A336WA |
US $96.04 |
||
|
67322R
|
67322R
5716A336WB
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336WB |
— | ||
|
67322R
|
67322R
5716A336XA HANDLE,FR DOOR OUTSIDE,RHCHROME HANDLE |
5716A336XA |
US $100.64 |
||
|
67322R
|
67322R
5716A336YA HANDLE,FR DOOR OUTSIDE,RHCHROME HANDLE |
5716A336YA |
US $78.20 |
||
|
67322R
|
67322R
5716A336YB
HANDLE,FR DOOR OUTSIDE,RH
|
5716A336YB |
— | ||
|
67330L
|
67330L
MR432767 CABLE, FR DOOR INSIDE LOCK, LH |
MR432767 |
from US $10.04 |
||
|
67330R
|
67330R
MR432768 CABLE, FR DOOR INSIDE LOCK, RH |
MR432768 |
from US $10.32 |
||
|
67342L
|
67342L
MR432765 ROD, FR DOOR INSIDE HANDLE, LH |
MR432765 |
from US $6.51 |
||
|
67342R
|
67342R
MR432766 ROD, FR DOOR INSIDE HANDLE, RH |
MR432766 |
from US $5.30 |
||
|
67356
|
67356
MB867059 STRIKER, FR DOOR LATCH |
MB867059 |
from US $9.87 |
||
|
67361L
|
67361L
MR512235
LATCH,FR DOOR,LH
|
MR512235 |
— | ||
|
67361R
|
67361R
5715A280 LATCH,FR DOOR,RH |
5715A280 |
US $207.36 |
||
|
67362L
|
67362L
5716A241XA HANDLE, FR DOOR INSIDE, LH |
5716A241XA |
US $60.19 |
||
|
67362L
|
67362L
5716A241YA HANDLE, FR DOOR INSIDE, LH |
5716A241YA |
from US $60.88 |
||
|
67362R
|
67362R
5716A242XA HANDLE, FR DOOR INSIDE, RH |
5716A242XA |
US $64.38 |
||
|
67362R
|
67362R
5716A242YA HANDLE, FR DOOR INSIDE, RH |
5716A242YA |
US $64.38 |
||
|
67392B
|
67392B
MU481091 SNAP, FR DOOR LOCKING |
MU481091 |
from US $0.99 |
||
|
67392C
|
67392C
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
67394
|
67394
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
67395B
|
67395B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
67395C
|
67395C
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
67395D
|
67395D
MU481262 CLIP, FR DOOR LOCKING |
MU481262 |
from US $0.96 |
||
|
67395E
|
67395E
MR396059 CLIP, RR DOOR LOCKING |
MR396059 |
US $2.52 |
||
|
67395F
|
67395F
MR396060 CLIP, RR DOOR LOCKING |
MR396060 |
US $2.37 |
||
|
67397B
|
67397B
MU200081 SCREW, FR DOOR LOCKINGMachine,6x18 |
MU200081 |
from US $1.40 |
||
|
67397C
|
67397C
MU340043 SCREW, FR DOOR LOCKINGW/washer(torx),8x20 |
MU340043 |
from US $2.67 |
||
|
67397E
|
67397E
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
67398B
|
67398B
MU000474 BOLT, FR DOOR LOCKING8x20 |
MU000474 |
from US $1.07 |
||
|
67398C
|
67398C
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
67398D
|
67398D
MR599678 BOLT, FR DOOR LOCKING6x11 |
MR599678 |
from US $1.46 |
||
|
82651
|
82651
MB676441 RING, DOOR LOCK CYLINDER |
MB676441 |
US $1.78 |
