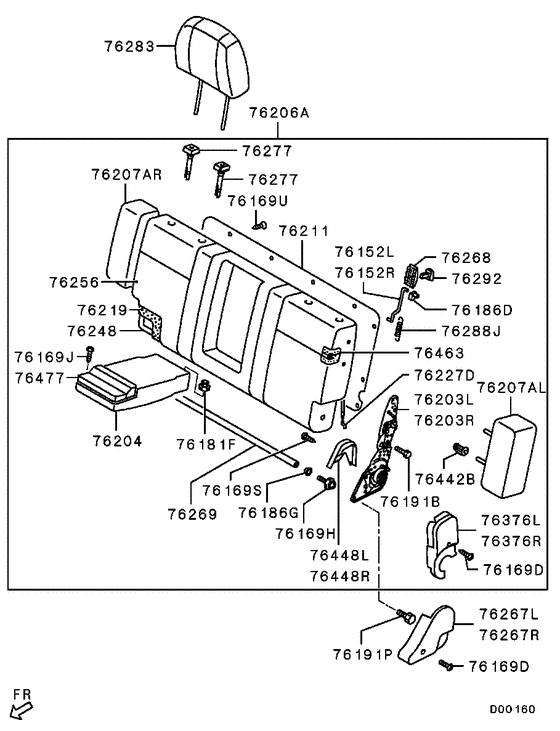

Rear seat (BENCH..BACK) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2008 - 2009
- Sales region
- EUR
- Note
- GLS(NSS4/7SEATER/EURO2),S5FA/T LHD
- transmission
- S5FA/T
- grade
- GLS
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76152L
|
76152L
MR408249 ROD, RR SEAT RECLINING ADJUSTER, LH |
MR408249 |
from US $6.57 |
||
|
76152R
|
76152R
MR408250 ROD, RR SEAT RECLINING ADJUSTER, RH |
MR408250 |
US $8.58 |
||
|
76169D
|
76169D
MF455375 SCREW, STEERING COLUMN COVERTapping,4x8 |
MF455375 |
US $2.60 |
||
|
76169H
|
76169H
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
76169J
|
76169J
MR408229 SCREW, RR SEAT |
MR408229 |
US $1.78 |
||
|
76169S
|
76169S
MF455377 SCREW, FR DOOR ARMRESTTapping,4x12 |
MF455377 |
US $1.63 |
||
|
76169S
|
76169S
MF456455 SCREW, RR SHELF TRIMMk498909,4x8 |
MF456455 |
US $2.19 |
||
|
76169U
|
76169U
MF453019 SCREW, STEERING COLUMN COVERTapping,4x16 |
MF453019 |
from US $1.74 |
||
|
76181F
|
76181F
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
76186D
|
76186D
MR347057 BUSHING, RR SEAT |
MR347057 |
US $2.81 |
||
|
76186G
|
76186G
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
76191B
|
76191B
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
76191P
|
76191P
MN148223 BOLT, RR SEAT |
MN148223 |
US $2.07 |
||
|
76203L
|
76203L
MR408203 ADJUSTER, 2ND SEAT RECLINING |
MR408203 |
US $90.28 |
||
|
76203R
|
76203R
6924A196 ADJUSTER, 2ND SEAT RECLINING, RH |
6924A196 |
US $90.28 |
||
|
76204
|
76204
MR655618 ARMREST, 2ND SEAT |
MR655618 |
US $331.97 |
||
|
76204
|
76204
MR655619 ARMREST, 2ND SEAT |
MR655619 |
US $331.97 |
||
|
76207AL
|
76207AL
MR655626 BACK ASSY, 2ND SEAT SIDE, LH |
MR655626 |
US $140.60 |
||
|
76207AL
|
76207AL
MR655627 BACK ASSY, 2ND SEAT SIDE, LH |
MR655627 |
US $140.60 |
||
|
76207AR
|
76207AR
MR655628 BACK ASSY, 2ND SEAT SIDE, RH |
MR655628 |
US $140.60 |
||
|
76207AR
|
76207AR
MR655629 BACK ASSY, 2ND SEAT SIDE, RH |
MR655629 |
US $140.60 |
||
|
76227D
|
76227D
MR408125 CABLE, 2ND SEAT LEVER CONTROL |
MR408125 |
from US $23.26 |
||
|
76267L
|
76267L
MR655456 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR655456 |
US $7.80 |
||
|
76267L
|
76267L
MR655457 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR655457 |
US $8.14 |
||
|
76267R
|
76267R
MR655458 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR655458 |
from US $8.14 |
||
|
76267R
|
76267R
MR655459 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR655459 |
US $8.14 |
||
|
76268
|
76268
MR655580 GARNISH, 2ND SEAT SLIDE ADJUSTER LEVER |
MR655580 |
US $6.84 |
||
|
76268
|
76268
MR655581 GARNISH, 2ND SEAT SLIDE ADJUSTER LEVER |
MR655581 |
from US $6.49 |
||
|
76277
|
76277
MR648196 GUIDE, 2ND SEAT HEADRESTW/lock |
MR648196 |
US $9.62 |
||
|
76277
|
76277
MR648197 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR648197 |
from US $7.02 |
||
|
76277
|
76277
MR655529 GUIDE, 2ND SEAT HEADRESTW/lock |
MR655529 |
US $9.62 |
||
|
76277
|
76277
MR655557 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR655557 |
US $9.17 |
||
|
76283
|
76283
6971A066XA HEADREST, 2ND SEAT |
6971A066XA |
US $208.68 |
||
|
76283
|
76283
6971A066XB HEADREST, 2ND SEAT |
6971A066XB |
US $208.68 |
||
|
76283
|
76283
6971A066YA HEADREST, 2ND SEAT |
6971A066YA |
US $208.68 |
||
|
76283
|
76283
6971A066YC HEADREST, 2ND SEAT |
6971A066YC |
US $208.68 |
||
|
76288J
|
76288J
MB872417 SPRING, 2ND JUMP SEAT LINK LEVER |
MB872417 |
US $2.81 |
||
|
76292
|
76292
MR655388 KNOB, RR SEAT FOLDING |
MR655388 |
from US $3.28 |
||
|
76292
|
76292
MR655389 KNOB, RR SEAT FOLDING |
MR655389 |
from US $3.71 |
||
|
76376L
|
76376L
MR655398 COVER, 2ND SEAT RECLINING ADJUSTER |
MR655398 |
US $12.28 |
||
|
76376L
|
76376L
MR655399 COVER, 2ND SEAT RECLINING ADJUSTER |
MR655399 |
US $12.28 |
||
|
76376R
|
76376R
MR655468 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR655468 |
from US $7.14 |
||
|
76376R
|
76376R
MR655469 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR655469 |
US $8.14 |
||
|
76442B
|
76442B
MR251043 COVER, RR SEAT RECLINING ADJUSTER |
MR251043 |
US $2.37 |
||
|
76448L
|
76448L
MR655462 COVER, 2ND SEAT RECLINING ADJUSTER |
MR655462 |
US $6.51 |
||
|
76448L
|
76448L
MR655463 COVER, 2ND SEAT RECLINING ADJUSTER |
MR655463 |
US $6.51 |
||
|
76448R
|
76448R
MR655464 COVER, 2ND SEAT RECLINING ADJUSTER |
MR655464 |
US $6.51 |
||
|
76448R
|
76448R
MR655465 COVER, 2ND SEAT RECLINING ADJUSTER |
MR655465 |
US $6.51 |
||
|
76463
|
76463
MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE |
MA167873 |
from US $1.58 |
||
|
76477
|
76477
MR655262 HOLDER, 2ND SEAT CUP |
MR655262 |
US $49.25 |
||
|
76477
|
76477
MR655449 HOLDER, 2ND SEAT CUP |
MR655449 |
US $51.98 |
