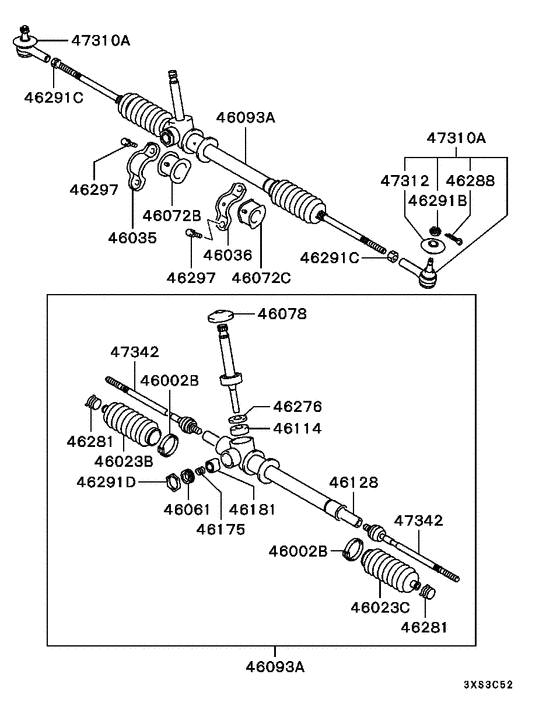

Steering gear (MANUAL STEERING) Diagram Mitsubishi PAJERO/MONTERO MINI
- Year
- 1995 - 1996
- Sales region
- Japan
- Note
- XR-1,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- XR-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002B
|
46002B
MB122139 BAND, INDEPENDENT RR SUSP ARM270 |
MB122139 |
from US $4.60 |
||
|
46023B
|
46023B
MR151017 BELLOWS, STEERING GEAR |
MR151017 |
US $33.30 |
||
|
46023C
|
46023C
MR151018 BELLOWS, STEERING GEAR |
MR151018 |
US $27.38 |
||
|
46035
|
46035
MB288938 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MB288938 |
US $12.58 |
||
|
46036
|
46036
MB288982 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MB288982 |
US $3.40 |
||
|
46036
|
46036
MB932727 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MB932727 |
US $9.77 |
||
|
46061
|
46061
MB489507 COVER, STEERING GEAR RACK SUPPORT |
MB489507 |
US $10.66 |
||
|
46072B
|
46072B
MR133042 CUSHION, STEERING GEAR |
MR133042 |
US $10.12 |
||
|
46072C
|
46072C
MB288983 CUSHION, STEERING GEAR |
MB288983 |
US $5.47 |
||
|
46078
|
46078
MR234395 COVER, STEERING GEAR PINION |
MR234395 |
US $9.62 |
||
|
46093A
|
46093A
MR150215 GEAR & LINK ASSY, STEERING |
MR150215 |
US $918.74 |
||
|
46114
|
46114
MB076551 OIL SEAL, STEERING GEAR PINION |
MB076551 |
US $5.92 |
||
|
46128
|
46128
MB844957
RACK, STEERING GEAR
|
MB844957 |
— | ||
|
46128
|
46128
MR234394 RACK, STEERING GEAR |
MR234394 |
US $236.80 |
||
|
46175
|
46175
MB006420 SPRING, STEERING GEAR RACK SUPPORT |
MB006420 |
US $5.77 |
||
|
46181
|
46181
MB844977 SUPPORT, STEERING GEAR RACK |
MB844977 |
US $22.94 |
||
|
46181
|
46181
MR234211 SUPPORT, STEERING GEAR RACK |
MR234211 |
US $22.57 |
||
|
46276
|
46276
MB185386 SNAP RING SET, STEERING GEAR INR |
MB185386 |
US $16.28 |
||
|
46281
|
46281
MB347385 CLIP, STEERING GEAR |
MB347385 |
US $3.40 |
||
|
46288
|
46288
MF472054 PIN, ENG OIL PUMP INRSplit,2.5x25 |
MF472054 |
US $1.37 |
||
|
46291B
|
46291B
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46291B
|
46291B
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
46291C
|
46291C
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46291C
|
46291C
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
46291D
|
46291D
MB489509 NUT, STEERING GEARLock |
MB489509 |
US $6.22 |
||
|
46297
|
46297
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
47310A
|
47310A
MB598023
END ASSY, TIE ROD
|
MB598023 |
— | ||
| replacement | |||||
|
47310A
|
47310A
MR535996 END ASSY, TIE ROD |
MR535996 |
US $80.71 |
||
|
47312
|
47312
MB616023
COVER, TIE ROD END
|
MB616023 |
— | ||
| replacement | |||||
|
47312
|
47312
4422A137 TIE ROD END BOOT |
4422A137 |
US $19.20 |
||
|
47342
|
47342
MR234387 TIE ROD, STEERING |
MR234387 |
US $133.38 |
||
|
47342
|
47342
MR234393 TIE ROD, STEERING |
MR234393 |
US $110.26 |
||
