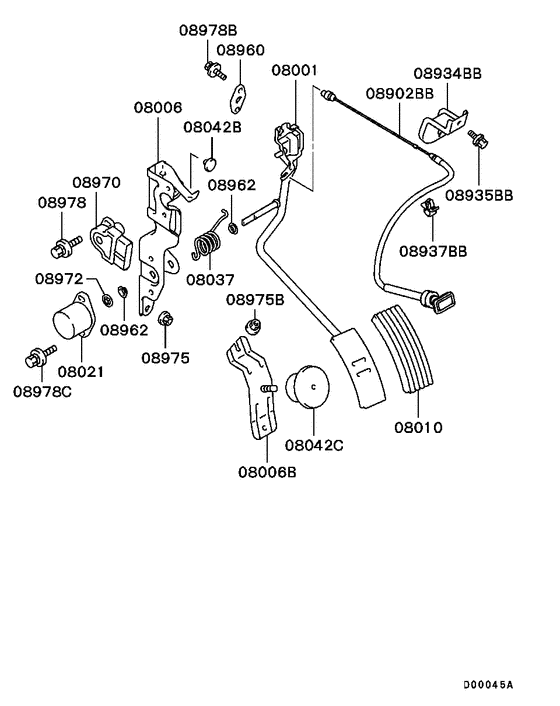

Engine control (LHD..ELEC/CONT TYPE) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1998 - 2009
- Sales region
- EUR
- Note
- GLX,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08001
|
08001
MR407961 ARM,ACCEL PEDAL |
MR407961 |
US $39.22 |
||
|
08001
|
08001
MR569608
ARM,ACCEL PEDAL
|
MR569608 |
— | ||
|
08006
|
08006
MR133259 BRACKET,ACCEL PEDAL ARM |
MR133259 |
US $14.21 |
||
|
08006
|
08006
MR527793
BRACKET,ACCEL PEDAL ARM
|
MR527793 |
— | ||
|
08006B
|
08006B
MR955157
BRACKET,ACCEL PEDAL ARM
|
MR955157 |
— | ||
|
08010
|
08010
MB181266 PEDAL, ACCEL |
MB181266 |
from US $7.16 |
||
|
08021
|
08021
MR510740 DAMPER, ACCEL PEDAL ARM |
MR510740 |
US $59.20 |
||
|
08037
|
08037
MB011387 SPRING, ACCEL PEDAL ARM RETURN |
MB011387 |
from US $2.15 |
||
|
08037
|
08037
MR977200
SPRING,ACCEL PEDAL ARM RETURN
|
MR977200 |
— | ||
|
08042B
|
08042B
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
08042B
|
08042B
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
US $5.47 |
||
|
08042C
|
08042C
MR527100 STOPPER, ACCEL PEDAL ARM |
MR527100 |
from US $7.39 |
||
|
08902BB
|
08902BB
MR360185 CABLE,CHOKE |
MR360185 |
US $26.64 |
||
|
08902BB
|
08902BB
MR568352
CABLE,CHOKE
|
MR568352 |
— | ||
|
08934BB
|
08934BB
MR398722 BRACKET,ENG IDLE CONTROL EQUIP |
MR398722 |
US $5.77 |
||
|
08934BB
|
08934BB
MR568228
BRACKET,ENG IDLE CONTROL EQUIP
|
MR568228 |
— | ||
|
08935BB
|
08935BB
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
08937BB
|
08937BB
MB011808 CLIP, FUEL FILLER LID LOCKING6 |
MB011808 |
US $2.74 |
||
|
08960
|
08960
MR131872 PROTECTOR, ACCEL CONTROL EQUIP |
MR131872 |
US $2.37 |
||
|
08962
|
08962
MR307081 BUSHING, ACCEL CONTROL EQUIP |
MR307081 |
US $2.87 |
||
|
08970
|
08970
MR578791 SENSOR, ACCEL |
MR578791 |
US $162.80 |
||
|
08972
|
08972
MR307082 SNAP RING, ACCEL CONTROL EQUIP |
MR307082 |
US $2.05 |
||
|
08975
|
08975
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.68 |
||
|
08975B
|
08975B
MU431008 NUT, FR DOOR LOCKINGWasher assembled,6 |
MU431008 |
US $0.30 |
||
|
08978
|
08978
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
US $3.01 |
||
|
08978
|
08978
MF243603 BOLT, ACCEL CONTROL EQUIPWasher assembled,5x14 |
MF243603 |
US $1.18 |
||
|
08978B
|
08978B
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.66 |
||
|
08978C
|
08978C
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.82 |
||
