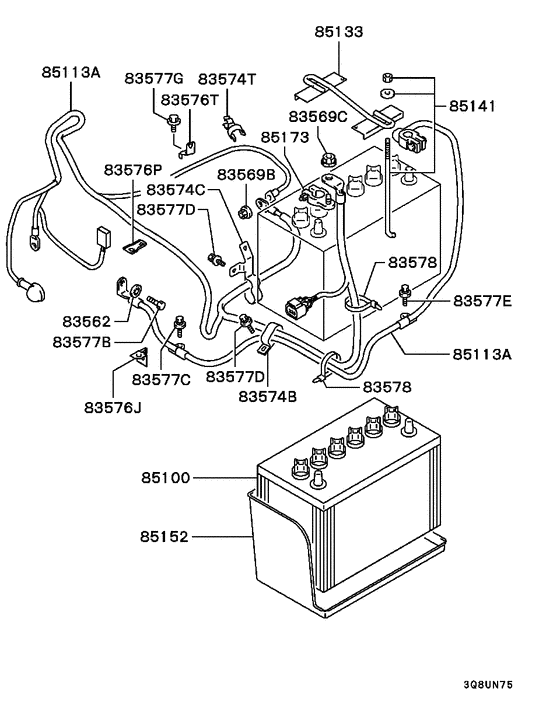

Battery cable & bracket (1-BATTERY & 2-BATTERY TYPE..MAIN) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83562
|
83562
MF450886 WASHER, FUEL TANKTooth,10 |
MF450886 |
US $1.92 |
||
|
83569B
|
83569B
MS440134 NUT, CARBFlange,8 |
MS440134 |
from US $1.11 |
||
|
83569C
|
83569C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
83569C
|
83569C
MU430010 NUT, BATTERY WIRINGSpring,8 |
MU430010 |
US $3.56 |
||
|
83574B
|
83574B
MB298746
CLIP, A/C PIPING
|
MB298746 |
— | ||
|
83574B
|
83574B
MR158562 CLIP, BATTERY WIRING |
MR158562 |
US $5.18 |
||
|
83574C
|
83574C
MR158560 CLIP, BATTERY WIRING |
MR158560 |
US $6.22 |
||
|
83574T
|
83574T
MR979320
CLIP,BATTERY WIRING
|
MR979320 |
— | ||
|
83576P
|
83576P
MR383053 BRACKET, ENG WIRING |
MR383053 |
US $2.07 |
||
|
83577B
|
83577B
MF100081 BOLT, ROCKER COVER10x16 |
MF100081 |
US $1.92 |
||
|
83577C
|
83577C
MB133472 BOLT, FUEL TANKWasher assembled,8x20 |
MB133472 |
from US $2.18 |
||
|
83577C
|
83577C
MF915002 BOLT, INSTRUMENT PANEL8x20 |
MF915002 |
US $2.96 |
||
|
83577D
|
83577D
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
83577E
|
83577E
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
83577E
|
83577E
MF915001 BOLT, BATTERY WIRINGFlange(earth)tapere,6x20 |
MF915001 |
US $0.89 |
||
|
83577G
|
83577G
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
83578
|
83578
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
85100
|
85100
MB260124
BATTERY
|
MB260124 |
— | ||
|
85100
|
85100
MB286334
BATTERY
|
MB286334 |
— | ||
|
85113A
|
85113A
MN151632 CABLE ASSY, BATTERY WIRING |
MN151632 |
US $176.12 |
||
|
85113A
|
85113A
MR122887 CABLE ASSY, BATTERY WIRING(-) |
MR122887 |
US $214.60 |
||
|
85113A
|
85113A
MR979270
CABLE ASSY,BATTERY WIRING
|
MR979270 |
— | ||
|
85133
|
85133
MR238277 HOLDER, BATTERY175 |
MR238277 |
from US $5.50 |
||
|
85141
|
85141
MR414979 L-BOLT KIT, BATTERY8x238 |
MR414979 |
US $9.58 |
||
|
85141
|
85141
MR414980 L-BOLT KIT, BATTERY8x205 |
MR414980 |
US $6.81 |
||
|
85152
|
85152
MR383497 SEAT, BATTERY |
MR383497 |
US $26.64 |
||
|
85173
|
85173
MK412119
TERMINAL, BATTERY
|
MK412119 |
— | ||
| replacement | |||||
|
85173
|
85173
MU001364 TERMINAL, BATTERYNut position rh |
MU001364 |
from US $12.75 |
||
|
85173
|
85173
MU001364 TERMINAL, BATTERYNut position rh |
MU001364 |
from US $12.75 |
||
|
85173
|
85173
MU800773 TERMINAL, BATTERY(+),618r |
MU800773 |
US $14.65 |
||
|
85173
|
85173
MU800889 TERMINAL, BATTERYNut position rh,(+) |
MU800889 |
US $17.02 |
||
