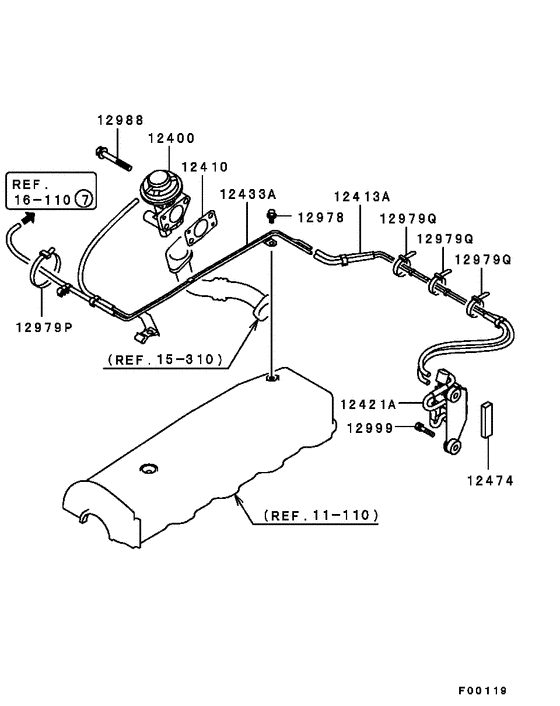

Emission control (EXC ECI) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD126977 VALVE, EGR |
MD126977 |
US $272.23 |
||
|
12410
|
12410
MD072289
GASKET, EGR VALVE
|
MD072289 |
— | ||
| replacement | |||||
|
12410
|
12410
MD300522 GASKET, EGR VALVE |
MD300522 |
from US $1.81 |
||
|
12410
|
12410
MD300522 GASKET, EGR VALVE |
MD300522 |
from US $1.81 |
||
|
12413A
|
12413A
MR212720 HOSE ASSY, EMISSION VACUUM CONTROL |
MR212720 |
US $22.94 |
||
|
12421A
|
12421A
MR226815
VALVE ASSY, EMISSION SOLENOID
|
MR226815 |
— | ||
| replacement | |||||
|
12421A
|
12421A
MR577056 VALVE ASSY, EMISSION SOLENOID |
MR577056 |
US $175.10 |
||
|
12421A
|
12421A
MR577056 VALVE ASSY, EMISSION SOLENOID |
MR577056 |
US $175.10 |
||
|
12433A
|
12433A
MR212719
HOSE & PIPE ASSY, EMISSION CONTROL
|
MR212719 |
— | ||
|
12474
|
12474
MR202662 PAD, 3RD SEAT BELT |
MR202662 |
US $3.26 |
||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
12979P
|
12979P
MD023836 CLAMP, ENG BREATHER250 |
MD023836 |
US $3.70 |
||
|
12979Q
|
12979Q
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12988
|
12988
MD075967 BOLT, EGR EQUIPWasher assembled,8x60 |
MD075967 |
US $5.92 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
11 110
|
Rocker cover
11 110
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
16 110
|
Alternator & vacuum pump
16 110
|
||||
|
16 110
|
Alternator & vacuum pump
16 110
|
||||
