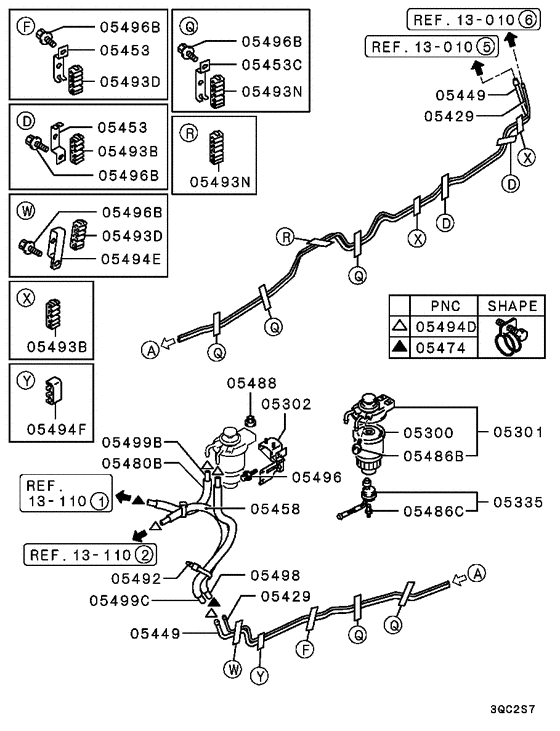

Fuel line & vapor gas control (ALL) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05300
|
05300
MB220900 FUEL FILTER |
MB220900 |
from US $52.40 |
||
|
05301
|
05301
MB129677 BODY, FUEL FILTER |
MB129677 |
from US $78.54 |
||
|
05302
|
05302
MR323051 BRACKET, FUEL FILTER |
MR323051 |
US $27.38 |
||
|
05335
|
05335
MB658726 SENSOR, FUEL FILTER |
MB658726 |
from US $46.98 |
||
|
05429
|
05429
MR431939 PIPE, FUEL RETURN |
MR431939 |
US $50.32 |
||
|
05449
|
05449
MR431938 PIPE, FUEL LINE |
MR431938 |
US $77.70 |
||
|
05453
|
05453
MB433787 CLAMP, FUEL LINE |
MB433787 |
US $6.51 |
||
|
05453C
|
05453C
MR431941 CLAMP, FUEL LINE |
MR431941 |
US $2.81 |
||
|
05458
|
05458
MB044014
TUBE, FUEL RETURN LINE
|
MB044014 |
— | ||
|
05474
|
05474
MS660004 CLAMP, FUEL TANK13 |
MS660004 |
US $2.52 |
||
|
05480B
|
05480B
MB133069 TUBE, FUEL LINESoft vinyl,16x200 |
MB133069 |
US $2.96 |
||
|
05486B
|
05486B
MB247423 PLUG, FUEL LINEBolt |
MB247423 |
US $8.58 |
||
|
05486C
|
05486C
MB248214 PLUG, FUEL LINE |
MB248214 |
US $8.58 |
||
|
05488
|
05488
MB288461 NUT, ENG OIL COOLER LINEFlange self locking,8 |
MB288461 |
US $2.37 |
||
|
05488
|
05488
MD068353 NUT, FUEL LINED=12 |
MD068353 |
from US $1.62 |
||
|
05492
|
05492
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
05493B
|
05493B
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493D
|
05493D
MR373922 CLIP, FUEL LINE |
MR373922 |
US $4.29 |
||
|
05493N
|
05493N
MR373639 CLIP, FUEL LINE |
MR373639 |
US $7.25 |
||
|
05494D
|
05494D
MS661006 CLAMP, ENG SPEED CONTROL EQUIPD=12 |
MS661006 |
US $3.42 |
||
|
05494E
|
05494E
MB433787 CLAMP, FUEL LINE |
MB433787 |
US $6.51 |
||
|
05494E
|
05494E
MB658108 CLAMP, FUEL LINE |
MB658108 |
US $6.51 |
||
|
05494F
|
05494F
MB329774 CLAMP, FUEL LINE |
MB329774 |
US $6.57 |
||
|
05496
|
05496
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05496B
|
05496B
MS240138 BOLT, EMISSION VACUUM CONTROL EQUIPWasher assembled,6x18 |
MS240138 |
US $2.60 |
||
|
05498
|
05498
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05499B
|
05499B
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05499C
|
05499C
MR224244 HOSE, FUEL LINE |
MR224244 |
US $15.54 |
||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 110
|
Fuel injection pump
13 110
|
||||
|
13 110
|
Fuel injection pump
13 110
|
||||
