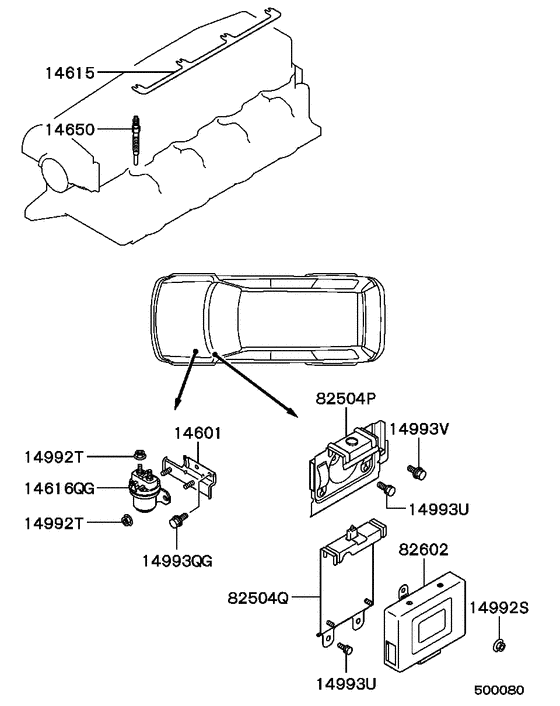

Glow plug & relay Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14601
|
14601
MD323636 BRACKET, GLOW PLUG RELAY |
MD323636 |
US $19.98 |
||
|
14615
|
14615
MD343482 PLATE, GLOW PLUG CONNECTING |
MD343482 |
US $4.65 |
||
|
14616QG
|
14616QG
MD337888 RELAY, GLOW PLUG CONTROL |
MD337888 |
from US $103.72 |
||
|
14650
|
14650
MD344469 GLOW PLUG |
MD344469 |
US $96.94 |
||
|
14650
|
14650
MR577131 GLOW PLUG |
MR577131 |
from US $50.51 |
||
|
14992S
|
14992S
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
14992T
|
14992T
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
14993QG
|
14993QG
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
14993U
|
14993U
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
14993V
|
14993V
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
14993V
|
14993V
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
82504P
|
82504P
MR141365 BRACKET, ENG CONTROL MODULATOR |
MR141365 |
US $14.21 |
||
|
82504Q
|
82504Q
MD330480 BRACKET, GLOW CONTROL UNIT |
MD330480 |
US $50.32 |
||
|
82602
|
82602
MD354511 CONTROL UNIT,GLOW PLUG |
MD354511 |
US $1,071.62 |
||
