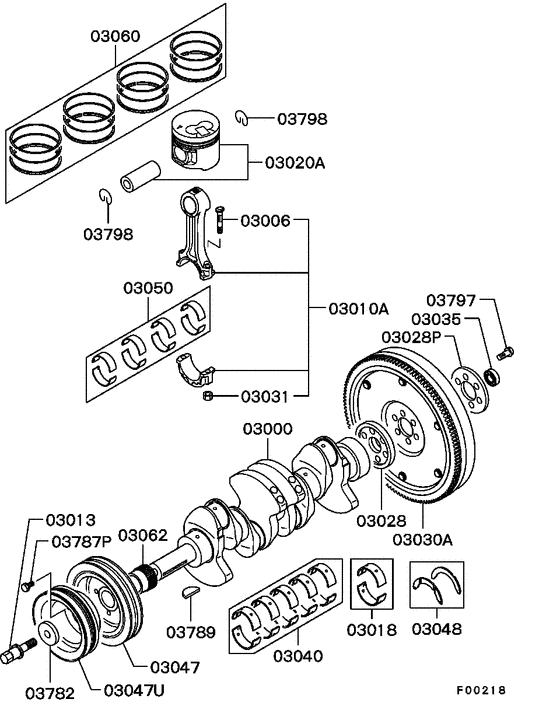

Piston & crankshaft (0107.1- ECI) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD102601
CRANKSHAFT
|
MD102601 |
— | ||
| replacement | |||||
|
03000
|
03000
MD376960 CRANKSHAFT |
MD376960 |
from US $1,237.98 |
||
|
03000
|
03000
MD374409 CRANKSHAFT |
MD374409 |
US $1,944 |
||
|
03000
|
03000
MD376961
CRANKSHAFT
|
MD376961 |
— | ||
| replacement | |||||
|
03000
|
03000
MD376960 CRANKSHAFT |
MD376960 |
from US $1,237.98 |
||
|
03006
|
03006
MD021105 BOLT, CONNROD9x57.5 |
MD021105 |
from US $5.71 |
||
|
03010A
|
03010A
MD050006 CONNECTING ROD ASSY |
MD050006 |
US $212.04 |
||
|
03013
|
03013
MD050356 CENTER BOLT, CRANKSHAFT PULLEY14x44 |
MD050356 |
from US $6.26 |
||
|
03013
|
03013
MD062109 CENTER BOLT, CRANKSHAFT PULLEY14x44 |
MD062109 |
from US $5.91 |
||
|
03018
|
03018
1052A468 CRANKSHAFT BEARING (GREEN) |
1052A468 |
from US $20.30 |
||
|
03018
|
03018
1052A469 CRANKSHAFT BEARING (YELLOW) |
1052A469 |
from US $23.19 |
||
|
03018
|
03018
1052A470 CRANKSHAFT BEARING (NO COLOR) |
1052A470 |
from US $21.47 |
||
|
03018
|
03018
1052A471 CRANKSHAFT BEARING (BLUE) |
1052A471 |
from US $21.31 |
||
|
03018
|
03018
1052A472 CRANKSHAFT BEARING (RED) |
1052A472 |
from US $22.04 |
||
|
03018
|
03018
MD310665 BEARING, CRANKSHAFTPlain,std 1 |
MD310665 |
US $50.32 |
||
| replacement | |||||
|
03018
|
03018
1052A468 CRANKSHAFT BEARING (GREEN) |
1052A468 |
from US $20.30 |
||
|
03018
|
03018
MD310666 BEARING, CRANKSHAFTPlain,std 2 |
MD310666 |
US $50.32 |
||
| replacement | |||||
|
03018
|
03018
1052A469 CRANKSHAFT BEARING (YELLOW) |
1052A469 |
from US $23.19 |
||
|
03018
|
03018
MD310667 BEARING, CRANKSHAFTPlain,std 3 |
MD310667 |
US $50.32 |
||
| replacement | |||||
|
03018
|
03018
1052A470 CRANKSHAFT BEARING (NO COLOR) |
1052A470 |
from US $21.47 |
||
|
03018
|
03018
MD310668 BEARING, CRANKSHAFTPlain,std 4 |
MD310668 |
US $50.32 |
||
| replacement | |||||
|
03018
|
03018
1052A471 CRANKSHAFT BEARING (BLUE) |
1052A471 |
from US $21.31 |
||
|
03018
|
03018
MD310669 BEARING, CRANKSHAFTPlain,std 5 |
MD310669 |
US $50.32 |
||
| replacement | |||||
|
03018
|
03018
1052A472 CRANKSHAFT BEARING (RED) |
1052A472 |
from US $22.04 |
||
|
03020A
|
03020A
MD304852 PISTON & PIN ASSYStd a |
MD304852 |
US $257.18 |
||
|
03020A
|
03020A
MD304853 PISTON & PIN ASSYStd b |
MD304853 |
US $223.48 |
||
|
03020A
|
03020A
MD304854 PISTON & PIN ASSYStd c |
MD304854 |
US $223.48 |
||
|
03020A
|
03020A
MD304858 PISTON & PIN ASSYStd a |
MD304858 |
US $223.48 |
||
|
03020A
|
03020A
MD304859 PISTON & PIN ASSYStd b |
MD304859 |
US $223.48 |
||
|
03020A
|
03020A
MD304860 PISTON & PIN ASSYStd c |
MD304860 |
US $223.48 |
||
|
03020A
|
03020A
MD308461 PISTON & PIN ASSYO/size 0.50 |
MD308461 |
US $223.48 |
||
|
03020A
|
03020A
MD308463 PISTON & PIN ASSYO/size 1.00 |
MD308463 |
US $176.12 |
||
|
03020A
|
03020A
MD308469 PISTON & PIN ASSYO/size 0.50 |
MD308469 |
US $223.48 |
||
|
03020A
|
03020A
MD308471 PISTON & PIN ASSYO/size 1.00 |
MD308471 |
US $176.12 |
||
|
03020A
|
03020A
MD367637 PISTON & PIN ASSY1&3 |
MD367637 |
US $167.24 |
||
|
03020A
|
03020A
MD367638 PISTON & PIN ASSY1&3 |
MD367638 |
from US $154.58 |
||
|
03020A
|
03020A
MD367639 PISTON & PIN ASSY1&3 |
MD367639 |
US $167.24 |
||
|
03020A
|
03020A
MD367643 PISTON & PIN ASSY2&4 |
MD367643 |
from US $167.24 |
||
|
03020A
|
03020A
MD367644 PISTON & PIN ASSY2&4 |
MD367644 |
from US $140.24 |
||
|
03020A
|
03020A
MD367645 PISTON & PIN ASSY2&4 |
MD367645 |
US $167.24 |
||
|
03020A
|
03020A
MD367649 PISTON & PIN ASSY1&3 |
MD367649 |
from US $117.25 |
||
|
03020A
|
03020A
MD367650 PISTON & PIN ASSY1&3 |
MD367650 |
from US $115.79 |
||
|
03020A
|
03020A
MD367653 PISTON & PIN ASSY2&4 |
MD367653 |
US $139.54 |
||
|
03020A
|
03020A
MD367654 PISTON & PIN ASSY2&4 |
MD367654 |
from US $115.79 |
||
|
03028
|
03028
MD345246
ADAPTER,FLYWHEEL
|
MD345246 |
— | ||
|
03028P
|
03028P
MD349946
ADAPTER,FLYWHEEL
|
MD349946 |
— | ||
|
03030A
|
03030A
MD349906 FLYWHEEL ASSY |
MD349906 |
US $394.58 |
||
|
03030A
|
03030A
MD374117 FLYWHEEL ASSY |
MD374117 |
US $326.14 |
||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03031
|
03031
MD355954 NUT, CONNROD9 |
MD355954 |
from US $1.37 |
||
|
03035
|
03035
1122A011 BEARING,FLYWHEEL DRIVE PINION |
1122A011 |
US $11.04 |
||
|
03035
|
03035
MD343636
BEARING,FLYWHEEL DRIVE PINION
|
MD343636 |
— | ||
| replacement | |||||
|
03035
|
03035
1122A011 BEARING,FLYWHEEL DRIVE PINION |
1122A011 |
US $11.04 |
||
|
03040
|
03040
MD050361
BEARING SET, CRANKSHAFT
|
MD050361 |
— | ||
|
03040
|
03040
MD050362 BEARING SET, CRANKSHAFT |
MD050362 |
US $240.77 |
||
|
03040
|
03040
MD050363 BEARING SET, CRANKSHAFT |
MD050363 |
US $260.48 |
||
|
03040
|
03040
MD374821 BEARING SET,CRANKSHAFT |
MD374821 |
US $236.80 |
||
|
03040
|
03040
MD374822 BEARING SET,CRANKSHAFT |
MD374822 |
US $236.80 |
||
|
03040
|
03040
MD374823 BEARING SET,CRANKSHAFT |
MD374823 |
US $236.80 |
||
|
03047
|
03047
MD110165 PULLEY, CRANKSHAFTV-ditch |
MD110165 |
from US $235.63 |
||
|
03047U
|
03047U
MD304557 PULLEY, CRANKSHAFTV-ditch |
MD304557 |
from US $89.17 |
||
|
03048
|
03048
MD374820 THRUST BEARING SET, CRANKSHAFT |
MD374820 |
from US $5.13 |
||
|
03050
|
03050
1115A111 BEARING SET, CONNROD |
1115A111 |
from US $53.80 |
||
|
03050
|
03050
MD361500
BEARING SET, CONNROD
|
MD361500 |
— | ||
| replacement | |||||
|
03050
|
03050
1115A111 BEARING SET, CONNROD |
1115A111 |
from US $53.80 |
||
|
03050
|
03050
MD361501 BEARING SET, CONNRODU/size 0.25 |
MD361501 |
from US $69.65 |
||
|
03050
|
03050
MD361502 BEARING SET, CONNRODU/size 0.50 |
MD361502 |
US $135.43 |
||
|
03050
|
03050
MD361503 BEARING SET, CONNRODU/size 0.75 |
MD361503 |
US $146.52 |
||
|
03060
|
03060
MD168293 RING SET, PISTONStd |
MD168293 |
from US $186.42 |
||
|
03060
|
03060
MD168295 RING SET, PISTONO/size 0.50 |
MD168295 |
from US $206.47 |
||
|
03060
|
03060
MD168297 RING SET, PISTONO/size 1.00 |
MD168297 |
US $245.68 |
||
|
03062
|
03062
MD099211 SLEEVE, CRANKSHAFT OIL PUMP DRIVE GEAR |
MD099211 |
from US $26.03 |
||
|
03782
|
03782
MD050359 WASHER, CRANKSHAFT PULLEYPlain,14.5 |
MD050359 |
from US $5.73 |
||
|
03787P
|
03787P
MS240210 BOLT, CRANKSHAFT PULLEYWasher assembled,8x16 |
MS240210 |
from US $1.93 |
||
|
03789
|
03789
MD000606 KEY, TIMING BELT TRAINWoodruff,5x9.6 |
MD000606 |
from US $2.26 |
||
|
03797
|
03797
MD122836 BOLT, FLYWHEELFlange,12x32.4 |
MD122836 |
from US $4.02 |
||
|
03798
|
03798
MD050018 SNAP RING, PISTON |
MD050018 |
from US $1.93 |
||
