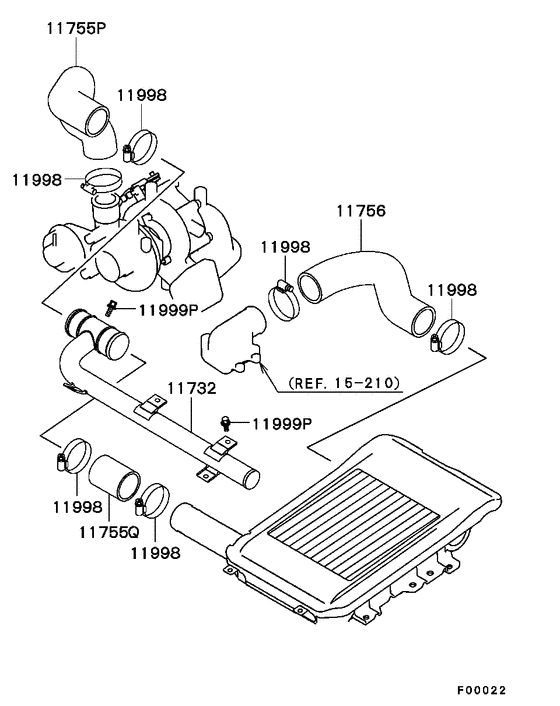

Turbocharger & supercharger (ECI (INTER COOLER INTAKE LINE)) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 2001 - 2004
- Sales region
- EUR
- Note
- GLX(EURO2),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11732
|
11732
MR160819 TUBE, INTER COOLER BRANCH AIR |
MR160819 |
US $54.76 |
||
|
11755P
|
11755P
MR239611 HOSE, INTER COOLER INTAKE AIR |
MR239611 |
US $83.62 |
||
|
11755Q
|
11755Q
MR239612 HOSE, INTER COOLER INTAKE AIR |
MR239612 |
US $17.76 |
||
|
11756
|
11756
MR239614
HOSE, INTER COOLER OUTLET AIR
|
MR239614 |
— | ||
|
11998
|
11998
MD140823 CLAMP, ENG AIR INTAKE LINE58 |
MD140823 |
from US $4.68 |
||
|
11999P
|
11999P
MF244823 BOLT, 6x14Washer assembled,6x14 |
MF244823 |
US $3.01 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
