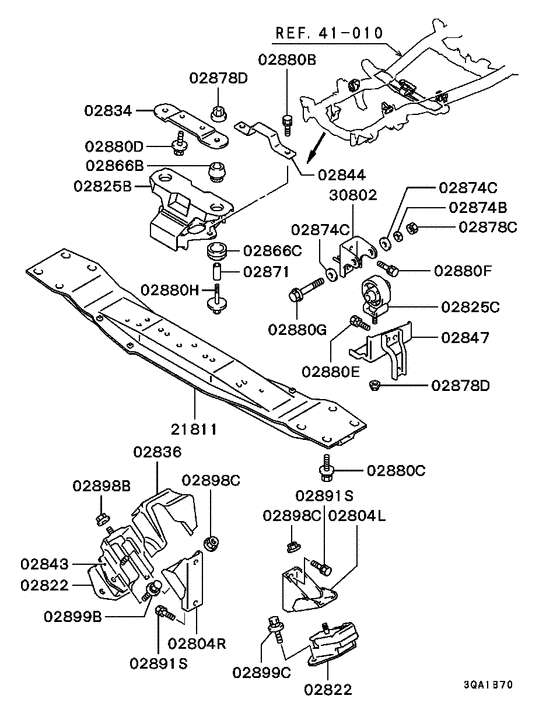

Engine mounting & support (A/T) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- Z,4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD310727 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD310727 |
US $41.72 |
||
|
02804R
|
02804R
MD310726 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD310726 |
US $41.04 |
||
|
02822
|
02822
MR210868
CUSHION, CROSSMEMBER ENG MOUNTING
|
MR210868 |
— | ||
|
02822
|
02822
MR210871 CUSHION, CROSSMEMBER ENG MOUNTING |
MR210871 |
from US $60.68 |
||
|
02825B
|
02825B
MR267627 CUSHION, ENG RR MOUNTING |
MR267627 |
US $126.54 |
||
|
02825C
|
02825C
MR267864 CUSHION, ENG RR MOUNTING |
MR267864 |
from US $41.65 |
||
|
02834
|
02834
MR267630 PLATE, ENG RR CUSHION STOPPER |
MR267630 |
US $22.94 |
||
|
02836
|
02836
MB309602 PROTECTOR, ENG FR MOUNTING HEAT |
MB309602 |
US $10.66 |
||
|
02836
|
02836
MB581240 PROTECTOR, ENG FR MOUNTING HEAT, RH |
MB581240 |
US $21.89 |
||
|
02843
|
02843
MR210226 STOPPER, ENG FR MOUNTING CUSHION |
MR210226 |
US $23.94 |
||
|
02844
|
02844
MR267631 STOPPER, ENG RR MOUNTING CUSHION |
MR267631 |
US $11.69 |
||
|
02847
|
02847
MR151580 PLATE, T/M MOUNTING CUSHION SUPPORT |
MR151580 |
US $51.30 |
||
|
02866B
|
02866B
MR267959 BUSHING, ENG RR MOUNTING |
MR267959 |
from US $4.66 |
||
|
02866C
|
02866C
MR267958 BUSHING, ENG RR MOUNTING |
MR267958 |
from US $4.58 |
||
|
02871
|
02871
MB518754 COLLAR, FR AXLE CROSSMEMBER |
MB518754 |
from US $4.54 |
||
|
02874B
|
02874B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02874C
|
02874C
MB007174 WASHER, ENG SUPPORT RODPlain,10.5 |
MB007174 |
from US $2.05 |
||
|
02878C
|
02878C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $1.05 |
||
|
02878D
|
02878D
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.38 |
||
|
02880B
|
02880B
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.33 |
||
|
02880C
|
02880C
MF244905 BOLT, ENG RR MOUNTINGWasher assembled,12x25 |
MF244905 |
from US $1.11 |
||
|
02880D
|
02880D
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.17 |
||
|
02880E
|
02880E
MS240090 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MS240090 |
from US $2.11 |
||
|
02880F
|
02880F
MF240078 BOLT, ENG RR MOUNTINGWasher assembled,10x16 |
MF240078 |
from US $1.01 |
||
|
02880G
|
02880G
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.32 |
||
|
02880H
|
02880H
MR234562 BOLT, ENG RR MOUNTINGWasher assembled,10x65 |
MR234562 |
US $4.74 |
||
|
02891S
|
02891S
MS240222 BOLT, ENG MOUNTINGWasher assembled,10x22 |
MS240222 |
US $2.37 |
||
|
02898B
|
02898B
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.49 |
||
|
02898C
|
02898C
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.38 |
||
|
02899B
|
02899B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.07 |
||
|
02899C
|
02899C
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.07 |
||
|
21811
|
21811
MR267632
CROSSMEMBER, T/M MOUNTING
|
MR267632 |
— | ||
| replacement | |||||
|
21811
|
21811
MR319365 CROSSMEMBER, T/M MOUNTING |
MR319365 |
US $187.42 |
||
|
30802
|
30802
MR133093 BRACKET, T/F MOUNTING |
MR133093 |
US $31.08 |
||
|
41 010
|
Chassis frame
41 010
|
||||
|
41 010
|
Chassis frame
41 010
|
||||
