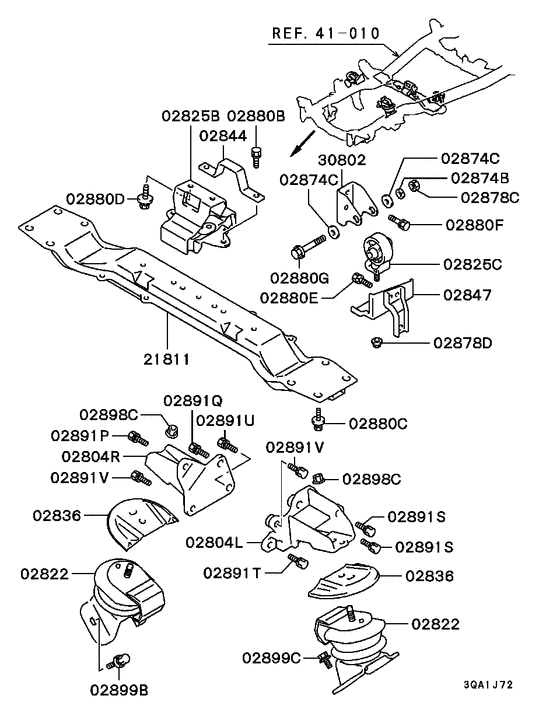

Engine mounting & support (ALL) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1997 - 2001
- Sales region
- Japan
- Note
- XR(WIDE),5FA/T
- drive
- 4WD
- transmission
- 5FA/T
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD347078 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD347078 |
US $79.18 |
||
|
02804R
|
02804R
MD350775 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD350775 |
US $79.18 |
||
|
02822
|
02822
MR319856 CUSHION, CROSSMEMBER ENG MOUNTING |
MR319856 |
US $173.74 |
||
|
02825B
|
02825B
MR353128
CUSHION, ENG RR MOUNTING
|
MR353128 |
— | ||
|
02825C
|
02825C
MR267864 CUSHION, ENG RR MOUNTING |
MR267864 |
from US $41.65 |
||
|
02836
|
02836
MR319964 PROTECTOR, ENG FR MOUNTING HEAT |
MR319964 |
US $16.28 |
||
|
02844
|
02844
MR319620 PLATE, ENG RR CUSHION STOPPER |
MR319620 |
US $11.40 |
||
|
02847
|
02847
MR267917 SUPPORT, ENG RR MOUNTING |
MR267917 |
US $19.24 |
||
|
02874B
|
02874B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.45 |
||
|
02874C
|
02874C
MB007174 WASHER, ENG SUPPORT RODPlain,10.5 |
MB007174 |
from US $2.05 |
||
|
02878C
|
02878C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $1.05 |
||
|
02878D
|
02878D
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.38 |
||
|
02880B
|
02880B
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.07 |
||
|
02880C
|
02880C
MF244905 BOLT, ENG RR MOUNTINGWasher assembled,12x25 |
MF244905 |
from US $1.11 |
||
|
02880D
|
02880D
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.17 |
||
|
02880E
|
02880E
MS240090 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MS240090 |
from US $2.11 |
||
|
02880F
|
02880F
MF240078 BOLT, ENG RR MOUNTINGWasher assembled,10x16 |
MF240078 |
from US $1.01 |
||
|
02880G
|
02880G
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.32 |
||
|
02891P
|
02891P
MF301342 BOLT, ENG MOUNTINGWasher assembled,10x22 |
MF301342 |
US $3.70 |
||
|
02891Q
|
02891Q
MF301366 BOLT, ENG RR PLATEWasher assembled,12x25 |
MF301366 |
US $4.14 |
||
|
02891S
|
02891S
MF301372 BOLT, T/M CONNECTINGWasher assembled,12x40 |
MF301372 |
US $3.97 |
||
|
02891T
|
02891T
MF301343 BOLT, ENG MOUNTINGWasher assembled,10x25 |
MF301343 |
US $3.26 |
||
|
02891U
|
02891U
MF301368
BOLT, ENG MOUNTING
|
MF301368 |
— | ||
|
02891V
|
02891V
MF301349
BOLT, ENG MOUNTING
|
MF301349 |
— | ||
|
02898C
|
02898C
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.38 |
||
|
02899B
|
02899B
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.03 |
||
|
02899C
|
02899C
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.03 |
||
|
21811
|
21811
MR267910 CROSSMEMBER, T/M MOUNTING |
MR267910 |
US $183.52 |
||
|
30802
|
30802
MR353129 BRACKET, T/F MOUNTING |
MR353129 |
US $20.72 |
||
|
41 010
|
Chassis frame
41 010
|
||||
|
41 010
|
Chassis frame
41 010
|
||||
