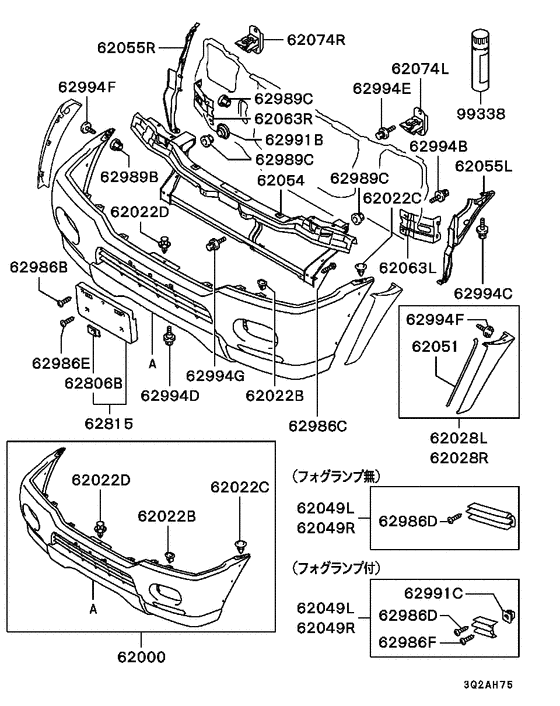

Front bumper & support (9905.1-) Diagram Mitsubishi PAJERO/MONTERO SPORT
- Year
- 1997 - 2001
- Sales region
- Japan
- Note
- XR(WIDE),5FA/T
- drive
- 4WD
- transmission
- 5FA/T
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MR296515 FACE KIT, FR BUMPER |
MR296515 |
US $902.72 |
||
|
62000
|
62000
MR296525 FACE KIT, FR BUMPER |
MR296525 |
US $902.72 |
||
|
62000
|
62000
MR296540 FACE KIT, FR BUMPER |
MR296540 |
US $902.72 |
||
|
62000
|
62000
MR296545 FACE KIT, FR BUMPER |
MR296545 |
US $875.06 |
||
|
62000
|
62000
MR496721 FACE KIT, FR BUMPER |
MR496721 |
US $678.50 |
||
|
62000
|
62000
MR496722 FACE KIT, FR BUMPER |
MR496722 |
US $678.50 |
||
|
62000
|
62000
MR496723 FACE KIT, FR BUMPER |
MR496723 |
US $678.50 |
||
|
62000
|
62000
MR508239 FACE KIT, FR BUMPER |
MR508239 |
US $678.50 |
||
|
62000
|
62000
MR508240 FACE KIT, FR BUMPER |
MR508240 |
US $678.50 |
||
|
62000
|
62000
MR508241 FACE KIT, FR BUMPER |
MR508241 |
US $678.50 |
||
|
62000
|
62000
MR508346 FACE KIT, FR BUMPER |
MR508346 |
US $678.50 |
||
|
62000
|
62000
MR508348 FACE KIT, FR BUMPER |
MR508348 |
US $678.50 |
||
|
62000
|
62000
MR508515 FACE KIT, FR BUMPER |
MR508515 |
US $678.50 |
||
|
62000
|
62000
MR508516 FACE KIT, FR BUMPER |
MR508516 |
US $678.50 |
||
|
62022B
|
62022B
MB121032 CLIP, FR BUMPER9x11 |
MB121032 |
from US $3.03 |
||
|
62022C
|
62022C
MU481042 CLIP, HEATER5.8 |
MU481042 |
from US $1.23 |
||
|
62022D
|
62022D
MR328954 CLIP, SPLASH SHIELD8x22 |
MR328954 |
from US $1.31 |
||
|
62028L
|
62028L
MR606400 EXTENSION, FR BUMPER, LH |
MR606400 |
from US $62.20 |
||
|
62028L
|
62028L
MR606401 EXTENSION, FR BUMPER, LH |
MR606401 |
from US $69.56 |
||
|
62028L
|
62028L
MR607473 EXTENSION, FR BUMPER, LH |
MR607473 |
US $69.56 |
||
|
62028L
|
62028L
MR607476 EXTENSION, FR BUMPER, LH |
MR607476 |
US $69.56 |
||
|
62028L
|
62028L
MR610194 EXTENSION, FR BUMPER, LH |
MR610194 |
US $69.56 |
||
|
62028L
|
62028L
MR763614 EXTENSION, FR BUMPER, LH |
MR763614 |
US $87.55 |
||
|
62028R
|
62028R
MR606402 EXTENSION, FR BUMPER, RH |
MR606402 |
from US $69.12 |
||
|
62028R
|
62028R
MR606403 EXTENSION, FR BUMPER, RH |
MR606403 |
US $69.56 |
||
|
62028R
|
62028R
MR607477 EXTENSION, FR BUMPER, RH |
MR607477 |
US $69.56 |
||
|
62028R
|
62028R
MR607480 EXTENSION, FR BUMPER, RH |
MR607480 |
US $69.56 |
||
|
62028R
|
62028R
MR610195 EXTENSION, FR BUMPER, RH |
MR610195 |
US $69.56 |
||
|
62028R
|
62028R
MR763617 EXTENSION, FR BUMPER, RH |
MR763617 |
US $87.55 |
||
|
62049L
|
62049L
MR496691 GRILLE, FR BUMPER, LH |
MR496691 |
US $18.50 |
||
|
62049R
|
62049R
MR496692 GRILLE, FR BUMPER, RH |
MR496692 |
from US $18.50 |
||
|
62051
|
62051
MR606315 PROTECTOR, FR BUMPER EDGE353 |
MR606315 |
US $10.95 |
||
|
62051
|
62051
MR606316 PROTECTOR, FR BUMPER EDGE353 |
MR606316 |
US $11.49 |
||
|
62051
|
62051
MR607467 PROTECTOR, FR BUMPER EDGE353 |
MR607467 |
US $11.49 |
||
|
62051
|
62051
MR607468 PROTECTOR, FR BUMPER EDGE353 |
MR607468 |
from US $10.95 |
||
|
62051
|
62051
MR610193 PROTECTOR, FR BUMPER EDGE353 |
MR610193 |
US $10.95 |
||
|
62051
|
62051
MR772639 PROTECTOR, FR BUMPER EDGE |
MR772639 |
US $34.78 |
||
|
62054
|
62054
MR371691 REINFORCEMENT, FR BUMPER |
MR371691 |
US $273.80 |
||
|
62054
|
62054
MR371692 REINFORCEMENT, FR BUMPER |
MR371692 |
US $284.16 |
||
|
62054
|
62054
MR478717 REINFORCEMENT, FR BUMPER |
MR478717 |
US $211.64 |
||
|
62055L
|
62055L
MR242427 REINFORCEMENT, FR BUMPER SIDE, LH |
MR242427 |
US $65.12 |
||
|
62055L
|
62055L
MR478681 REINFORCEMENT, FR BUMPER SIDE, LH |
MR478681 |
from US $47.88 |
||
|
62055R
|
62055R
MR242428 REINFORCEMENT, FR BUMPER SIDE, RH |
MR242428 |
US $60.88 |
||
|
62055R
|
62055R
MR478682 REINFORCEMENT, FR BUMPER SIDE, RH |
MR478682 |
from US $51.06 |
||
|
62063L
|
62063L
MR242623 STAY, FR BUMPER, LH |
MR242623 |
from US $29.41 |
||
|
62063R
|
62063R
MR242624 STAY, FR BUMPER, RH |
MR242624 |
from US $29.41 |
||
|
62074L
|
62074L
MR259971 SUPPORT, FR BUMPER, LH |
MR259971 |
US $66.60 |
||
|
62074R
|
62074R
MR259972 SUPPORT, FR BUMPER, RH |
MR259972 |
US $66.60 |
||
|
62806B
|
62806B
MB325163 BRACKET, FR LICENSE PLATE |
MB325163 |
from US $3.32 |
||
|
62815
|
62815
MR478719 GARNISH, FR LICENSE PLATE |
MR478719 |
US $30.34 |
||
|
62986B
|
62986B
MS200130 SCREW, QTR WINDOWMachine tapping,6x16 |
MS200130 |
US $3.69 |
||
|
62986C
|
62986C
MF453045 SCREW, FUEL FILLER LID LOCKINGWasher assembled,6x12 |
MF453045 |
US $2.19 |
||
|
62986D
|
62986D
MF453077 SCREW, ENG AIR INTAKE LINETapping,4x12 |
MF453077 |
from US $1.91 |
||
|
62986E
|
62986E
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.91 |
||
|
62986F
|
62986F
MF453077 SCREW, ENG AIR INTAKE LINETapping,4x12 |
MF453077 |
from US $1.91 |
||
|
62986F
|
62986F
MF453079 SCREW, FR FENDERTapping,4x16 |
MF453079 |
from US $1.50 |
||
|
62989B
|
62989B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.38 |
||
|
62989C
|
62989C
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.68 |
||
|
62991B
|
62991B
MR237645 GROMMET, FLOOR |
MR237645 |
from US $3.55 |
||
|
62991C
|
62991C
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.13 |
||
|
62994B
|
62994B
MF247891 BOLT, ENG FR MOUNTINGWasher assembled,8x20 |
MF247891 |
US $2.19 |
||
|
62994C
|
62994C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
US $2.74 |
||
|
62994D
|
62994D
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.90 |
||
|
62994D
|
62994D
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.94 |
||
|
62994E
|
62994E
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
US $4.38 |
||
|
62994F
|
62994F
MU103002 BOLT, RR BUMPERStop,6x20 |
MU103002 |
from US $1.85 |
||
|
62994G
|
62994G
MS240158 BOLT, FUEL TANKWasher assembled,8x20 |
MS240158 |
US $3.69 |
||
|
62994G
|
62994G
MS240180 BOLT, FR BUMPERWasher assembled,8x20 |
MS240180 |
from US $0.35 |
||
|
99338
|
99338
MZ101845
TOUCH-UP PAINT
|
MZ101845 |
— | ||
|
99338
|
99338
MZ101902
TOUCH-UP PAINT
|
MZ101902 |
— | ||
|
99338
|
99338
MZ101911 TOUCH-UP PAINT |
MZ101911 |
US $10.36 |
||
|
99338
|
99338
MZ101927 TOUCH-UP PAINT |
MZ101927 |
US $9.58 |
||
|
99338
|
99338
MZ101971 TOUCH-UP PAINT (Only within Japan)Поставка только по Японии |
MZ101971 |
US $10.36 |
||
|
99338
|
99338
MZ101976 TOUCH-UP PAINT |
MZ101976 |
US $10.36 |
||
|
99338
|
99338
MZ101978 TOUCH-UP PAINT |
MZ101978 |
US $10.36 |
||
|
99338
|
99338
MZ101979 TOUCH-UP PAINT |
MZ101979 |
US $10.36 |
||
|
99338
|
99338
MZ101992 TOUCH-UP PAINT |
MZ101992 |
US $10.36 |
||
|
99338
|
99338
MZ102001 TOUCH-UP PAINT |
MZ102001 |
US $10.36 |
||
|
99338
|
99338
MZ103004
TOUCH-UP PAINT
|
MZ103004 |
— |
