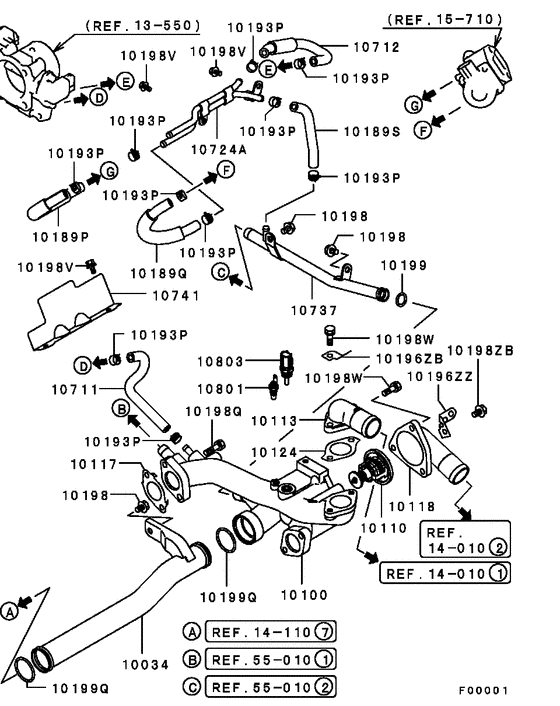

Water pipe & thermostat (ALL) Diagram Mitsubishi PROUDIA
- Year
- 1999 - 2001
- Sales region
- Japan
- Note
- TYPE-B,5FA/T
- transmission
- 5FA/T
- grade
- TYPE-B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD354248 PIPE, WATER PUMP INLET |
MD354248 |
US $115.44 |
||
|
10100
|
10100
MD354247 CASE, THERMOSTAT |
MD354247 |
US $292.66 |
||
|
10110
|
10110
MD351495 THERMOSTAT KIT85 |
MD351495 |
US $43.66 |
||
|
10113
|
10113
MD351101 FITTING, COOLING WATER OUTLET HOSE |
MD351101 |
US $31.82 |
||
|
10117
|
10117
MD319539 GASKET, THERMOSTAT CASE |
MD319539 |
from US $6.26 |
||
|
10118
|
10118
MD348684 FITTING, COOLING WATER INLET HOSE |
MD348684 |
US $35.52 |
||
|
10124
|
10124
MD165017 GASKET, COOLING WATER OUTLET HOSE FITTING |
MD165017 |
US $8.07 |
||
|
10189P
|
10189P
MD349424 HOSE, COOLING WATER LINE |
MD349424 |
US $12.14 |
||
|
10189Q
|
10189Q
MD349423 HOSE, COOLING WATER LINE |
MD349423 |
US $17.76 |
||
|
10189S
|
10189S
MD360241 HOSE, COOLING WATER LINE |
MD360241 |
US $8.88 |
||
|
10193P
|
10193P
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10196ZB
|
10196ZB
MR507457 BRACKET, COOLING WATER LINE |
MR507457 |
US $2.37 |
||
|
10196ZZ
|
10196ZZ
MD354360 BRACKET, COOLING WATER LINE |
MD354360 |
US $2.37 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198Q
|
10198Q
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
10198V
|
10198V
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
10198W
|
10198W
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
10198ZB
|
10198ZB
MF140221 BOLT, ROCKER COVERFlange,8x12 |
MF140221 |
from US $0.90 |
||
|
10199
|
10199
MD030763 O-RING, COOLING WATER LINE |
MD030763 |
from US $2.26 |
||
|
10199Q
|
10199Q
MD147332 O-RING, COOLING WATER LINE35.1 |
MD147332 |
from US $3.18 |
||
|
10711
|
10711
MD360239 HOSE, THROTTLE BODY WATER FEED |
MD360239 |
US $13.91 |
||
|
10712
|
10712
MD360240 HOSE, THROTTLE BODY WATER RETURN |
MD360240 |
US $13.91 |
||
|
10724A
|
10724A
MD360238 PIPE ASSY, THROTTLE BODY WATER FEED & RETURN |
MD360238 |
US $32.56 |
||
|
10737
|
10737
MD348685 PIPE, ENG HEATER WATER RETURN |
MD348685 |
US $54.02 |
||
|
10741
|
10741
MD371527 PROTECTOR, EGR WATER HOSE |
MD371527 |
US $58.46 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD182467
SENSOR UNIT, WATER TEMPERATURE
|
MD182467 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
