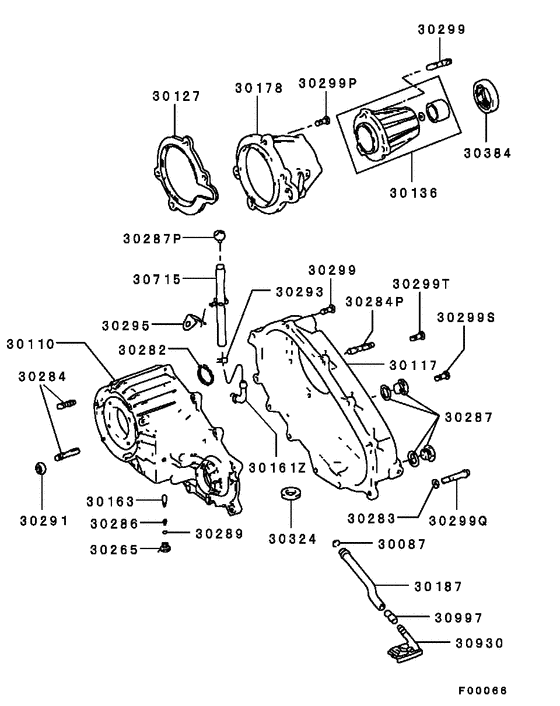

Transfer case (4.7L (T/F CASE)) Diagram Mitsubishi RAIDER
- Year
- 2005 - 2006
- Sales region
- MMNA/CHRYSLER
- Note
- 4.7L(V8)/DUROCROSS/4WD/EXT-CAB,5AT FED
- drive
- 4WD/4WD
- grade
- DUROCROSS/EXT-C
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30087
|
30087
04338942
O-RING,T/F
|
04338942 |
— | ||
|
30110
|
30110
05159198AA
CASE,T/F CHAIN
|
05159198AA |
— | ||
|
30117
|
30117
05086041AA
COVER,T/F CHAIN CASE
|
05086041AA |
— | ||
|
30127
|
30127
05086042AA
GASKET,T/F CHAIN CASE COVER
|
05086042AA |
— | ||
|
30136
|
30136
05019025AA
HOUSING,T/F EXTENSION
|
05019025AA |
— | ||
|
30161Z
|
30161Z
04796910
JOINT,T/F CASE ADAPTER BREATHER
|
04796910 |
— | ||
|
30163
|
30163
53008217
PLUNGER,T/F CASE
|
53008217 |
— | ||
|
30178
|
30178
04897956AA
ADAPTER,T/F CASE TO EXTENSION HOUSING
|
04897956AA |
— | ||
|
30187
|
30187
04338941
TUBE,T/F CASE OIL
|
04338941 |
— | ||
|
30265
|
30265
04886473AA
BOLT,T/F
|
04886473AA |
— | ||
|
30282
|
30282
04219065
SNAP RING,T/F
|
04219065 |
— | ||
|
30283
|
30283
04210983
WASHER,T/F CASE
|
04210983 |
— | ||
|
30283
|
30283
83503512
WASHER,T/F GEARSHIFT LINK
|
83503512 |
— | ||
|
30284
|
30284
04505365
STUD,T/F CASE
|
04505365 |
— | ||
|
30284P
|
30284P
05222757
STUD,T/F CASE
|
05222757 |
— | ||
|
30284P
|
30284P
06501289
STUD,T/F CASE
|
06501289 |
— | ||
|
30286
|
30286
05019538AA
SPRING,T/F CASE
|
05019538AA |
— | ||
|
30287
|
30287
04856641
PLUG,T/F CASE
|
04856641 |
— | ||
|
30287P
|
30287P
04796910
JOINT,T/F CASE ADAPTER BREATHER
|
04796910 |
— | ||
|
30289
|
30289
04338956
O-RING,T/F CASE
|
04338956 |
— | ||
|
30291
|
30291
06033172
NUT,T/F CASE
|
06033172 |
— | ||
|
30293
|
30293
06502081
CLAMP,T/F CASE
|
06502081 |
— | ||
|
30295
|
30295
04294036
CLIP,BRAKE PEDAL
|
04294036 |
— | ||
|
30299
|
30299
04210617
BOLT,T/F CASE
|
04210617 |
— | ||
|
30299P
|
30299P
06501371
BOLT,T/F
|
06501371 |
— | ||
|
30299Q
|
30299Q
04116310
PIN,T/F CASE
|
04116310 |
— | ||
|
30299S
|
30299S
04210614
BOLT,T/F CASE
|
04210614 |
— | ||
|
30299T
|
30299T
05016563AA
BOLT,T/F CASE
|
05016563AA |
— | ||
|
30324
|
30324
03681601
MAGNET,A/T OIL PAN
|
03681601 |
— | ||
|
30384
|
30384
04210603
OIL SEAL,T/F RR OUTPUT SHAFT
|
04210603 |
— | ||
|
30384
|
30384
05019026AA
OIL SEAL,T/F RR OUTPUT SHAFT
|
05019026AA |
— | ||
|
30715
|
30715
HFV00516AB
HOSE,T/F BREATHER
|
HFV00516AB |
— | ||
|
30930
|
30930
04338943
OIL FILTER,T/F
|
04338943 |
— | ||
|
30997
|
30997
04338944
JOINT,T/F OIL FILLER
|
04338944 |
— |
