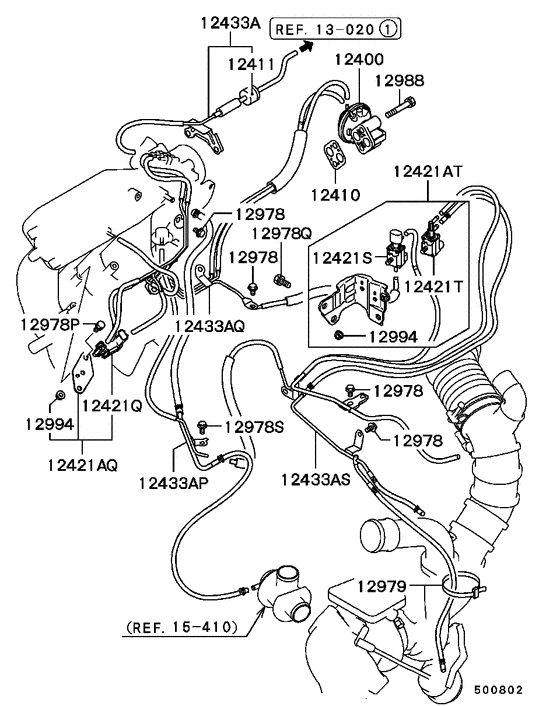

Emission control (ALL) Diagram Mitsubishi RVR
- Year
- 1997 - 2002
- Sales region
- Japan
- Note
- SPORTS-GEAR X3,4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- SPORTS-GEAR X3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD348487 VALVE, EGR |
MD348487 |
US $162.72 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.70 |
||
|
12411
|
12411
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.16 |
||
|
12421AQ
|
12421AQ
MR373000 VALVE ASSY, EMISSION SOLENOID |
MR373000 |
US $63.36 |
||
|
12421AT
|
12421AT
MR373026 VALVE ASSY, EMISSION SOLENOID |
MR373026 |
US $172.80 |
||
|
12421Q
|
12421Q
MR204853 VALVE, EMISSION SOLENOID |
MR204853 |
from US $44.69 |
||
|
12421S
|
12421S
MD320313 VALVE, EMISSION SOLENOID |
MD320313 |
US $66.66 |
||
|
12421T
|
12421T
MR212636 VALVE, EMISSION SOLENOID |
MR212636 |
US $62.04 |
||
|
12433A
|
12433A
MR373020 HOSE & PIPE ASSY, EMISSION CONTROL |
MR373020 |
US $29.52 |
||
|
12433AP
|
12433AP
MR373002 HOSE & PIPE ASSY, EMISSION CONTROL |
MR373002 |
US $34.56 |
||
|
12433AQ
|
12433AQ
MR373003 HOSE & PIPE ASSY, EMISSION CONTROL |
MR373003 |
US $77.76 |
||
|
12433AQ
|
12433AQ
MR450344 HOSE & PIPE ASSY, EMISSION CONTROL |
MR450344 |
US $47.52 |
||
|
12433AS
|
12433AS
MR431610 HOSE & PIPE ASSY, EMISSION CONTROL |
MR431610 |
US $38.88 |
||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.80 |
||
|
12978P
|
12978P
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.80 |
||
|
12978Q
|
12978Q
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $0.99 |
||
|
12978S
|
12978S
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
12979
|
12979
MD129688 BAND, AIR CLEANER275 |
MD129688 |
US $7.06 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.45 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.11 |
||
|
