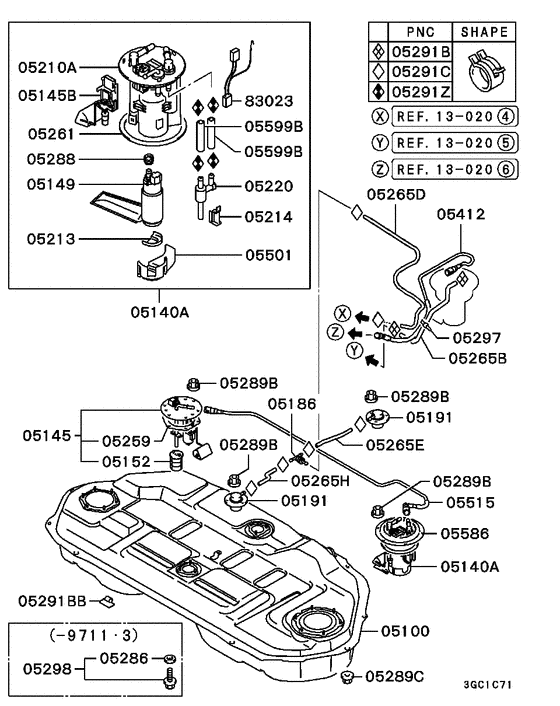

Fuel tank (TANK & FILLER TUBE) Diagram Mitsubishi RVR
- Year
- 1997 - 2002
- Sales region
- Japan
- Note
- SPORTS-GEAR X3,4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- SPORTS-GEAR X3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05100
|
05100
MR271134 FUEL TANK |
MR271134 |
US $671.22 |
||
|
05100
|
05100
MR978293 FUEL TANK |
MR978293 |
US $671.22 |
||
|
05140A
|
05140A
MR391632 FUEL PUMP ASSY |
MR391632 |
US $1,013.38 |
||
|
05145
|
05145
MR271997 GAUGE UNIT, FUEL TANK |
MR271997 |
US $202.76 |
||
|
05145B
|
05145B
MR342182 GAUGE UNIT, FUEL TANK |
MR342182 |
US $108.78 |
||
| replacement | |||||
|
05145B
|
05145B
MR342183 GAUGE UNIT, FUEL TANK |
MR342183 |
US $109.52 |
||
|
05149
|
05149
MR431112 PUMP, FUEL TANK |
MR431112 |
US $615.89 |
||
|
05149
|
05149
MR497549 PUMP, FUEL TANK |
MR497549 |
US $615.89 |
||
|
05149
|
05149
MR529575 PUMP, FUEL TANK |
MR529575 |
US $531.34 |
||
|
05152
|
05152
MB129895 FILTER, FUEL IN TANK |
MB129895 |
from US $4.72 |
||
|
05186
|
05186
MR342160 VALVE, FUEL FILLER NECK |
MR342160 |
US $24.42 |
||
|
05191
|
05191
MR187856 VALVE, FUEL TANK SAFETY |
MR187856 |
US $50.32 |
||
|
05210A
|
05210A
MR431453 FILTER ASSY, FUEL TANK |
MR431453 |
from US $162.80 |
||
|
05213
|
05213
MR552785 CUSHION, FUEL TANK PUMP |
MR552785 |
from US $7.66 |
||
|
05214
|
05214
MR431116 STOPPER, FUEL TANK ASSIST PUMP |
MR431116 |
US $2.52 |
||
|
05220
|
05220
MR431128 PUMP, FUEL TANK ASSIST |
MR431128 |
US $56.77 |
||
|
05259
|
05259
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05259
|
05259
MR573684 GASKET, FUEL TANK GAUGE |
MR573684 |
from US $8.25 |
||
|
05261
|
05261
MR271159
GASKET, FUEL TANK PUMP
|
MR271159 |
— | ||
| replacement | |||||
|
05261
|
05261
MN106046 GASKET, FUEL TANK PUMP |
MN106046 |
from US $3.53 |
||
|
05265B
|
05265B
MR342438 HOSE, FUEL TANK |
MR342438 |
US $9.03 |
||
|
05265D
|
05265D
MR342439 HOSE, FUEL TANK |
MR342439 |
US $21.46 |
||
|
05265E
|
05265E
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265H
|
05265H
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05286
|
05286
MR100054 GASKET, FUEL TANK8 |
MR100054 |
from US $1.13 |
||
|
05288
|
05288
MR431121 GROMMET, FUEL TANK |
MR431121 |
from US $2.79 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291BB
|
05291BB
MR342642 CLIP, FUEL TANK10 |
MR342642 |
from US $1.89 |
||
|
05291BB
|
05291BB
MR342764 CLIP, FUEL TANK15 |
MR342764 |
US $2.66 |
||
|
05291BB
|
05291BB
MR342900 CLIP, FUEL TANK8 |
MR342900 |
US $2.07 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291Z
|
05291Z
MS660177 CLIP, FUEL TANKD=12 |
MS660177 |
from US $1.05 |
||
|
05297
|
05297
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
05298
|
05298
1715A135 PLUG, FUEL TANK8 |
1715A135 |
from US $2.63 |
||
|
05412
|
05412
MR271324 HOSE, FUEL HIGH PRESSURE |
MR271324 |
US $68.82 |
||
|
05501
|
05501
MR431114 BRACKET, FUEL PUMP |
MR431114 |
US $7.55 |
||
|
05515
|
05515
MR342033 TUBE, FUEL PUMP SUCTION |
MR342033 |
US $16.28 |
||
|
05586
|
05586
MR271158 PLATE, FUEL PUMP BRACKET |
MR271158 |
from US $8.39 |
||
|
05599B
|
05599B
MR431118 HOSE, FUEL PUMP |
MR431118 |
US $2.81 |
||
|
83023
|
83023
MR431120 HARNESS, FUEL PUMP |
MR431120 |
US $24.62 |
||
|
