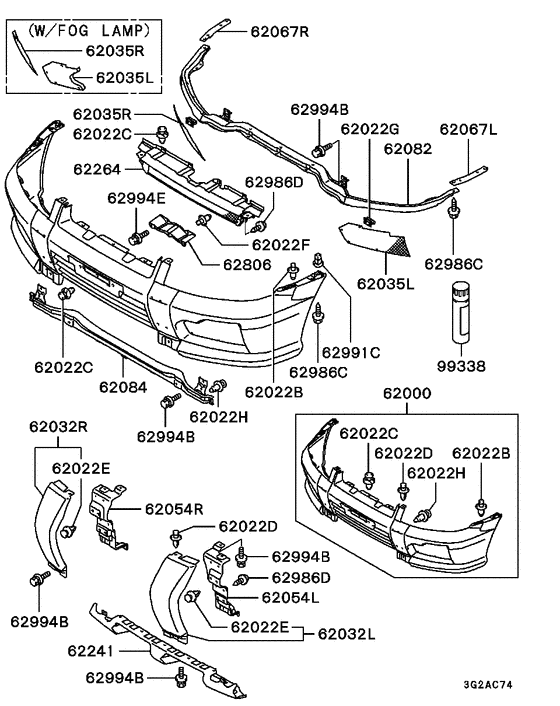

Front bumper & support (ALL) Diagram Mitsubishi RVR
- Year
- 2000 - 2002
- Sales region
- Japan
- Note
- AERO NAVI-LIMITED(4DR/4PERSONS),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- AERO NAVI-LIMIT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MR391643 FACE KIT, FR BUMPER |
MR391643 |
US $1,097.82 |
||
|
62000
|
62000
MR535186 FACE KIT, FR BUMPER |
MR535186 |
US $1,151.70 |
||
|
62000
|
62000
MR535187 FACE KIT, FR BUMPER |
MR535187 |
US $1,151.70 |
||
|
62000
|
62000
MR535188 FACE KIT, FR BUMPER |
MR535188 |
US $1,151.70 |
||
|
62000
|
62000
MR535189 FACE KIT, FR BUMPER |
MR535189 |
US $1,151.70 |
||
|
62000
|
62000
MR535807 FACE KIT, FR BUMPER |
MR535807 |
US $1,151.70 |
||
|
62000
|
62000
MR535808 FACE KIT, FR BUMPER |
MR535808 |
US $1,151.70 |
||
|
62000
|
62000
MR535809 FACE KIT, FR BUMPER |
MR535809 |
US $1,151.70 |
||
|
62022B
|
62022B
MB692976 CLIP, HEATER DUCT |
MB692976 |
US $2.81 |
||
|
62022C
|
62022C
MR220501 CLIP, SPLASH SHIELD8 |
MR220501 |
from US $1.46 |
||
|
62022D
|
62022D
MB866568 CLIP, BUMPER8 |
MB866568 |
from US $2.01 |
||
|
62022E
|
62022E
MB319754 CLIP, FR END GARNISH8 |
MB319754 |
US $5.88 |
||
|
62022F
|
62022F
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
62022G
|
62022G
MR447202 CLIP, FR BUMPER |
MR447202 |
from US $1.95 |
||
|
62022H
|
62022H
MR328954 CLIP, SPLASH SHIELD8x22 |
MR328954 |
from US $1.38 |
||
|
62032L
|
62032L
MR447143 GUARD, FR BUMPER, LH |
MR447143 |
US $166.90 |
||
|
62032R
|
62032R
MR447144 GUARD, FR BUMPER, RH |
MR447144 |
US $166.90 |
||
|
62035L
|
62035L
MR349381 NET, FR BUMPER, LH |
MR349381 |
US $33.30 |
||
|
62035R
|
62035R
MR349381 NET, FR BUMPER, LH |
MR349381 |
US $33.30 |
||
|
62054L
|
62054L
MR349277 REINFORCEMENT, FR BUMPER, LH |
MR349277 |
US $54.02 |
||
|
62054R
|
62054R
MR349278 REINFORCEMENT, FR BUMPER, RH |
MR349278 |
US $54.02 |
||
|
62067L
|
62067L
MR384747 PLATE, FR BUMPER SIDE, LH |
MR384747 |
US $6.96 |
||
|
62067R
|
62067R
MR384748 PLATE, FR BUMPER SIDE, RH |
MR384748 |
US $6.96 |
||
|
62082
|
62082
MR295487 SUPPORT, FR BUMPER, UPR |
MR295487 |
US $161.32 |
||
|
62082
|
62082
MR520544 SUPPORT, FR BUMPER, UPR |
MR520544 |
US $161.32 |
||
|
62084
|
62084
MR349281 BRACKET, FR BUMPER, LWR |
MR349281 |
US $137.64 |
||
|
62084
|
62084
MR520545 BRACKET, FR BUMPER, LWR |
MR520545 |
US $133.94 |
||
|
62241
|
62241
MR780328 PLATE, UNDER SKID |
MR780328 |
US $286.62 |
||
|
62264
|
62264
MR349379 NET, RADIATOR GRILLE |
MR349379 |
US $149.48 |
||
|
62806
|
62806
MR384746 BRACKET, FR LICENSE PLATE |
MR384746 |
US $22.94 |
||
|
62806
|
62806
MR520550 BRACKET, FR LICENSE PLATE |
MR520550 |
US $31.08 |
||
|
62986C
|
62986C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62986D
|
62986D
MS450155 SCREW, RR END PANEL GARNISHTapping,5x10 |
MS450155 |
US $2.87 |
||
|
62991C
|
62991C
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
62994B
|
62994B
MS240581 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MS240581 |
US $2.60 |
||
|
62994E
|
62994E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
62994E
|
62994E
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
99338
|
99338
MZ101491 TOUCH-UP PAINT |
MZ101491 |
US $10.36 |
||
|
99338
|
99338
MZ101810
TOUCH-UP PAINT (Cannot supply)
|
MZ101810 |
— | ||
|
99338
|
99338
MZ101845
TOUCH-UP PAINT
|
MZ101845 |
— | ||
|
99338
|
99338
MZ101902
TOUCH-UP PAINT
|
MZ101902 |
— | ||
|
99338
|
99338
MZ101911 TOUCH-UP PAINT |
MZ101911 |
US $10.36 |
||
|
99338
|
99338
MZ101971 TOUCH-UP PAINT (Cannot supply)Поставка только по Японии |
MZ101971 |
US $10.36 |
||
|
99338
|
99338
MZ101974
TOUCH-UP PAINT
|
MZ101974 |
— | ||
|
99338
|
99338
MZ103036 TOUCH-UP PAINT |
MZ103036 |
US $10.36 |
||
|
99338
|
99338
MZ103037 TOUCH-UP PAINT |
MZ103037 |
US $10.36 |
