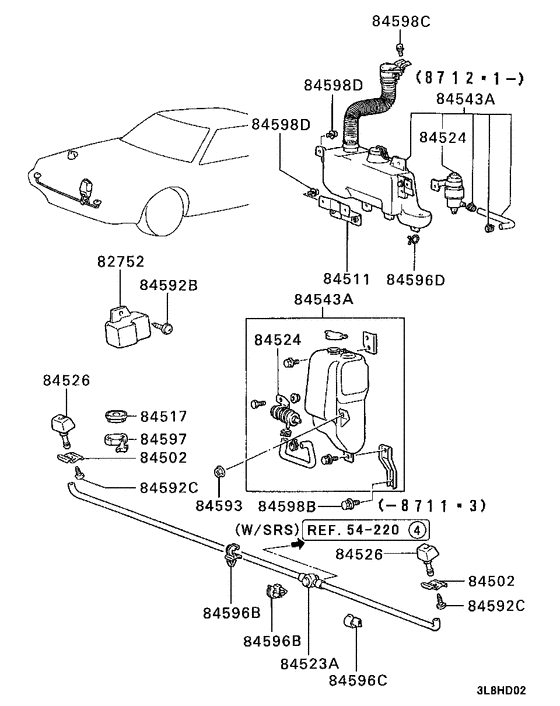

Headlamp wiper & washer Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI/ANTI-POLL),5FM/T LHD
- transmission
- 5FM/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82752
|
82752
MB306591 RELAY, HEADLAMP WASHER35600-37480 |
MB306591 |
US $139.86 |
||
|
84502
|
84502
MB381972 BRACKET, HEADLAMP WASHER NOZZLE |
MB381972 |
US $5.62 |
||
|
84511
|
84511
MB617692
BRACKET,HEADLAMP WASHER TANK
|
MB617692 |
— | ||
|
84523A
|
84523A
MB354735 HOSE & VALVE ASSY, HEADLAMP WASHER |
MB354735 |
US $87.32 |
||
|
84524
|
84524
MB530818 MOTOR,WINDSHIELD WASHER |
MB530818 |
US $239.76 |
||
|
84524
|
84524
MB571760
MOTOR,HEADLAMP WASHER
|
MB571760 |
— | ||
|
84524
|
84524
MB617961
MOTOR,HEADLAMP WASHER
|
MB617961 |
— | ||
|
84526
|
84526
MB354719
NOZZLE,HEADLAMP WASHER
|
MB354719 |
— | ||
|
84543A
|
84543A
MB571415
TANK ASSY,HEADLAMP WASHER
|
MB571415 |
— | ||
|
84543A
|
84543A
MB617691
TANK ASSY,HEADLAMP WASHER
|
MB617691 |
— | ||
|
84543A
|
84543A
MB617977
TANK ASSY,HEADLAMP WASHER
|
MB617977 |
— | ||
|
84592B
|
84592B
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
84592C
|
84592C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
84593
|
84593
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
84596B
|
84596B
MB183629 CLIP, HEADLAMP WASHER3 |
MB183629 |
US $2.81 |
||
|
84596C
|
84596C
MB171746 CLIP, INSTRUMENT PANEL WIRING16 |
MB171746 |
US $3.26 |
||
|
84596D
|
84596D
MS470359 CLIP, ENG OIL FILLER16 |
MS470359 |
US $2.19 |
||
|
84597
|
84597
MB306497 CLAMP, WINDSHIELD WASHER |
MB306497 |
US $3.55 |
||
|
84598B
|
84598B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
84598C
|
84598C
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
84598D
|
84598D
MF247226 BOLT, FUEL LINEWasher assembled,6x20 |
MF247226 |
US $1.92 |
||
|
