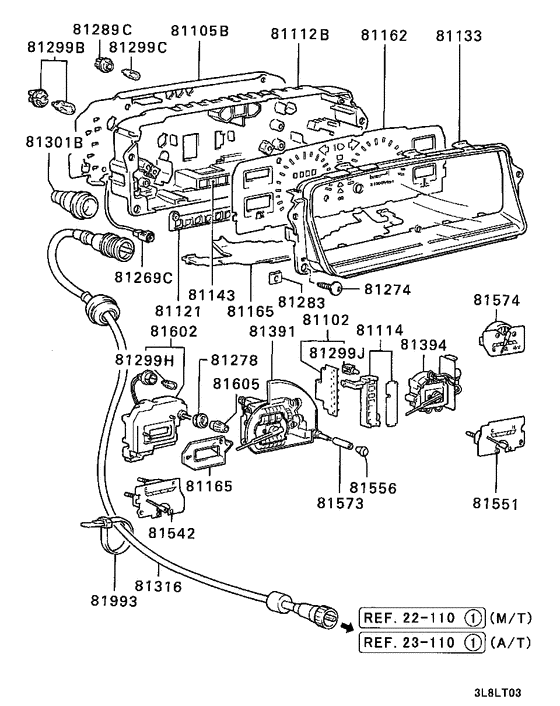

Meter,gauge & clock (RHD) Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI),5FM/T RHD
- transmission
- 5FM/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105B
|
81105B
MB603012
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB603012 |
— | ||
|
81105B
|
81105B
MB604275
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB604275 |
— | ||
|
81112B
|
81112B
MB423097
CASE, COMBINATION METER
|
MB423097 |
— | ||
|
81121
|
81121
MB423106
COVER, COMBINATION METER BULB
|
MB423106 |
— | ||
|
81133
|
81133
MB423110
GLASS, COMBINATION METER
|
MB423110 |
— | ||
|
81143
|
81143
MB603011
LENS,INSTRUMENT PANEL WARNING INDICATOR
|
MB603011 |
— | ||
|
81143
|
81143
MB604273
LENS,COMBINATION METER INDICATOR
|
MB604273 |
— | ||
|
81162
|
81162
MB561894
PLATE,COMBINATION METER DIAL
|
MB561894 |
— | ||
|
81162
|
81162
MB603230
PLATE,COMBINATION METER DIAL
|
MB603230 |
— | ||
|
81165
|
81165
MB423107
PRISM, COMBINATION METER INDICATOR
|
MB423107 |
— | ||
|
81165
|
81165
MB423108
PRISM, COMBINATION METER INDICATOR
|
MB423108 |
— | ||
|
81269C
|
81269C
MB561790
WIRE, INSTRUMENT PANEL METER
|
MB561790 |
— | ||
|
81274
|
81274
MF453034 SCREW, ENG CONTROL EQUIPTapping,5x20 |
MF453034 |
from US $1.63 |
||
|
81278
|
81278
MB327916 GROMMET, INSTRUMENT PANEL METER |
MB327916 |
US $5.48 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81289C
|
81289C
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.05 |
||
|
81299B
|
81299B
MB423111 BULB, INSTRUMENT PANEL METER14v-3w |
MB423111 |
US $4.88 |
||
|
81299C
|
81299C
MS820083 BULB, GEARSHIFT LINK |
MS820083 |
from US $2.15 |
||
|
81299H
|
81299H
MB562297 BULB, INSTRUMENT PANEL METER14v-2.0w |
MB562297 |
US $3.85 |
||
|
81301B
|
81301B
MB326171 ADAPTER, SPEEDOMETER CABLE |
MB326171 |
from US $1.42 |
||
|
81316
|
81316
MB326170 CABLE, SPEEDOMETER260 |
MB326170 |
US $37 |
||
|
81391
|
81391
MB603008
Speedometer
|
MB603008 |
— | ||
|
81394
|
81394
MB423099 TACHOMETER |
MB423099 |
US $299.94 |
||
|
81542
|
81542
MB603009
GAUGE,FUEL
|
MB603009 |
— | ||
|
81551
|
81551
MB603010
GAUGE,WATER TEMPERATURE
|
MB603010 |
— | ||
|
81556
|
81556
MB280866 KNOB, TRIP METER |
MB280866 |
US $1.92 |
||
|
81573
|
81573
MB280865 TUBE, TRIP METER KNOB |
MB280865 |
US $1.48 |
||
|
81574
|
81574
MB423103 VOLTMETER |
MB423103 |
US $66.60 |
||
|
81602
|
81602
MB521924 CLOCK, DIGITAL |
MB521924 |
US $244.20 |
||
|
81605
|
81605
MB385052 KNOB, CLOCK CORRECTION |
MB385052 |
US $2.37 |
||
|
81993
|
81993
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
