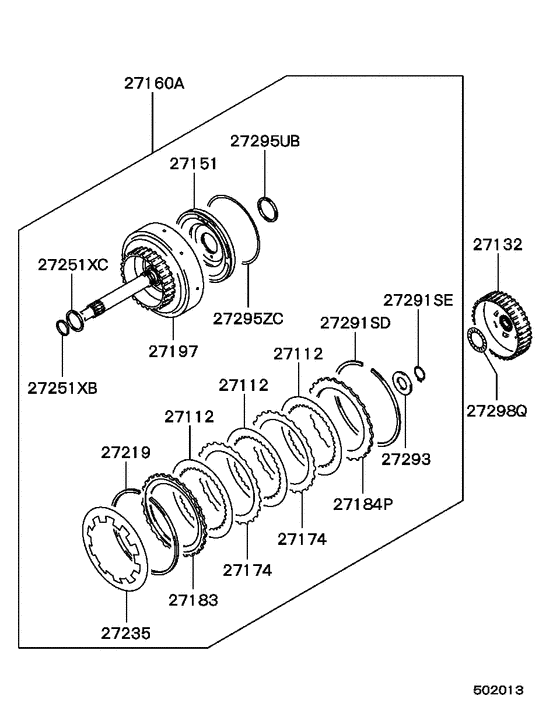

A/t clutch (ALL (RR CLUTCH)) Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27112
|
27112
MD713655 DISC, A/T FR CLUTCH |
MD713655 |
US $44.40 |
||
|
27132
|
27132
MD712536 HUB, A/T RR CLUTCH |
MD712536 |
US $94.72 |
||
|
27151
|
27151
MD715115 PISTON, A/T CLUTCH |
MD715115 |
US $34.78 |
||
|
27160A
|
27160A
MD727539
CLUTCH ASSY,A/T,RR
|
MD727539 |
— | ||
|
27174
|
27174
MD707255 PLATE, A/T RR CLUTCH |
MD707255 |
US $39.22 |
||
|
27183
|
27183
MD707251 PLATE, A/T RR CLUTCH PRESSURE |
MD707251 |
US $39.22 |
||
|
27184P
|
27184P
MD715064 PLATE, A/T RR CLUTCH REACTION |
MD715064 |
US $39.22 |
||
|
27197
|
27197
MD727540
RETAINER,A/T RR CLUTCH
|
MD727540 |
— | ||
|
27219
|
27219
MD707253 SPRING, A/T RR CLUTCH WAVE |
MD707253 |
US $10.51 |
||
|
27235
|
27235
MD703384 SPRING, A/T RR CLUTCH PISTON RETURN |
MD703384 |
US $14.06 |
||
|
27235
|
27235
MD730691 SPRING, A/T RR CLUTCH PISTON |
MD730691 |
US $21.89 |
||
|
27251XB
|
27251XB
MD707236 SEAL RING, A/T CLUTCH22 |
MD707236 |
US $6.81 |
||
|
27251XC
|
27251XC
MD707235 SEAL RING, A/T CASE29 |
MD707235 |
US $8.58 |
||
|
27291SD
|
27291SD
MD730930 SNAP RING, A/T CLUTCH1.7 |
MD730930 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730931 SNAP RING, A/T CLUTCH1.9 |
MD730931 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730932 SNAP RING, A/T CLUTCH2.1 |
MD730932 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730933 SNAP RING, A/T CLUTCH2.3 |
MD730933 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730934 SNAP RING, A/T CLUTCH2.5 |
MD730934 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730935 SNAP RING, A/T CLUTCH2.7 |
MD730935 |
US $9.77 |
||
|
27291SD
|
27291SD
MD730936 SNAP RING, A/T CLUTCH2.9 |
MD730936 |
US $9.77 |
||
|
27291SD
|
27291SD
MD955630 SNAP RING, A/T BRAKE1.6 |
MD955630 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955631 SNAP RING, A/T BRAKE1.8 |
MD955631 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955632 SNAP RING, A/T BRAKE2.0 |
MD955632 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955633 SNAP RING, A/T BRAKE2.2 |
MD955633 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955634 SNAP RING, A/T BRAKE2.4 |
MD955634 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955635 SNAP RING, A/T BRAKE2.6 |
MD955635 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955636 SNAP RING, A/T BRAKE2.8 |
MD955636 |
US $8.44 |
||
|
27291SD
|
27291SD
MD955637 SNAP RING, A/T BRAKE3.0 |
MD955637 |
US $8.44 |
||
|
27291SE
|
27291SE
MD704981 SNAP RING, A/T CLUTCH17.4 |
MD704981 |
US $3.70 |
||
|
27293
|
27293
MD704980 RACE, A/T CLUTCH |
MD704980 |
US $6.36 |
||
|
27295UB
|
27295UB
MD707248 D-RING, A/T CLUTCH30 |
MD707248 |
US $4.74 |
||
|
27295ZC
|
27295ZC
MD707247 D-RING, A/T CLUTCH114 |
MD707247 |
US $7.70 |
||
|
27298Q
|
27298Q
MD704930 THRUST BEARING, A/T CLUTCH |
MD704930 |
US $10.06 |
