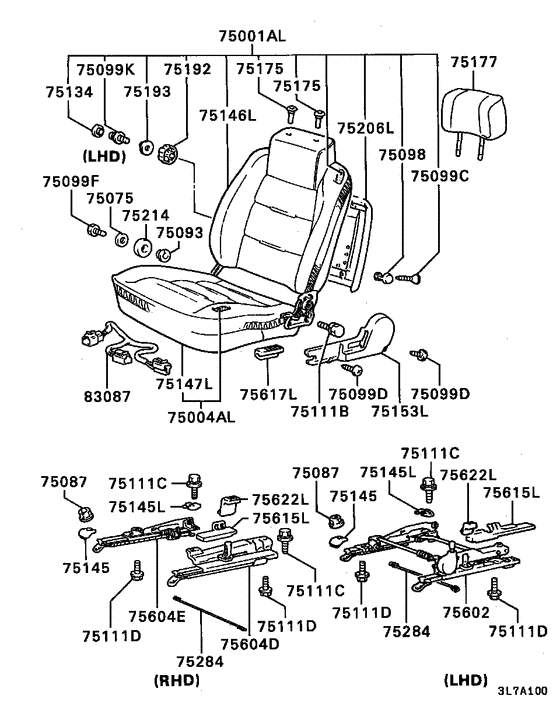

Front seat (LH) Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB726919
BACK ASSY,FR SEAT,LH
|
MB726919 |
— | ||
|
75001AL
|
75001AL
MB726920
BACK ASSY,FR SEAT,LH
|
MB726920 |
— | ||
|
75001AL
|
75001AL
MB726921
BACK ASSY,FR SEAT,LH
|
MB726921 |
— | ||
|
75001AL
|
75001AL
MB726925
BACK ASSY,FR SEAT,LH
|
MB726925 |
— | ||
|
75001AL
|
75001AL
MB726926
BACK ASSY,FR SEAT,LH
|
MB726926 |
— | ||
|
75001AL
|
75001AL
MB726927
BACK ASSY,FR SEAT,LH
|
MB726927 |
— | ||
|
75001AL
|
75001AL
MB726931
BACK ASSY,FR SEAT,LH
|
MB726931 |
— | ||
|
75001AL
|
75001AL
MB726932
BACK ASSY,FR SEAT,LH
|
MB726932 |
— | ||
|
75001AL
|
75001AL
MB726933
BACK ASSY,FR SEAT,LH
|
MB726933 |
— | ||
|
75004AL
|
75004AL
MB726989
CUSHION ASSY,FR SEAT,LH
|
MB726989 |
— | ||
|
75004AL
|
75004AL
MB726990
CUSHION ASSY,FR SEAT,LH
|
MB726990 |
— | ||
|
75004AL
|
75004AL
MB726991
CUSHION ASSY,FR SEAT,LH
|
MB726991 |
— | ||
|
75004AL
|
75004AL
MB726995
CUSHION ASSY,FR SEAT,LH
|
MB726995 |
— | ||
|
75004AL
|
75004AL
MB726996
CUSHION ASSY,FR SEAT,LH
|
MB726996 |
— | ||
|
75004AL
|
75004AL
MB726997
CUSHION ASSY,FR SEAT,LH
|
MB726997 |
— | ||
|
75004AL
|
75004AL
MB727001
CUSHION ASSY,FR SEAT,LH
|
MB727001 |
— | ||
|
75004AL
|
75004AL
MB727002
CUSHION ASSY,FR SEAT,LH
|
MB727002 |
— | ||
|
75004AL
|
75004AL
MB727003
CUSHION ASSY,FR SEAT,LH
|
MB727003 |
— | ||
|
75075
|
75075
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75098
|
75098
MB371750 CAP, FR DOOR TRIM SCREW |
MB371750 |
US $2.81 |
||
|
75098
|
75098
MB469838 CAP, FR DOOR TRIM SCREW |
MB469838 |
US $2.81 |
||
|
75098
|
75098
MB718749 CAP, FR SEAT |
MB718749 |
US $2.81 |
||
|
75099C
|
75099C
MF453615 SCREW, FLOOR INSPECTION LIDTapping,4x16 |
MF453615 |
US $1.92 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099K
|
75099K
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MB342638 BOLT, FR SEATWasher assembled,10x22 |
MB342638 |
US $3.85 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
MB469836 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB469836 |
US $3.26 |
||
|
75134
|
75134
MB705875 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB705875 |
US $3.26 |
||
|
75134
|
75134
MB727252 CAP,FR SEAT LUMBAR SUPPORT LEVER |
MB727252 |
US $4.44 |
||
|
75145
|
75145
MB445587 COVER, FR SEAT ANCHOR |
MB445587 |
US $5.48 |
||
|
75145
|
75145
MB461471 COVER, FR SEAT ANCHOR |
MB461471 |
US $5.48 |
||
|
75145
|
75145
MB703183 COVER, FR SEAT ANCHOR |
MB703183 |
US $5.48 |
||
|
75145
|
75145
MB718156 COVER, FR SEAT ANCHOR |
MB718156 |
US $5.48 |
||
|
75145L
|
75145L
MB445581 COVER, FR SEAT ANCHOR, LH |
MB445581 |
US $5.62 |
||
|
75145L
|
75145L
MB461469 COVER, FR SEAT ANCHOR, LH |
MB461469 |
US $5.62 |
||
|
75145L
|
75145L
MB703181 COVER, FR SEAT ANCHOR, LH |
MB703181 |
US $5.62 |
||
|
75145L
|
75145L
MB718150 COVER, FR SEAT ANCHOR, LH |
MB718150 |
US $5.62 |
||
|
75146L
|
75146L
MB726937
COVER,FR SEAT BACK,LH
|
MB726937 |
— | ||
|
75146L
|
75146L
MB726938
COVER,FR SEAT BACK,LH
|
MB726938 |
— | ||
|
75146L
|
75146L
MB726939
COVER,FR SEAT BACK,LH
|
MB726939 |
— | ||
|
75146L
|
75146L
MB726943
COVER,FR SEAT BACK,LH
|
MB726943 |
— | ||
|
75146L
|
75146L
MB726944
COVER,FR SEAT BACK,LH
|
MB726944 |
— | ||
|
75146L
|
75146L
MB726945
COVER,FR SEAT BACK,LH
|
MB726945 |
— | ||
|
75146L
|
75146L
MB726949
COVER,FR SEAT BACK,LH
|
MB726949 |
— | ||
|
75146L
|
75146L
MB726950
COVER,FR SEAT BACK,LH
|
MB726950 |
— | ||
|
75146L
|
75146L
MB726951
COVER,FR SEAT BACK,LH
|
MB726951 |
— | ||
|
75147L
|
75147L
MB727023
COVER,FR SEAT CUSHION,LH
|
MB727023 |
— | ||
|
75147L
|
75147L
MB727024
COVER,FR SEAT CUSHION,LH
|
MB727024 |
— | ||
|
75147L
|
75147L
MB727025
COVER,FR SEAT CUSHION,LH
|
MB727025 |
— | ||
|
75147L
|
75147L
MB727029
COVER,FR SEAT CUSHION,LH
|
MB727029 |
— | ||
|
75147L
|
75147L
MB727030
COVER,FR SEAT CUSHION,LH
|
MB727030 |
— | ||
|
75147L
|
75147L
MB727031
COVER,FR SEAT CUSHION,LH
|
MB727031 |
— | ||
|
75147L
|
75147L
MB727035
COVER,FR SEAT CUSHION,LH
|
MB727035 |
— | ||
|
75147L
|
75147L
MB727036
COVER,FR SEAT CUSHION,LH
|
MB727036 |
— | ||
|
75147L
|
75147L
MB727037
COVER,FR SEAT CUSHION,LH
|
MB727037 |
— | ||
|
75153L
|
75153L
MB452123
COVER,FR SEAT SIDE SHIELD,LH
|
MB452123 |
— | ||
|
75153L
|
75153L
MB524722
COVER,FR SEAT SIDE SHIELD,LH
|
MB524722 |
— | ||
|
75153L
|
75153L
MB718154
COVER,FR SEAT SIDE SHIELD,LH
|
MB718154 |
— | ||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB467132 GUIDE, FR SEAT HEADRESTW/lock |
MB467132 |
US $9.62 |
||
|
75175
|
75175
MB723583 GUIDE, FR SEAT HEADRESTW/lock |
MB723583 |
US $12.14 |
||
|
75177
|
75177
MB724399
HEADREST,FR SEAT
|
MB724399 |
— | ||
|
75177
|
75177
MB724400
HEADREST,FR SEAT
|
MB724400 |
— | ||
|
75177
|
75177
MB726900
HEADREST,FR SEAT
|
MB726900 |
— | ||
|
75177
|
75177
MB727282
HEADREST,FR SEAT
|
MB727282 |
— | ||
|
75177
|
75177
MB727283
HEADREST,FR SEAT
|
MB727283 |
— | ||
|
75177
|
75177
MB727284
HEADREST,FR SEAT
|
MB727284 |
— | ||
|
75192
|
75192
MB469943 LEVER, FR SEAT LUMBAR SUPPORT |
MB469943 |
US $31.08 |
||
|
75192
|
75192
MB705908 LEVER, FR SEAT LUMBAR SUPPORT |
MB705908 |
US $28.12 |
||
|
75192
|
75192
MB727260 LEVER,FR SEAT LUMBAR SUPPORT |
MB727260 |
US $17.76 |
||
|
75193
|
75193
MB469941 LEVER, FR SEAT SIDE SUPPORT |
MB469941 |
US $24.42 |
||
|
75193
|
75193
MB705907 LEVER, FR SEAT SIDE SUPPORT |
MB705907 |
US $24.42 |
||
|
75193
|
75193
MB727259 LEVER,FR SEAT SIDE SUPPORT |
MB727259 |
US $17.76 |
||
|
75206L
|
75206L
MB719003
PANEL,FR SEAT BACK,LH
|
MB719003 |
— | ||
|
75206L
|
75206L
MB719004
PANEL,FR SEAT BACK,LH
|
MB719004 |
— | ||
|
75206L
|
75206L
MB719005
PANEL,FR SEAT BACK,LH
|
MB719005 |
— | ||
|
75206L
|
75206L
MB719009
PANEL,FR SEAT BACK,LH
|
MB719009 |
— | ||
|
75206L
|
75206L
MB719010
PANEL,FR SEAT BACK,LH
|
MB719010 |
— | ||
|
75206L
|
75206L
MB719011
PANEL,FR SEAT BACK,LH
|
MB719011 |
— | ||
|
75214
|
75214
MB389118 PROTECTOR, FR SEAT FRAME |
MB389118 |
US $4.74 |
||
|
75284
|
75284
MB342243 WIRE, FR SEAT |
MB342243 |
US $3.40 |
||
|
75602
|
75602
MB452143
ADJUSTER,FR SEAT HEIGHT
|
MB452143 |
— | ||
|
75602
|
75602
MB524741
ADJUSTER,FR SEAT HEIGHT
|
MB524741 |
— | ||
|
75602
|
75602
MB718153
ADJUSTER,FR SEAT HEIGHT
|
MB718153 |
— | ||
|
75615L
|
75615L
MB452707
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB452707 |
— | ||
|
75615L
|
75615L
MB524725
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB524725 |
— | ||
|
75615L
|
75615L
MB718149
COVER,FR SEAT SLIDE ADJUSTER,LH
|
MB718149 |
— | ||
|
75617L
|
75617L
MB469176 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB469176 |
US $11.40 |
||
|
75617L
|
75617L
MB469178 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB469178 |
US $11.40 |
||
|
75617L
|
75617L
MB723512 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB723512 |
US $12.43 |
||
|
75622L
|
75622L
MB469184 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB469184 |
US $10.06 |
||
|
75622L
|
75622L
MB469186 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB469186 |
US $10.06 |
||
|
75622L
|
75622L
MB723510 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB723510 |
US $11.25 |
||
|
83087
|
83087
MB372588
HARNESS,SEAT HEATER
|
MB372588 |
— |
