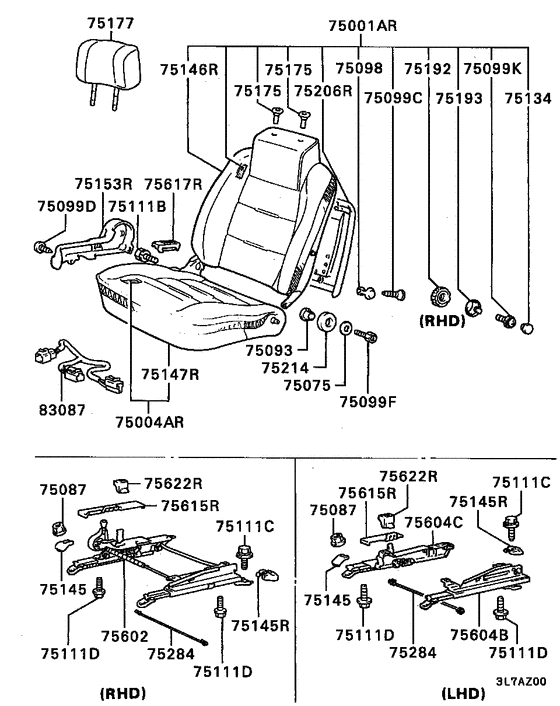

Front seat (RH) Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB726922
BACK ASSY,FR SEAT,RH
|
MB726922 |
— | ||
|
75001AR
|
75001AR
MB726923
BACK ASSY,FR SEAT,RH
|
MB726923 |
— | ||
|
75001AR
|
75001AR
MB726924
BACK ASSY,FR SEAT,RH
|
MB726924 |
— | ||
|
75001AR
|
75001AR
MB726928
BACK ASSY,FR SEAT,RH
|
MB726928 |
— | ||
|
75001AR
|
75001AR
MB726929
BACK ASSY,FR SEAT,RH
|
MB726929 |
— | ||
|
75001AR
|
75001AR
MB726930
BACK ASSY,FR SEAT,RH
|
MB726930 |
— | ||
|
75001AR
|
75001AR
MB726934
BACK ASSY,FR SEAT,RH
|
MB726934 |
— | ||
|
75001AR
|
75001AR
MB726935
BACK ASSY,FR SEAT,RH
|
MB726935 |
— | ||
|
75001AR
|
75001AR
MB726936
BACK ASSY,FR SEAT,RH
|
MB726936 |
— | ||
|
75004AR
|
75004AR
MB726992
CUSHION ASSY,FR SEAT,RH
|
MB726992 |
— | ||
|
75004AR
|
75004AR
MB726993
CUSHION ASSY,FR SEAT,RH
|
MB726993 |
— | ||
|
75004AR
|
75004AR
MB726994
CUSHION ASSY,FR SEAT,RH
|
MB726994 |
— | ||
|
75004AR
|
75004AR
MB726998
CUSHION ASSY,FR SEAT,RH
|
MB726998 |
— | ||
|
75004AR
|
75004AR
MB726999
CUSHION ASSY,FR SEAT,RH
|
MB726999 |
— | ||
|
75004AR
|
75004AR
MB727000
CUSHION ASSY,FR SEAT,RH
|
MB727000 |
— | ||
|
75004AR
|
75004AR
MB727004
CUSHION ASSY,FR SEAT,RH
|
MB727004 |
— | ||
|
75004AR
|
75004AR
MB727005
CUSHION ASSY,FR SEAT,RH
|
MB727005 |
— | ||
|
75004AR
|
75004AR
MB727006
CUSHION ASSY,FR SEAT,RH
|
MB727006 |
— | ||
|
75075
|
75075
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75098
|
75098
MB371750 CAP, FR DOOR TRIM SCREW |
MB371750 |
US $2.81 |
||
|
75098
|
75098
MB469838 CAP, FR DOOR TRIM SCREW |
MB469838 |
US $2.81 |
||
|
75098
|
75098
MB718749 CAP, FR SEAT |
MB718749 |
US $2.81 |
||
|
75099C
|
75099C
MF453615 SCREW, FLOOR INSPECTION LIDTapping,4x16 |
MF453615 |
US $1.92 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099K
|
75099K
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MB342638 BOLT, FR SEATWasher assembled,10x22 |
MB342638 |
US $3.85 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
MB469836 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB469836 |
US $3.26 |
||
|
75134
|
75134
MB705875 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB705875 |
US $3.26 |
||
|
75134
|
75134
MB727252 CAP,FR SEAT LUMBAR SUPPORT LEVER |
MB727252 |
US $4.44 |
||
|
75145
|
75145
MB445587 COVER, FR SEAT ANCHOR |
MB445587 |
US $5.48 |
||
|
75145
|
75145
MB461471 COVER, FR SEAT ANCHOR |
MB461471 |
US $5.48 |
||
|
75145
|
75145
MB703183 COVER, FR SEAT ANCHOR |
MB703183 |
US $5.48 |
||
|
75145
|
75145
MB718156 COVER, FR SEAT ANCHOR |
MB718156 |
US $5.48 |
||
|
75145R
|
75145R
MB445584 COVER, FR SEAT ANCHOR, RH |
MB445584 |
US $5.62 |
||
|
75145R
|
75145R
MB461470 COVER, FR SEAT ANCHOR, RH |
MB461470 |
US $5.62 |
||
|
75145R
|
75145R
MB703182 COVER, FR SEAT ANCHOR, RH |
MB703182 |
US $5.62 |
||
|
75145R
|
75145R
MB718151 COVER, FR SEAT ANCHOR, RH |
MB718151 |
US $5.62 |
||
|
75146R
|
75146R
MB726940
COVER,FR SEAT BACK,RH
|
MB726940 |
— | ||
|
75146R
|
75146R
MB726941
COVER,FR SEAT BACK,RH
|
MB726941 |
— | ||
|
75146R
|
75146R
MB726942
COVER,FR SEAT BACK,RH
|
MB726942 |
— | ||
|
75146R
|
75146R
MB726946
COVER,FR SEAT BACK,RH
|
MB726946 |
— | ||
|
75146R
|
75146R
MB726947
COVER,FR SEAT BACK,RH
|
MB726947 |
— | ||
|
75146R
|
75146R
MB726948
COVER,FR SEAT BACK,RH
|
MB726948 |
— | ||
|
75146R
|
75146R
MB726952
COVER,FR SEAT BACK,RH
|
MB726952 |
— | ||
|
75146R
|
75146R
MB726953
COVER,FR SEAT BACK,RH
|
MB726953 |
— | ||
|
75146R
|
75146R
MB726954
COVER,FR SEAT BACK,RH
|
MB726954 |
— | ||
|
75147R
|
75147R
MB727026
COVER,FR SEAT CUSHION,RH
|
MB727026 |
— | ||
|
75147R
|
75147R
MB727027
COVER,FR SEAT CUSHION,RH
|
MB727027 |
— | ||
|
75147R
|
75147R
MB727028
COVER,FR SEAT CUSHION,RH
|
MB727028 |
— | ||
|
75147R
|
75147R
MB727032
COVER,FR SEAT CUSHION,RH
|
MB727032 |
— | ||
|
75147R
|
75147R
MB727033
COVER,FR SEAT CUSHION,RH
|
MB727033 |
— | ||
|
75147R
|
75147R
MB727034
COVER,FR SEAT CUSHION,RH
|
MB727034 |
— | ||
|
75147R
|
75147R
MB727038
COVER,FR SEAT CUSHION,RH
|
MB727038 |
— | ||
|
75147R
|
75147R
MB727039
COVER,FR SEAT CUSHION,RH
|
MB727039 |
— | ||
|
75147R
|
75147R
MB727040
COVER,FR SEAT CUSHION,RH
|
MB727040 |
— | ||
|
75153R
|
75153R
MB445578 COVER, FR SEAT SIDE SHIELD, RH |
MB445578 |
US $25.16 |
||
|
75153R
|
75153R
MB524723 COVER, FR SEAT SIDE SHIELD, RH |
MB524723 |
US $25.16 |
||
|
75153R
|
75153R
MB718155 COVER, FR SEAT SIDE SHIELD, RH |
MB718155 |
US $25.16 |
||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB467132 GUIDE, FR SEAT HEADRESTW/lock |
MB467132 |
US $9.62 |
||
|
75175
|
75175
MB723583 GUIDE, FR SEAT HEADRESTW/lock |
MB723583 |
US $12.14 |
||
|
75177
|
75177
MB724399
HEADREST,FR SEAT
|
MB724399 |
— | ||
|
75177
|
75177
MB724400
HEADREST,FR SEAT
|
MB724400 |
— | ||
|
75177
|
75177
MB726900
HEADREST,FR SEAT
|
MB726900 |
— | ||
|
75177
|
75177
MB727282
HEADREST,FR SEAT
|
MB727282 |
— | ||
|
75177
|
75177
MB727283
HEADREST,FR SEAT
|
MB727283 |
— | ||
|
75177
|
75177
MB727284
HEADREST,FR SEAT
|
MB727284 |
— | ||
|
75192
|
75192
MB469943 LEVER, FR SEAT LUMBAR SUPPORT |
MB469943 |
US $31.08 |
||
|
75192
|
75192
MB705908 LEVER, FR SEAT LUMBAR SUPPORT |
MB705908 |
US $28.12 |
||
|
75192
|
75192
MB727260 LEVER,FR SEAT LUMBAR SUPPORT |
MB727260 |
US $17.76 |
||
|
75193
|
75193
MB469941 LEVER, FR SEAT SIDE SUPPORT |
MB469941 |
US $24.42 |
||
|
75193
|
75193
MB705907 LEVER, FR SEAT SIDE SUPPORT |
MB705907 |
US $24.42 |
||
|
75193
|
75193
MB727259 LEVER,FR SEAT SIDE SUPPORT |
MB727259 |
US $17.76 |
||
|
75206R
|
75206R
MB719006
PANEL,FR SEAT BACK,RH
|
MB719006 |
— | ||
|
75206R
|
75206R
MB719007
PANEL,FR SEAT BACK,RH
|
MB719007 |
— | ||
|
75206R
|
75206R
MB719008
PANEL,FR SEAT BACK,RH
|
MB719008 |
— | ||
|
75206R
|
75206R
MB719012
PANEL,FR SEAT BACK,RH
|
MB719012 |
— | ||
|
75206R
|
75206R
MB719013
PANEL,FR SEAT BACK,RH
|
MB719013 |
— | ||
|
75206R
|
75206R
MB719014
PANEL,FR SEAT BACK,RH
|
MB719014 |
— | ||
|
75214
|
75214
MB389118 PROTECTOR, FR SEAT FRAME |
MB389118 |
US $4.74 |
||
|
75284
|
75284
MB342243 WIRE, FR SEAT |
MB342243 |
US $3.40 |
||
|
75602
|
75602
MB452143
ADJUSTER,FR SEAT HEIGHT
|
MB452143 |
— | ||
|
75602
|
75602
MB524741
ADJUSTER,FR SEAT HEIGHT
|
MB524741 |
— | ||
|
75602
|
75602
MB718153
ADJUSTER,FR SEAT HEIGHT
|
MB718153 |
— | ||
|
75604B
|
75604B
MB445622 ADJUSTER, FR SEAT SLIDE, RH |
MB445622 |
US $111.74 |
||
|
75604B
|
75604B
MB524740
ADJUSTER,FR SEAT SLIDE,RH
|
MB524740 |
— | ||
|
75604B
|
75604B
MB718152
ADJUSTER,FR SEAT SLIDE,RH
|
MB718152 |
— | ||
|
75604C
|
75604C
MB323594 ADJUSTER, FR SEAT SLIDE |
MB323594 |
US $104.34 |
||
|
75615R
|
75615R
MB450844 COVER, FR SEAT SLIDE ADJUSTER, RH |
MB450844 |
US $8.14 |
||
|
75615R
|
75615R
MB524724
COVER,FR SEAT SLIDE ADJUSTER,RH
|
MB524724 |
— | ||
|
75615R
|
75615R
MB718148
COVER,FR SEAT SLIDE ADJUSTER,RH
|
MB718148 |
— | ||
|
75617R
|
75617R
MB469180 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB469180 |
US $11.40 |
||
|
75617R
|
75617R
MB469182 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB469182 |
US $11.40 |
||
|
75617R
|
75617R
MB723513 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB723513 |
US $12.43 |
||
|
75622R
|
75622R
MB469188 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB469188 |
US $10.06 |
||
|
75622R
|
75622R
MB469190 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB469190 |
US $10.06 |
||
|
75622R
|
75622R
MB723511 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB723511 |
US $10.06 |
||
|
83087
|
83087
MB372588
HARNESS,SEAT HEATER
|
MB372588 |
— |
