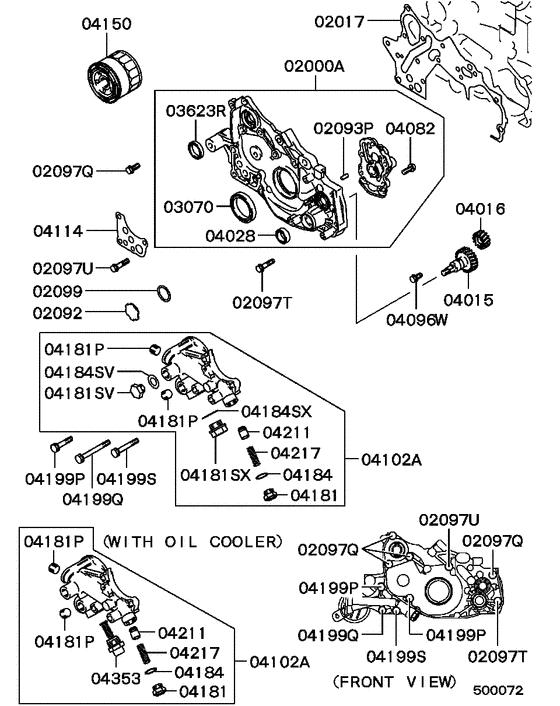

Oil pump & oil filter Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02000A
|
02000A
MD128569
CASE ASSY, CYLINDER BLOCK, FR
|
MD128569 |
— | ||
|
02017
|
02017
MD014194
GASKET, ENG FR CASE
|
MD014194 |
— | ||
| replacement | |||||
|
02017
|
02017
MD149393 GASKET, ENG FR CASE |
MD149393 |
from US $17.78 |
||
|
02092
|
02092
MD125376 PLUG, ENG FR CASE |
MD125376 |
from US $6.24 |
||
|
02093P
|
02093P
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
02097Q
|
02097Q
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
02097T
|
02097T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
02097U
|
02097U
MF140233 BOLT, ENG FR CASEFlange,8x40 |
MF140233 |
from US $1.07 |
||
|
02099
|
02099
MD041021 O-RING, ENG FR CASED=26.2 |
MD041021 |
from US $1.95 |
||
|
03070
|
03070
MD050606
OIL SEAL, CRANKSHAFT, FR
|
MD050606 |
— | ||
| replacement | |||||
|
03070
|
03070
MD343563 OIL SEAL, CRANKSHAFT, FR |
MD343563 |
from US $15.19 |
||
|
03623R
|
03623R
MD050608
OIL SEAL, BALANCER SHAFT, FR RH
|
MD050608 |
— | ||
| replacement | |||||
|
03623R
|
03623R
MD343565 OIL SEAL, BALANCER SHAFT, FR LH |
MD343565 |
from US $10.55 |
||
|
04015
|
04015
MD126658 GEAR, ENG OIL PUMP DRIVE |
MD126658 |
US $125.80 |
||
|
04016
|
04016
MD125361 GEAR, ENG OIL PUMP DRIVEN |
MD125361 |
US $54.72 |
||
|
04028
|
04028
MD096264
OIL SEAL, ENG OIL PUMP DRIVE GEAR SHAFT
|
MD096264 |
— | ||
| replacement | |||||
|
04028
|
04028
MD168057 OIL SEAL, ENG OIL PUMP DRIVE GEAR SHAFT |
MD168057 |
from US $8.46 |
||
|
04082
|
04082
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
04096W
|
04096W
MD040758 BOLT, BALANCER BELT TRAINFlange,8x16 |
MD040758 |
from US $1.42 |
||
|
04102A
|
04102A
MD131159
BRACKET ASSY,OIL FILTER
|
MD131159 |
— | ||
|
04114
|
04114
MD041018
GASKET, OIL FILTER BRACKET
|
MD041018 |
— | ||
| replacement | |||||
|
04114
|
04114
MD149370 GASKET, OIL FILTER BRACKET |
MD149370 |
from US $4.25 |
||
|
04150
|
04150
MD031805
OIL FILTER
|
MD031805 |
— | ||
| replacement | |||||
|
04150
|
04150
MD360935 OIL FILTERCartridge type |
MD360935 |
from US $10.57 |
||
|
04150
|
04150
MD071462
OIL FILTER
|
MD071462 |
— | ||
|
04181
|
04181
MD001404 PLUG, CYLINDER HEADScrew,d=18 |
MD001404 |
from US $4.95 |
||
|
04181P
|
04181P
MD145018 PLUG, OIL FILTER INRTaper,3/8 |
MD145018 |
from US $3.51 |
||
|
04181P
|
04181P
MS661122 PLUG, CYLINDER HEADTaper,3/8 |
MS661122 |
US $2.81 |
||
|
04181SV
|
04181SV
MF665005
PLUG, ENG FR CASE
|
MF665005 |
— | ||
|
04181SX
|
04181SX
MD131160 PLUG, OIL FILTER INRScrew,24 |
MD131160 |
US $8.58 |
||
|
04184
|
04184
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
04184SV
|
04184SV
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
04184SX
|
04184SX
MF660040 GASKET, CYLINDER BLOCKD=24 |
MF660040 |
US $1.50 |
||
|
04199P
|
04199P
MF241261 BOLT, ENG FR CASEWasher assembled,8x40 |
MF241261 |
US $3.56 |
||
|
04199Q
|
04199Q
MF241268 BOLT, ENG OIL PANWasher assembled,8x75 |
MF241268 |
US $1.37 |
||
|
04199S
|
04199S
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
04211
|
04211
MD001402 PLUNGER, OIL FILTER BRACKET RELIEF |
MD001402 |
from US $6.84 |
||
|
04217
|
04217
MD050299 SPRING, ENG OIL RELIEF PLUNGER |
MD050299 |
US $3.15 |
||
