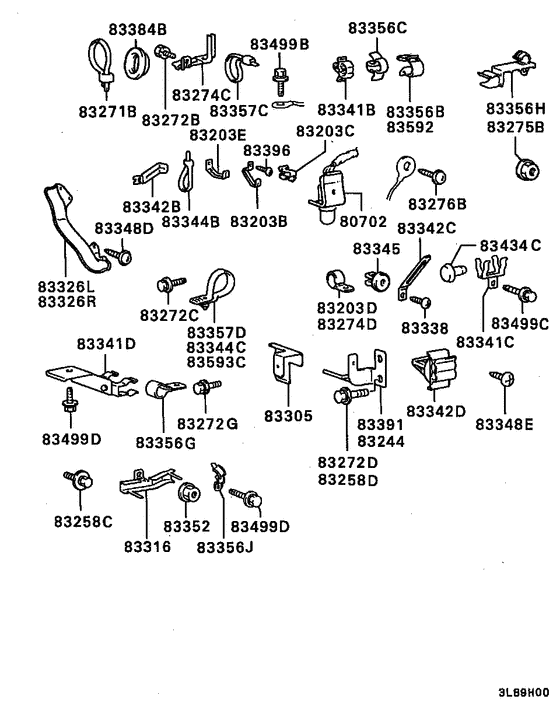

Wiring & attaching parts (ATTACHING PARTS) Diagram Mitsubishi SAPPORO
- Year
- 1987 - 1989
- Sales region
- EUR
- Note
- SAPPORO(HARDTOP/MPI/ANTI-POLL),4FA/T LHD
- transmission
- 4FA/T
- grade
- SAPPORO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80702
|
80702
MB327240 BRACKET, GLOVEBOX LAMP |
MB327240 |
US $5.62 |
||
|
83203B
|
83203B
MB327238 CLIP, FLOOR CONSOLE75 |
MB327238 |
US $2.96 |
||
|
83203B
|
83203B
MS470069 CLIP, FLOOR CONSOLEL=80 |
MS470069 |
US $2.37 |
||
|
83203C
|
83203C
MB327239 CLIP, INSTRUMENT PANEL UNDER TRIM |
MB327239 |
US $3.40 |
||
|
83203D
|
83203D
MF477025 CLIP, FUEL LINED=12 |
MF477025 |
US $2.05 |
||
|
83203E
|
83203E
MB379519 CLIP, FLOOR CONSOLE71 |
MB379519 |
US $3.26 |
||
|
83244
|
83244
MB543654 BRACKET, CHASSIS WIRING |
MB543654 |
US $18.50 |
||
|
83258C
|
83258C
MF247202 BOLT, CHASSIS WIRINGWasher assembled,5x12 |
MF247202 |
US $2.37 |
||
|
83258D
|
83258D
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
83271B
|
83271B
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
83272B
|
83272B
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
83272C
|
83272C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83272D
|
83272D
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
83272G
|
83272G
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
83274C
|
83274C
MB261622
CLIP, ENG WIRING
|
MB261622 |
— | ||
|
83274D
|
83274D
MF477026 CLIP, FUEL LINED=15 |
MF477026 |
US $2.52 |
||
|
83274D
|
83274D
MF477029 CLIP, ENG AIR INTAKE LINED=25 |
MF477029 |
US $1.78 |
||
|
83275B
|
83275B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
83276B
|
83276B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
83305
|
83305
MB572799
BRACKET,HARNESS CONNECTOR
|
MB572799 |
— | ||
|
83316
|
83316
MB487687
GUIDE,HARNESS
|
MB487687 |
— | ||
|
83326L
|
83326L
MB306251 PROTECTOR, CHASSIS HARNESS, LH |
MB306251 |
US $7.10 |
||
|
83326R
|
83326R
MB306252 PROTECTOR, CHASSIS HARNESS, RH |
MB306252 |
US $6.81 |
||
|
83338
|
83338
MF455045 SCREW, FUEL LINETapping,6x12 |
MF455045 |
US $2.37 |
||
|
83341B
|
83341B
MB381823 CLAMP, WIRING |
MB381823 |
US $3.85 |
||
|
83341C
|
83341C
MB414177 CLAMP, ABS CONTROL EQUIP |
MB414177 |
US $9.03 |
||
|
83341D
|
83341D
MB414492 CLAMP, ABS CONTROL EQUIP |
MB414492 |
US $24.42 |
||
|
83342B
|
83342B
MB056746 CLIP, FUEL VAPOR CONTROL LINE40 |
MB056746 |
US $2.37 |
||
|
83342B
|
83342B
MB056747 CLIP, FUEL VAPOR CONTROL LINE60 |
MB056747 |
US $3.85 |
||
|
83342C
|
83342C
MB197208 CLIP, FUEL FILLER LID LOCKING5-5 |
MB197208 |
US $4 |
||
|
83342D
|
83342D
MS470056 CLIP, DISTRIBUTORL=25 |
MS470056 |
US $4.14 |
||
|
83344B
|
83344B
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
83344C
|
83344C
MS470401 CLIP, WIRING, NO.2D7 l40 |
MS470401 |
US $2.74 |
||
|
83345
|
83345
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
83348D
|
83348D
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
83348E
|
83348E
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
83352
|
83352
MB133764
NUT, FUEL LINE
|
MB133764 |
— | ||
| replacement | |||||
|
83352
|
83352
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
83356B
|
83356B
MB070440 CLIP, CRUISE CONTROL ELECTRICALS9 |
MB070440 |
US $4.51 |
||
|
83356B
|
83356B
MB114454 CLIP, CRUISE CONTROL ELECTRICALS24 |
MB114454 |
US $4.14 |
||
|
83356C
|
83356C
MB011808 CLIP, FUEL FILLER LID LOCKING6 |
MB011808 |
US $2.74 |
||
|
83356G
|
83356G
MB381822 CLIP, WIRING15 |
MB381822 |
US $3.40 |
||
|
83356H
|
83356H
MB354736 CLIP, WIRING5-7.2 |
MB354736 |
US $5.62 |
||
|
83356J
|
83356J
MB381356
CLIP,WIRING
|
MB381356 |
— | ||
|
83357C
|
83357C
MB084081 BAND, WATER HEATERL=169.5 |
MB084081 |
US $2.96 |
||
|
83357D
|
83357D
MS470401 CLIP, WIRING, NO.2D7 l40 |
MS470401 |
US $2.74 |
||
|
83357D
|
83357D
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
|
83357D
|
83357D
MS470405 BAND, CHOKE CABLED7,l100 |
MS470405 |
US $3.11 |
||
|
83384B
|
83384B
MB306580 GROMMET, CHASSIS WIRING66.5x75.5(28x36) |
MB306580 |
US $8.44 |
||
|
83384B
|
83384B
MB381930 GROMMET, ABS CONTROL EQUIP65.5x75.5(15x23) |
MB381930 |
US $8.44 |
||
|
83396
|
83396
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
83434C
|
83434C
MS660153 PLUG, CLUTCH M/CYL8 |
MS660153 |
US $2.81 |
||
|
83499B
|
83499B
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
83499B
|
83499B
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
83499C
|
83499C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
83499D
|
83499D
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83592
|
83592
MB070440 CLIP, CRUISE CONTROL ELECTRICALS9 |
MB070440 |
US $4.51 |
||
|
83593C
|
83593C
MS470401 CLIP, WIRING, NO.2D7 l40 |
MS470401 |
US $2.74 |
||
