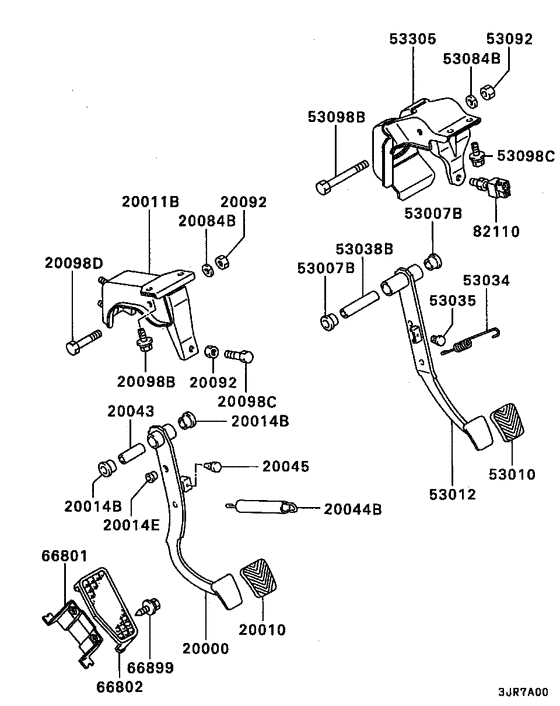

Brake & clutch pedal (M/T) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1992
- Sales region
- Japan
- Note
- 20E(SEDAN),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20E
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB599197 PEDAL, CLUTCH |
MB599197 |
US $63.64 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20011B
|
20011B
MB864088 BRACKET, CLUTCH PEDAL |
MB864088 |
US $76.22 |
||
|
20014B
|
20014B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
20014E
|
20014E
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $4.11 |
||
|
20043
|
20043
MB599998 SPACER, CLUTCH PEDAL14x49.3 |
MB599998 |
US $6.07 |
||
|
20044B
|
20044B
MB012212 SPRING, BRAKE PEDAL RETURN |
MB012212 |
US $5.88 |
||
|
20045
|
20045
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092
|
20092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098B
|
20098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20098C
|
20098C
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
20098D
|
20098D
MF104896 BOLT, RR SUSP SPRING10x65 |
MF104896 |
from US $1.97 |
||
|
53007B
|
53007B
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MB599442 PEDAL, BRAKE |
MB599442 |
US $67.34 |
||
|
53034
|
53034
MB316046 SPRING, BRAKE PEDAL RETURN |
MB316046 |
US $3.85 |
||
|
53035
|
53035
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
53038B
|
53038B
MB599997 SPACER, CLUTCH PEDAL14x79.5 |
MB599997 |
US $7.99 |
||
|
53084B
|
53084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098B
|
53098B
MB316045
BOLT, CLUTCH PEDAL
|
MB316045 |
— | ||
| replacement | |||||
|
53098B
|
53098B
MF104902 BOLT, CLUTCH PEDAL10x100 |
MF104902 |
US $4.65 |
||
|
53098C
|
53098C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53305
|
53305
MB864085 MEMBER, PEDAL SUPPORT |
MB864085 |
US $113.22 |
||
|
66801
|
66801
MB312168
BRACKET, FOOTREST
|
MB312168 |
— | ||
|
66802
|
66802
MB319436 FOOTREST |
MB319436 |
US $9.03 |
||
|
66899
|
66899
MS240055 BOLT, RR BUMPERWasher assembled,6x20 |
MS240055 |
US $2.07 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
