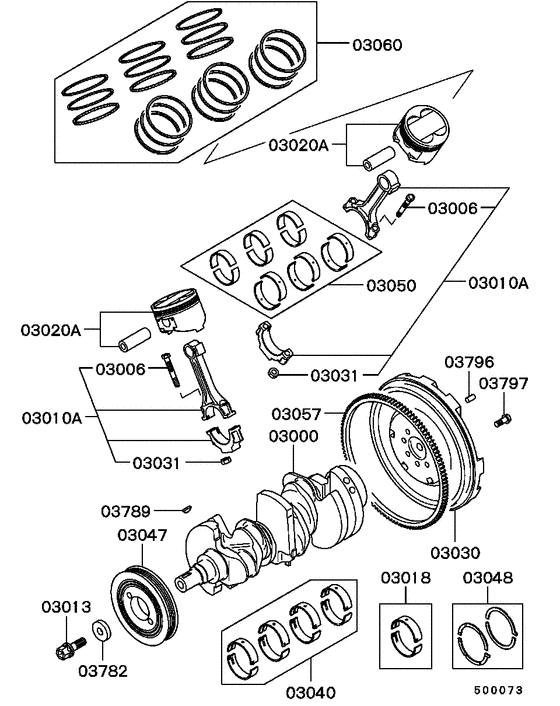

Piston & crankshaft (M/T) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1992
- Sales region
- Japan
- Note
- 20E(SEDAN),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20E
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD144523 CRANKSHAFT |
MD144523 |
US $2,073.60 |
||
|
03006
|
03006
MD098283 BOLT, CONNROD |
MD098283 |
US $6.66 |
||
|
03010A
|
03010A
MD116068 CONNECTING ROD ASSY |
MD116068 |
US $253.08 |
||
|
03013
|
03013
MD095201
CENTER BOLT, CRANKSHAFT PULLEY
|
MD095201 |
— | ||
| replacement | |||||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $9.30 |
||
|
03018
|
03018
MD197608 BEARING, CRANKSHAFTPlain,std 1 |
MD197608 |
US $39.96 |
||
| replacement | |||||
|
03018
|
03018
1052A360 BEARING, CRANKSHAFTPlain,std 1 |
1052A360 |
from US $12.58 |
||
|
03018
|
03018
MD197609
BEARING, CRANKSHAFT
|
MD197609 |
— | ||
| replacement | |||||
|
03018
|
03018
1052A361 BEARING, CRANKSHAFTPlain,std 2 |
1052A361 |
from US $15.31 |
||
|
03018
|
03018
MD197610 BEARING, CRANKSHAFTPlain,std 3 |
MD197610 |
US $39.96 |
||
| replacement | |||||
|
03018
|
03018
1052A362 BEARING, CRANKSHAFTPlain,std 3 |
1052A362 |
from US $16.17 |
||
|
03018
|
03018
MD197611 BEARING, CRANKSHAFTPlain,std 4 |
MD197611 |
US $39.96 |
||
| replacement | |||||
|
03018
|
03018
1052A363 BEARING, CRANKSHAFTPlain,std 4 |
1052A363 |
from US $17.37 |
||
|
03018
|
03018
MD197612 BEARING, CRANKSHAFTPlain,std 5 |
MD197612 |
US $39.96 |
||
| replacement | |||||
|
03018
|
03018
1052A364 BEARING, CRANKSHAFTPlain,std 5 |
1052A364 |
from US $16.17 |
||
|
03020A
|
03020A
MD153752 PISTON & PIN ASSYStd a |
MD153752 |
US $91.76 |
||
|
03020A
|
03020A
MD153753 PISTON & PIN ASSYStd b |
MD153753 |
US $139.86 |
||
|
03020A
|
03020A
MD153754 PISTON & PIN ASSYStd c |
MD153754 |
US $91.76 |
||
|
03020A
|
03020A
MD153758 PISTON & PIN ASSYO/size 0.25 |
MD153758 |
US $139.86 |
||
|
03020A
|
03020A
MD153759 PISTON & PIN ASSYO/size 0.50 |
MD153759 |
US $139.86 |
||
|
03020A
|
03020A
MD153760 PISTON & PIN ASSYO/size 0.75 |
MD153760 |
US $139.86 |
||
|
03020A
|
03020A
MD153761 PISTON & PIN ASSYO/size 1.00 |
MD153761 |
US $139.86 |
||
|
03030
|
03030
MD108664 FLYWHEEL |
MD108664 |
US $253.08 |
||
|
03031
|
03031
MD000704 NUT, CONNROD8 |
MD000704 |
from US $2.22 |
||
|
03040
|
03040
MD105269 BEARING SET, CRANKSHAFTPlain,std |
MD105269 |
US $204.24 |
||
|
03047
|
03047
MD138339 PULLEY, CRANKSHAFTRibbed |
MD138339 |
US $414.96 |
||
|
03048
|
03048
MD116890
THRUST BEARING SET, CRANKSHAFT
|
MD116890 |
— | ||
| replacement | |||||
|
03048
|
03048
1052A271 THRUST BEARING SET, CRANKSHAFTPlain |
1052A271 |
from US $15.97 |
||
|
03050
|
03050
MD116868 BEARING SET, CONNRODPlain,std |
MD116868 |
US $121.36 |
||
|
03057
|
03057
MD030629 RING GEAR, FLYWHEELN=106 |
MD030629 |
US $207.94 |
||
|
03060
|
03060
MD104889 RING SET, PISTONStd |
MD104889 |
US $356.72 |
||
|
03060
|
03060
MD104890 RING SET, PISTONO/size 0.25 |
MD104890 |
US $356.72 |
||
|
03060
|
03060
MD104891 RING SET, PISTONO/size 0.50 |
MD104891 |
US $356.72 |
||
|
03060
|
03060
MD104892 RING SET, PISTONO/size 0.75 |
MD104892 |
US $356.72 |
||
|
03060
|
03060
MD104893 RING SET, PISTONO/size 1.00 |
MD104893 |
US $356.72 |
||
|
03782
|
03782
MD096930
WASHER, CRANKSHAFT PULLEY
|
MD096930 |
— | ||
| replacement | |||||
|
03782
|
03782
MR994412 WASHER, CRANKSHAFT PULLEY14.5 |
MR994412 |
from US $4.97 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.81 |
||
|
03797
|
03797
MD113400 BOLT, A/T DRIVE PLATEFlange,10x25 |
MD113400 |
from US $3.26 |
||
