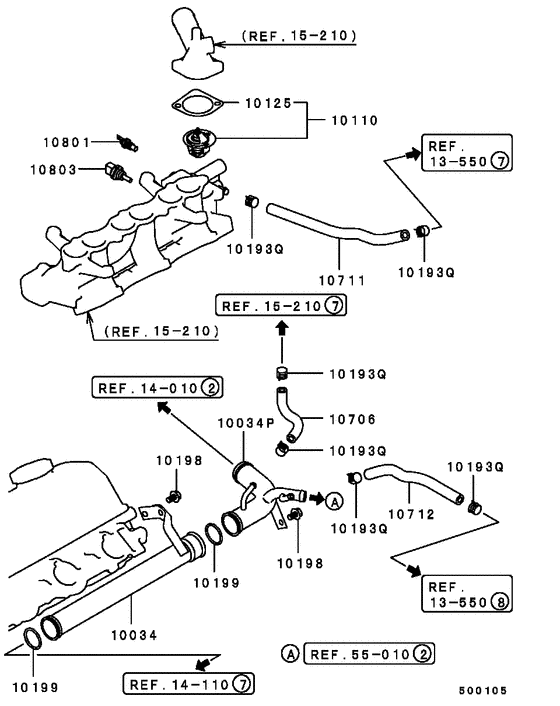

Water pipe & thermostat (ALL) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1992
- Sales region
- Japan
- Note
- 20E(SEDAN),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20E
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD103968
PIPE, WATER PUMP INLET
|
MD103968 |
— | ||
|
10034P
|
10034P
MD164063 PIPE, WATER PUMP INLET |
MD164063 |
US $79.18 |
||
|
10110
|
10110
MD997604 THERMOSTAT KIT88 |
MD997604 |
US $45.83 |
||
| replacement | |||||
|
10110
|
10110
MD972903 THERMOSTAT KIT88 |
MD972903 |
from US $34.18 |
||
|
10125
|
10125
MD143639
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD143639 |
— | ||
| replacement | |||||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
US $8.48 |
||
|
10125
|
10125
MD171446 GASKET, THERMOSTAT WATER HOSE FITTING |
MD171446 |
US $7.55 |
||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
US $8.48 |
||
|
10193Q
|
10193Q
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10706
|
10706
MD103788 HOSE, THERMOSTAT WATER BY-PASS |
MD103788 |
US $7.52 |
||
|
10711
|
10711
MD021469 HOSE, CARB WATER RETURN |
MD021469 |
from US $6.06 |
||
|
10712
|
10712
MD165196 HOSE, THROTTLE BODY WATER RETURN8x210 |
MD165196 |
from US $6.84 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD149338 SENSOR UNIT, WATER TEMPERATURE |
MD149338 |
from US $82.08 |
||
|
