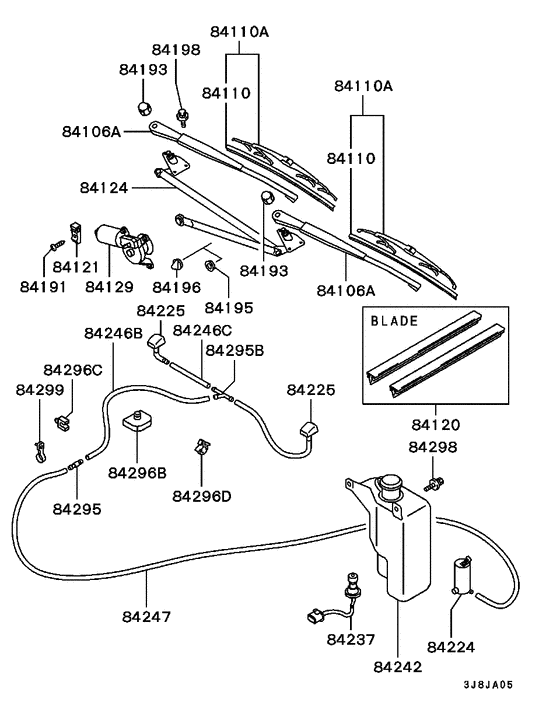

Windshield wiper & washer Diagram Mitsubishi SIGMA
- Year
- 1990 - 1992
- Sales region
- Japan
- Note
- 20E(SEDAN),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- 20E
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106A
|
84106A
MB696661 ARM, WINDSHIELD WIPER |
MB696661 |
US $48.10 |
||
|
84106A
|
84106A
MB696662 ARM, WINDSHIELD WIPER |
MB696662 |
US $51.06 |
||
|
84106A
|
84106A
MB696663 ARM, WINDSHIELD WIPER |
MB696663 |
US $66.60 |
||
|
84106A
|
84106A
MB696664 ARM, WINDSHIELD WIPER |
MB696664 |
US $69.56 |
||
|
84110
|
84110
MB359921
BLADE, WINDSHIELD WIPER (475 mm)
|
MB359921 |
— | ||
| replacement | |||||
|
84110
|
84110
MB622852 BLADE, WINDSHIELD WIPER (475 mm)475 |
MB622852 |
US $15.05 |
||
|
84110
|
84110
MB696665 BLADE, WINDSHIELD WIPERL=500 |
MB696665 |
US $10.36 |
||
|
84110A
|
84110A
MB683713 BLADE ASSY, WINDSHIELD WIPER475 |
MB683713 |
US $39.96 |
||
|
84110A
|
84110A
MB696660 BLADE ASSY, WINDSHIELD WIPER500 |
MB696660 |
US $53.28 |
||
|
84120
|
84120
MB860417 BLADE SET, WINDSHIELD WIPER |
MB860417 |
US $26.64 |
||
|
84121
|
84121
MB617725 INSULATOR, WINDSHIELD WIPER MOTOR |
MB617725 |
US $6.51 |
||
|
84124
|
84124
MB617796 LINK, WINDSHIELD WIPER |
MB617796 |
US $89.54 |
||
|
84124
|
84124
MB623957 LINK, WINDSHIELD WIPER |
MB623957 |
US $170.20 |
||
|
84129
|
84129
MB617790 MOTOR, WINDSHIELD WIPER |
MB617790 |
US $301.39 |
||
|
84191
|
84191
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
84193
|
84193
MS440074 NUT, PTO GEARSHIFT LINKCap,8 |
MS440074 |
from US $2.63 |
||
|
84195
|
84195
MU670035 PLUG, BODY30 |
MU670035 |
from US $2.77 |
||
|
84196
|
84196
MB617724 GROMMET, WINDSHIELD WIPER30 |
MB617724 |
US $6.81 |
||
|
84198
|
84198
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
84224
|
84224
MB286961 MOTOR, WINDSHIELD WASHER |
MB286961 |
US $69.83 |
||
|
84225
|
84225
MB763947 NOZZLE, WINDSHIELD WASHER |
MB763947 |
US $16.28 |
||
|
84225
|
84225
MB763948 NOZZLE, WINDSHIELD WASHER |
MB763948 |
US $16.28 |
||
|
84225
|
84225
MB763950 NOZZLE, WINDSHIELD WASHER |
MB763950 |
US $16.28 |
||
|
84225
|
84225
MB763953 NOZZLE, WINDSHIELD WASHER |
MB763953 |
US $16.28 |
||
|
84225
|
84225
MB763956 NOZZLE, WINDSHIELD WASHER |
MB763956 |
US $19.24 |
||
|
84225
|
84225
MB763957 NOZZLE, WINDSHIELD WASHER |
MB763957 |
US $19.24 |
||
|
84225
|
84225
MB763959 NOZZLE, WINDSHIELD WASHER |
MB763959 |
US $19.24 |
||
|
84225
|
84225
MB763962 NOZZLE, WINDSHIELD WASHER |
MB763962 |
US $19.24 |
||
|
84225
|
84225
MB782281 NOZZLE, WINDSHIELD WASHER |
MB782281 |
US $16.28 |
||
|
84225
|
84225
MB782282 NOZZLE, WINDSHIELD WASHER |
MB782282 |
US $16.28 |
||
|
84225
|
84225
MB782283 NOZZLE, WINDSHIELD WASHER |
MB782283 |
US $19.24 |
||
|
84225
|
84225
MB782284 NOZZLE, WINDSHIELD WASHER |
MB782284 |
US $13.76 |
||
|
84225
|
84225
MB963241 NOZZLE, WINDSHIELD WASHER |
MB963241 |
US $16.28 |
||
|
84225
|
84225
MB963242 NOZZLE, WINDSHIELD WASHER |
MB963242 |
US $18.50 |
||
|
84237
|
84237
MB821463 SWITCH, WINDSHIELD WASHER TANK FLUID LEVEL |
MB821463 |
US $62.16 |
||
|
84242
|
84242
MB821461 TANK, WINDSHIELD WASHER |
MB821461 |
US $34.04 |
||
|
84246B
|
84246B
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84246C
|
84246C
MB140830 TUBE, BODY WIRINGRubber,4x10000 |
MB140830 |
US $45.14 |
||
|
84247
|
84247
MB140830 TUBE, BODY WIRINGRubber,4x10000 |
MB140830 |
US $45.14 |
||
|
84295
|
84295
MB083730 JOINT, RR WINDOW WASHER |
MB083730 |
from US $1.07 |
||
|
84295B
|
84295B
MB623192 JOINT, WINDSHIELD WASHER |
MB623192 |
from US $1.15 |
||
|
84296B
|
84296B
MB529507 CLIP, WINDSHIELD WASHER7x3 |
MB529507 |
US $4.24 |
||
|
84296C
|
84296C
MU481044 CLIP, WINDSHIELD WASHER8 |
MU481044 |
from US $1.87 |
||
|
84296D
|
84296D
MU481163 CLIP, WINDSHIELD WASHER7 |
MU481163 |
US $3.15 |
||
|
84298
|
84298
MS240411 BOLT, ENG CONTROL EQUIPWasher assembled,6x20 |
MS240411 |
US $1.92 |
||
|
84299
|
84299
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
