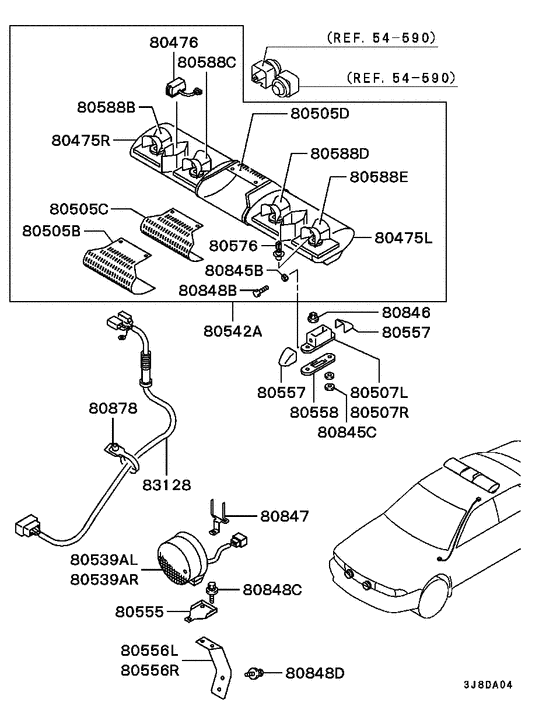

Beacon lamp (TRANSVERSE BEACON LAMP) Diagram Mitsubishi SIGMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Note
- PATROL-CAR(WHITE/BLACK),4FA/T
- transmission
- 4FA/T
- grade
- PATROL-CAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80475L
|
80475L
MB884625 BODY, ROTATING LAMP, LH |
MB884625 |
US $1,403.58 |
||
|
80475L
|
80475L
MR107524 BODY, ROTATING LAMP, LH |
MR107524 |
US $1,361.36 |
||
|
80475R
|
80475R
MB884624 BODY, ROTATING LAMP, RH |
MB884624 |
US $1,403.58 |
||
|
80475R
|
80475R
MR107522 BODY, ROTATING LAMP, RH |
MR107522 |
US $1,361.36 |
||
|
80476
|
80476
MB884633 SENSOR, ROTATING LAMP FAILURE |
MB884633 |
US $1,147.33 |
||
|
80476
|
80476
MR107526 SENSOR, ROTATING LAMP FAILURE |
MR107526 |
US $1,110.93 |
||
|
80505B
|
80505B
MB884634 COVER, ROTATING LAMP |
MB884634 |
US $1,233.23 |
||
|
80505B
|
80505B
MR107525 COVER, ROTATING LAMP |
MR107525 |
US $1,043.95 |
||
|
80505C
|
80505C
MB884626 COVER, ROTATING LAMP |
MB884626 |
US $1,027.94 |
||
|
80505D
|
80505D
MB884627 COVER, ROTATING LAMP |
MB884627 |
US $1,027.94 |
||
|
80507L
|
80507L
MB884391 BRACKET, ROTATING LAMP, LH |
MB884391 |
US $37 |
||
|
80507L
|
80507L
MR107533 BRACKET, ROTATING LAMP, LH |
MR107533 |
US $37 |
||
|
80507R
|
80507R
MB884392 BRACKET, ROTATING LAMP, RH |
MB884392 |
US $37 |
||
|
80507R
|
80507R
MR107534 BRACKET, ROTATING LAMP, RH |
MR107534 |
US $37 |
||
|
80539AL
|
80539AL
MB883723 LAMP ASSY, ROTATING, FR LH12v-23w |
MB883723 |
US $264.92 |
||
|
80539AR
|
80539AR
MB883724 LAMP ASSY, ROTATING, FR RH12v-23w |
MB883724 |
US $264.92 |
||
|
80542A
|
80542A
MB883704 LAMP ASSY, ROTATING12v-35w |
MB883704 |
US $9,576 |
||
|
80542A
|
80542A
MB884263 LAMP ASSY, ROTATING12v-35w |
MB884263 |
US $9,561.60 |
||
|
80542A
|
80542A
MR107502 LAMP ASSY, ROTATING12v-35w |
MR107502 |
US $9,806.40 |
||
|
80555
|
80555
MB883593 BRACKET, FR ROTATING LAMP, UPR |
MB883593 |
US $30.34 |
||
|
80556L
|
80556L
MB883589 BRACKET, FR ROTATING LAMP, LWR LH |
MB883589 |
US $67.34 |
||
|
80556R
|
80556R
MB883590 BRACKET, FR ROTATING LAMP, LWR RH |
MB883590 |
US $67.34 |
||
|
80557
|
80557
MB884390 CAP, ROTATING LAMP BRACKET |
MB884390 |
US $6.81 |
||
|
80558
|
80558
MB884522 GASKET, ROTATING LAMP BRACKET |
MB884522 |
US $28.12 |
||
|
80576
|
80576
MB884632 BULB, ROTATING LAMP12v-35w,halogen |
MB884632 |
US $26.64 |
||
|
80588B
|
80588B
MB884628 LAMP UNIT, ROTATING |
MB884628 |
US $856.13 |
||
|
80588B
|
80588B
MR107529 LAMP UNIT, ROTATING |
MR107529 |
US $912.91 |
||
|
80588C
|
80588C
MB884630 LAMP UNIT, ROTATING |
MB884630 |
US $856.13 |
||
|
80588C
|
80588C
MR107530 LAMP UNIT, ROTATING |
MR107530 |
US $912.91 |
||
|
80588D
|
80588D
MB884631 LAMP UNIT, ROTATING |
MB884631 |
US $856.13 |
||
|
80588D
|
80588D
MR107531 LAMP UNIT, ROTATING |
MR107531 |
US $912.91 |
||
|
80588E
|
80588E
MB884629 LAMP UNIT, ROTATING |
MB884629 |
US $856.13 |
||
|
80588E
|
80588E
MR107532 LAMP UNIT, ROTATING |
MR107532 |
US $912.91 |
||
|
80845B
|
80845B
MB425970 WASHER, ROTATING LAMP |
MB425970 |
US $2.81 |
||
|
80845B
|
80845B
MR107357 WASHER, ROTATING LAMPSpring,8 |
MR107357 |
US $2.22 |
||
|
80845C
|
80845C
MB288075 WASHER, STEERING COLUMN INRPlain,12.5 |
MB288075 |
US $2.52 |
||
|
80846
|
80846
MB288461 NUT, ENG OIL COOLER LINEFlange self locking,8 |
MB288461 |
US $2.37 |
||
|
80847
|
80847
MB685927 CLIP, CHASSIS ELECTRICALS |
MB685927 |
US $7.55 |
||
|
80848B
|
80848B
MB425969 BOLT, ROTATING LAMP8x25 |
MB425969 |
US $5.62 |
||
|
80848B
|
80848B
MR107356 BOLT, ROTATING LAMP8x18 |
MR107356 |
US $5.03 |
||
|
80848C
|
80848C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
80848D
|
80848D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
80878
|
80878
MS470401 CLIP, WIRING, NO.2D7 l40 |
MS470401 |
US $2.74 |
||
|
80878
|
80878
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
|
83128
|
83128
MB883695 HARNESS, ROTATING LAMP |
MB883695 |
US $99.90 |
