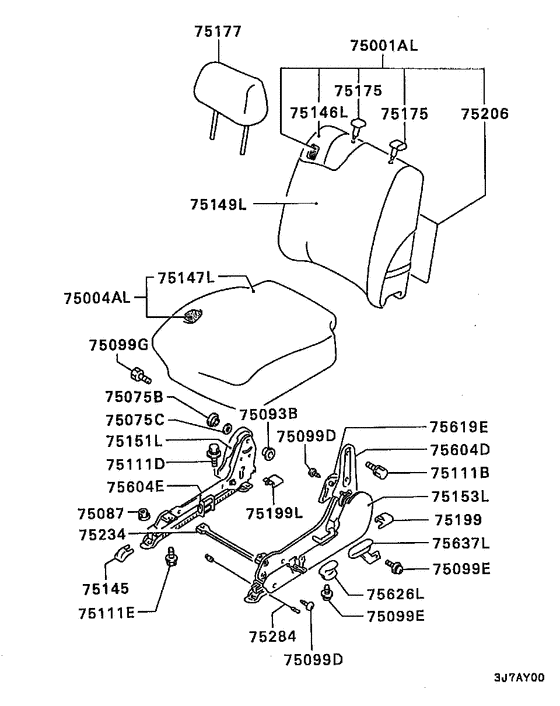

Front seat (LH) Diagram Mitsubishi SIGMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Note
- PATROL-CAR(WHITE/BLACK),4FA/T
- transmission
- 4FA/T
- grade
- PATROL-CAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB973209 BACK ASSY, FR SEAT, LH |
MB973209 |
US $1,569.60 |
||
|
75004AL
|
75004AL
MB973207 CUSHION ASSY, FR SEAT, LH |
MB973207 |
US $1,569.60 |
||
|
75075B
|
75075B
MB850061 WASHER, FR SEAT |
MB850061 |
US $2.66 |
||
|
75075C
|
75075C
MB902810 WASHER, FR SEAT |
MB902810 |
US $3.55 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75093B
|
75093B
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099E
|
75099E
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75099G
|
75099G
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75111B
|
75111B
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75145
|
75145
MB763885
COVER, FR SEAT ANCHOR
|
MB763885 |
— | ||
|
75146L
|
75146L
MB884707 COVER, FR SEAT BACK, LH |
MB884707 |
US $640.64 |
||
|
75147L
|
75147L
MB884705 COVER, FR SEAT CUSHION, LH |
MB884705 |
US $640.64 |
||
|
75149L
|
75149L
MB973214 OVERCOVER, FR SEAT BACK, LH |
MB973214 |
US $585.31 |
||
|
75151L
|
75151L
MB783281 COVER, FR SEAT HINGE, LH |
MB783281 |
US $19.24 |
||
|
75153L
|
75153L
MB783269 COVER, FR SEAT SIDE SHIELD, LH |
MB783269 |
US $70.30 |
||
|
75175
|
75175
MB783321 GUIDE, FR SEAT HEADRESTW/lock |
MB783321 |
US $11.40 |
||
|
75175
|
75175
MB783325 GUIDE, FR SEAT HEADRESTW/o lock |
MB783325 |
US $11.40 |
||
|
75177
|
75177
MB973211 HEADREST, FR SEAT |
MB973211 |
US $364 |
||
|
75199
|
75199
MB763886 COVER, FR SEAT ANCHOR, RR |
MB763886 |
US $2.22 |
||
|
75199L
|
75199L
MB763887 COVER, FR SEAT ANCHOR, RR LH |
MB763887 |
US $3.55 |
||
|
75206
|
75206
MB884701 PANEL, FR SEAT BACK |
MB884701 |
US $1,025.02 |
||
|
75234
|
75234
MB874054 BRACKET, FR SEAT SUPPORT |
MB874054 |
US $6.07 |
||
|
75284
|
75284
MB824466 WIRE, FR SEAT |
MB824466 |
US $7.25 |
||
|
75604D
|
75604D
MB824441 ADJUSTER, FR SEAT SLIDE |
MB824441 |
US $179.08 |
||
|
75604E
|
75604E
MB824443 ADJUSTER, FR SEAT SLIDE |
MB824443 |
US $179.08 |
||
|
75619E
|
75619E
MB850589 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MB850589 |
US $10.21 |
||
|
75626L
|
75626L
MB783351 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MB783351 |
US $14.50 |
||
|
75637L
|
75637L
MB783345 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MB783345 |
US $16.28 |
