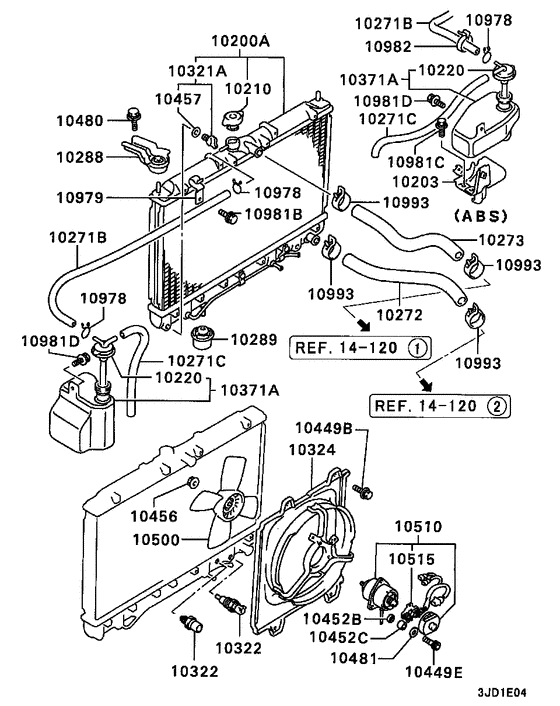

Radiator,hose & condenser tank (ALL) Diagram Mitsubishi SIGMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Note
- PATROL-CAR(WHITE/BLACK),4FA/T
- transmission
- 4FA/T
- grade
- PATROL-CAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MB660672 RADIATOR ASSY |
MB660672 |
US $1,300.21 |
||
|
10200A
|
10200A
MB924265 RADIATOR ASSY |
MB924265 |
US $1,684.80 |
||
|
10200A
|
10200A
MB924266 RADIATOR ASSY |
MB924266 |
US $1,497.60 |
||
|
10210
|
10210
MB660667
CAP, RADIATOR
|
MB660667 |
— | ||
| replacement | |||||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10220
|
10220
MB283720
CAP, RADIATOR CONDENSER TANK
|
MB283720 |
— | ||
| replacement | |||||
|
10220
|
10220
MN161264 CAP, RADIATOR CONDENSER TANK |
MN161264 |
from US $10.14 |
||
|
10220
|
10220
MB912257 CAP, RADIATOR CONDENSER TANK |
MB912257 |
US $8.58 |
||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10271C
|
10271C
MB356974 HOSE, RADIATOR CONDENSER TANK12x50-230 |
MB356974 |
US $8.14 |
||
|
10272
|
10272
MB660038
HOSE, RADIATOR, LWR
|
MB660038 |
— | ||
|
10273
|
10273
MB660033
HOSE, RADIATOR, UPR
|
MB660033 |
— | ||
|
10288
|
10288
MB660041 INSULATOR, RADIATOR SUPPORT, UPR |
MB660041 |
US $11.63 |
||
|
10289
|
10289
MB605172
INSULATOR, RADIATOR SUPPORT, LWR
|
MB605172 |
— | ||
|
10321A
|
10321A
MB597892 PLUG ASSY, RADIATOR |
MB597892 |
from US $3.61 |
||
|
10322
|
10322
MB356704
SENSOR, RADIATOR WATER TEMPERATURE
|
MB356704 |
— | ||
|
10322
|
10322
MB660663 SENSOR, RADIATOR WATER TEMPERATURE85 c |
MB660663 |
US $81.40 |
||
|
10322
|
10322
MB813171 SENSOR, RADIATOR WATER TEMPERATURE100 c |
MB813171 |
US $69.56 |
||
|
10322
|
10322
MB890504 SENSOR, RADIATOR WATER TEMPERATURE100 c |
MB890504 |
from US $86.58 |
||
|
10324
|
10324
MB906058 SHROUD, COOLING FAN |
MB906058 |
US $113.22 |
||
|
10371A
|
10371A
MB660170 TANK ASSY, RADIATOR CONDENSER |
MB660170 |
US $46.62 |
||
|
10449B
|
10449B
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
10449E
|
10449E
MB890273 BOLT, RADIATOR |
MB890273 |
US $4.74 |
||
|
10449E
|
10449E
MB890293 BOLT, RADIATOR5x11 |
MB890293 |
from US $1.79 |
||
|
10452B
|
10452B
MB890274 BUSHING, RADIATOR |
MB890274 |
US $2.22 |
||
|
10452C
|
10452C
MB890275 BUSHING, RADIATOR |
MB890275 |
US $2.22 |
||
|
10456
|
10456
MB356066
NUT, RADIATOR
|
MB356066 |
— | ||
| replacement | |||||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10480
|
10480
MU241006 BOLT, RADIATOR SUPPORTGimlet,8x20 |
MU241006 |
US $3.01 |
||
|
10481
|
10481
MB007712 WASHER, RADIATORPlain,5.1 |
MB007712 |
US $1.48 |
||
|
10500
|
10500
MB605389 FAN, COOLING |
MB605389 |
US $39.96 |
||
|
10510
|
10510
MB845024 MOTOR, COOLING FAN |
MB845024 |
US $419.33 |
||
|
10510
|
10510
MB924280 MOTOR, COOLING FAN |
MB924280 |
US $503.78 |
||
|
10515
|
10515
MB890240 BRUSH, COOLING FAN MOTOR |
MB890240 |
US $19.98 |
||
|
10515
|
10515
MB925055 BRUSH, COOLING FAN MOTOR |
MB925055 |
US $19.98 |
||
|
10515
|
10515
MR187902 BRUSH, COOLING FAN MOTOR |
MR187902 |
US $19.98 |
||
|
10978
|
10978
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10979
|
10979
MB605066 CLAMP, RADIATOR CONDENSER TANK12 |
MB605066 |
US $6.70 |
||
|
10981B
|
10981B
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
10981B
|
10981B
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
10981C
|
10981C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
10981D
|
10981D
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
10993
|
10993
MB356968
CLIP, RADIATOR PIPING
|
MB356968 |
— | ||
| replacement | |||||
|
10993
|
10993
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
