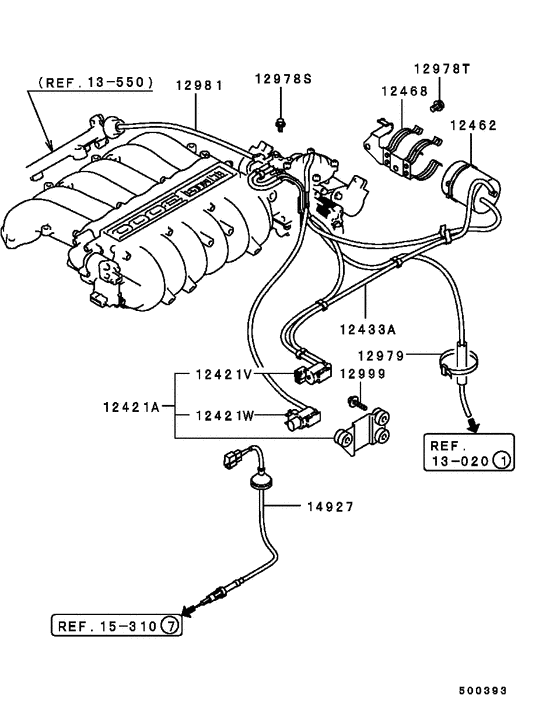

Emission control (9310.1-) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1993
- Sales region
- Japan
- Note
- 25V(SEDAN/4WS),4FA/T
- drive
- 2WD/4WS/4WS
- transmission
- 4FA/T
- grade
- 25V
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12421A
|
12421A
MB906308 VALVE ASSY, EMISSION SOLENOID |
MB906308 |
US $136.16 |
||
|
12421A
|
12421A
MD166678 VALVE ASSY, EMISSION SOLENOID |
MD166678 |
US $116.18 |
||
|
12421V
|
12421V
MD165142 VALVE, EMISSION SOLENOID |
MD165142 |
US $95.76 |
||
|
12421W
|
12421W
MD162589 VALVE, EMISSION SOLENOID |
MD162589 |
US $69.56 |
||
|
12421W
|
12421W
MR266313
VALVE, EMISSION SOLENOID
|
MR266313 |
— | ||
|
12433A
|
12433A
MD159946 HOSE & PIPE ASSY, EMISSION CONTROL |
MD159946 |
US $43.66 |
||
|
12433A
|
12433A
MD163787 HOSE & PIPE ASSY, EMISSION CONTROL |
MD163787 |
US $113.22 |
||
|
12433A
|
12433A
MD191667 HOSE & PIPE ASSY, EMISSION CONTROL |
MD191667 |
US $88.06 |
||
|
12462
|
12462
MD163790 VACUUM TANK, EMISSION CONTROL |
MD163790 |
US $44.40 |
||
|
12468
|
12468
MD163789 BRACKET, VACUUM TANK EMISSION CONTROL |
MD163789 |
US $22.94 |
||
|
12978S
|
12978S
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978T
|
12978T
MF140221 BOLT, ROCKER COVERFlange,8x12 |
MF140221 |
from US $0.90 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12999
|
12999
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $1.15 |
||
|
12999
|
12999
MS240124 BOLT, FUEL LINEWasher assembled,6x30 |
MS240124 |
US $2.07 |
||
|
14927
|
14927
MD097290 SENSOR, EXHAUST HIGH TEMPERATURE |
MD097290 |
US $236.80 |
||
|
