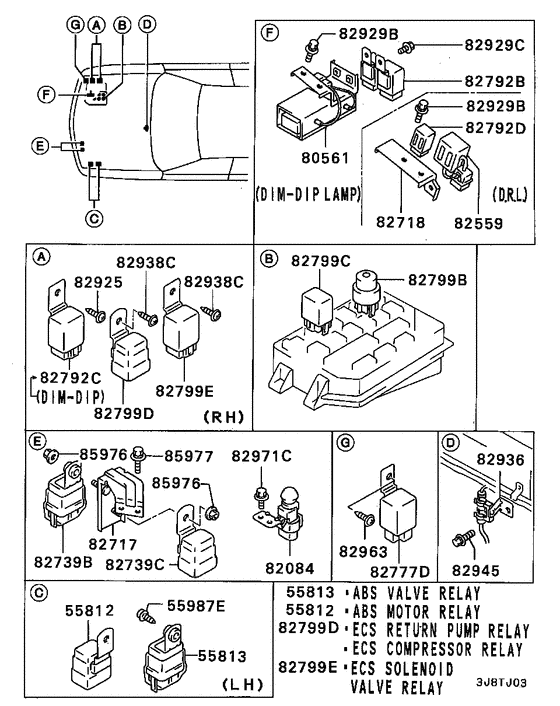

Relay,flasher & sensor (RELAY(AROUND ENGINE ROOM)) Diagram Mitsubishi SIGMA
- Year
- 1991 - 1996
- Sales region
- EUR
- Note
- 3.0 V6-24(DOHC/TCL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 3.0 -24
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55812
|
55812
MB543175 RELAY058700-1730 |
MB543175 |
US $42.92 |
||
|
55813
|
55813
MB184198 RELAY, ENG CONTROL EQUIP056700-5431 |
MB184198 |
US $43.09 |
||
|
82084
|
82084
MB606356 SWITCH, HORN |
MB606356 |
US $40.70 |
||
|
82559
|
82559
MB894382
CONTROL UNIT,DRL
|
MB894382 |
— | ||
|
82717
|
82717
MB852941
BRACKET,RELAY
|
MB852941 |
— | ||
|
82717
|
82717
MB920896
BRACKET,RELAY
|
MB920896 |
— | ||
|
82717
|
82717
MR173759
BRACKET,RELAY
|
MR173759 |
— | ||
|
82718
|
82718
MB852993
BRACKET,SPECIAL LAMP RELAY
|
MB852993 |
— | ||
|
82777D
|
82777D
MB398020 RELAY, STEERING LOCKG2mb-1b45t-r-f58 |
MB398020 |
US $50.62 |
||
|
82792C
|
82792C
MB627895 RELAYG8ms-1a24t-r-n20 |
MB627895 |
US $23.94 |
||
|
82792D
|
82792D
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82799B
|
82799B
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
82799C
|
82799C
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82799D
|
82799D
MB543175 RELAY058700-1730 |
MB543175 |
US $42.92 |
||
|
82799E
|
82799E
MB627895 RELAYG8ms-1a24t-r-n20 |
MB627895 |
US $23.94 |
||
|
82925
|
82925
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
82929B
|
82929B
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
82929C
|
82929C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
82936
|
82936
MB852953 CLAMP, EPS CONTROL EQUIP |
MB852953 |
US $9.32 |
||
|
82936
|
82936
MB954681 BRACKET, HARNESS CONNECTOR |
MB954681 |
US $4.59 |
||
|
82938C
|
82938C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
82945
|
82945
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
82963
|
82963
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
82971C
|
82971C
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
85976
|
85976
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
85977
|
85977
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
