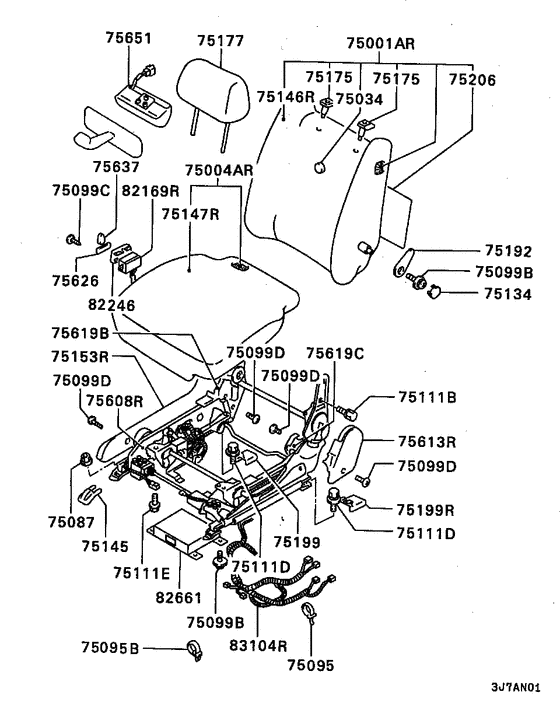

Front seat (RHD..RH (POWER)) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1992
- Sales region
- EUR
- Note
- 3.0 V6-24(DOHC),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 3.0 -24
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB796494
BACK ASSY,FR SEAT,RH
|
MB796494 |
— | ||
|
75001AR
|
75001AR
MB796495
BACK ASSY,FR SEAT,RH
|
MB796495 |
— | ||
|
75004AR
|
75004AR
MB796452
CUSHION ASSY,FR SEAT,RH
|
MB796452 |
— | ||
|
75004AR
|
75004AR
MB796453
CUSHION ASSY,FR SEAT,RH
|
MB796453 |
— | ||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75099B
|
75099B
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
75099C
|
75099C
MF455375 SCREW, STEERING COLUMN COVERTapping,4x8 |
MF455375 |
US $2.60 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75111B
|
75111B
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
75111D
|
75111D
MB279833 BOLT, FR SEATWasher assembled,10x22 |
MB279833 |
US $2.74 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
MB730024 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB730024 |
US $3.70 |
||
|
75134
|
75134
MB783206 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB783206 |
US $5.18 |
||
|
75145
|
75145
MB720760 COVER, FR SEAT ANCHOR |
MB720760 |
US $4.59 |
||
|
75145
|
75145
MB763885
COVER, FR SEAT ANCHOR
|
MB763885 |
— | ||
|
75146R
|
75146R
MB796630
COVER,FR SEAT BACK,RH
|
MB796630 |
— | ||
|
75146R
|
75146R
MB796631
COVER,FR SEAT BACK,RH
|
MB796631 |
— | ||
|
75147R
|
75147R
MB796584
COVER,FR SEAT CUSHION,RH
|
MB796584 |
— | ||
|
75147R
|
75147R
MB796585
COVER,FR SEAT CUSHION,RH
|
MB796585 |
— | ||
|
75153R
|
75153R
MB783271 COVER, FR SEAT SIDE SHIELD, RH |
MB783271 |
US $70.30 |
||
|
75153R
|
75153R
MB783272 COVER, FR SEAT SIDE SHIELD, RH |
MB783272 |
US $70.30 |
||
|
75175
|
75175
MB783319 GUIDE, FR SEAT HEADRESTW/lock |
MB783319 |
US $11.40 |
||
|
75175
|
75175
MB783320 GUIDE, FR SEAT HEADRESTW/lock |
MB783320 |
US $11.40 |
||
|
75175
|
75175
MB783323 GUIDE, FR SEAT HEADRESTW/o lock |
MB783323 |
US $11.40 |
||
|
75175
|
75175
MB783324 GUIDE, FR SEAT HEADRESTW/o lock |
MB783324 |
US $11.40 |
||
|
75177
|
75177
MB796288
HEADREST,FR SEAT
|
MB796288 |
— | ||
|
75177
|
75177
MB796289
HEADREST,FR SEAT
|
MB796289 |
— | ||
|
75192
|
75192
MB729806 LEVER, FR SEAT LUMBAR SUPPORT |
MB729806 |
US $11.40 |
||
|
75192
|
75192
MB783205 LEVER, FR SEAT LUMBAR SUPPORT |
MB783205 |
US $12.43 |
||
|
75199
|
75199
MB720761 COVER, FR SEAT ANCHOR, RR |
MB720761 |
US $4.59 |
||
|
75199
|
75199
MB763886 COVER, FR SEAT ANCHOR, RR |
MB763886 |
US $2.22 |
||
|
75199R
|
75199R
MB763888 COVER, FR SEAT ANCHOR, RR RH |
MB763888 |
US $3.55 |
||
|
75199R
|
75199R
MB765617 COVER, FR SEAT ANCHOR, RR RH |
MB765617 |
US $3.55 |
||
|
75206
|
75206
MB796546
PANEL,FR SEAT BACK
|
MB796546 |
— | ||
|
75206
|
75206
MB796547
PANEL,FR SEAT BACK
|
MB796547 |
— | ||
|
75619B
|
75619B
MB850591 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MB850591 |
US $7.25 |
||
|
75619B
|
75619B
MB850592 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MB850592 |
US $10.21 |
