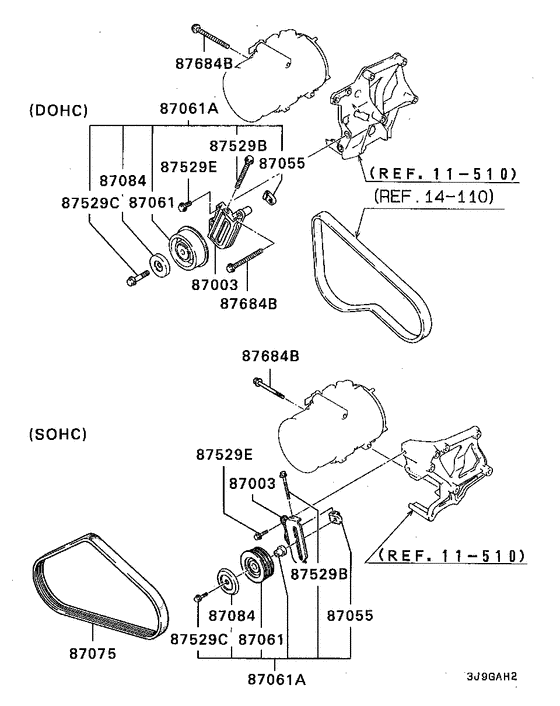

A/c condenser, piping (A/C COMPRESSOR BRACKET,ETC.) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1996
- Sales region
- EUR
- Note
- 3.0 V6-24(DOHC),4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- 3.0 -24
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87003
|
87003
MB609658
BRACKET, A/C COMPRESSOR TENSION PULLEY
|
MB609658 |
— | ||
|
87003
|
87003
MB958144
BRACKET, A/C COMPRESSOR TENSION PULLEY
|
MB958144 |
— | ||
|
87055
|
87055
MB630337
PLATE,A/C
|
MB630337 |
— | ||
|
87061
|
87061
MB630326
PULLEY,A/C COMPRESSOR TENSION
|
MB630326 |
— | ||
|
87061A
|
87061A
MB609656
PULLEY ASSY, A/C COMPRESSOR TENSION
|
MB609656 |
— | ||
| replacement | |||||
|
87061A
|
87061A
MR398079 PULLEY ASSY, A/C COMPRESSOR TENSION |
MR398079 |
US $195.62 |
||
|
87075
|
87075
MB813600
BELT, A/C
|
MB813600 |
— | ||
|
87075
|
87075
MB879764
BELT, A/C
|
MB879764 |
— | ||
|
87084
|
87084
MB630328
COVER,A/C TENSION PULLEY
|
MB630328 |
— | ||
|
87529B
|
87529B
MB379661
BOLT, A/C DRIVING
|
MB379661 |
— | ||
|
87529B
|
87529B
MU240117
BOLT, A/C DRIVING
|
MU240117 |
— | ||
|
87529C
|
87529C
MF241288 BOLT, COOLING FANWasher assembled,10x40 |
MF241288 |
US $3.69 |
||
|
87529C
|
87529C
MF241290 BOLT, ENG MOUNTINGWasher assembled,10x50 |
MF241290 |
US $3.11 |
||
|
87529E
|
87529E
MF245453
BOLT, ENG AIR INTAKE LINE
|
MF245453 |
— | ||
| replacement | |||||
|
87529E
|
87529E
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
87684B
|
87684B
MF244870 BOLT, A/C COMPRESSORWasher assembled,8x100 |
MF244870 |
from US $2.05 |
||
|
