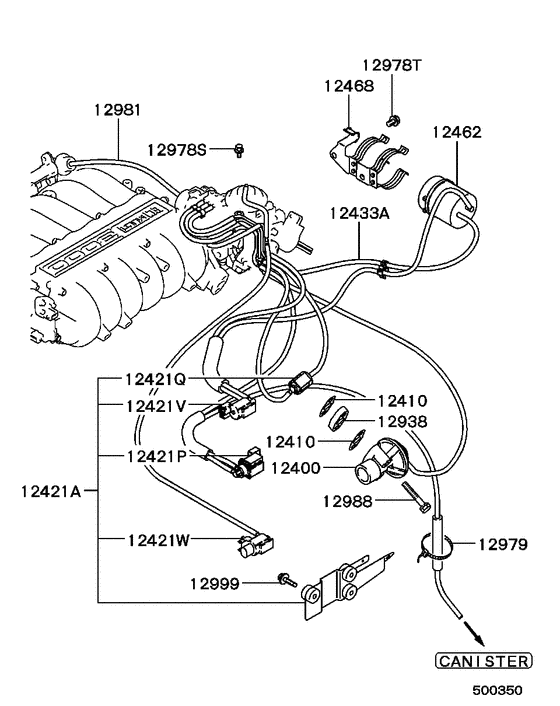

Emission control (9212.1- WITH TCL) Diagram Mitsubishi SIGMA
- Year
- 1990 - 1996
- Sales region
- EUR
- Note
- 3.0 V6-24(DOHC),4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- 3.0 -24
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD153340
VALVE,EGR
|
MD153340 |
— | ||
|
12410
|
12410
MD153341
GASKET,EGR VALVE
|
MD153341 |
— | ||
|
12421A
|
12421A
MB925474
VALVE ASSY,EMISSION SOLENOID
|
MB925474 |
— | ||
|
12421A
|
12421A
MB925901
VALVE ASSY,EMISSION SOLENOID
|
MB925901 |
— | ||
|
12421A
|
12421A
MD168751
VALVE ASSY,EMISSION SOLENOID
|
MD168751 |
— | ||
|
12421P
|
12421P
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12421V
|
12421V
MD165142 VALVE, EMISSION SOLENOID |
MD165142 |
US $95.76 |
||
|
12421W
|
12421W
MD162589 VALVE, EMISSION SOLENOID |
MD162589 |
US $69.56 |
||
|
12421W
|
12421W
MR266313
VALVE, EMISSION SOLENOID
|
MR266313 |
— | ||
|
12433A
|
12433A
MD168755
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD168755 |
— | ||
|
12433A
|
12433A
MD190152
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD190152 |
— | ||
|
12433A
|
12433A
MD192074
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD192074 |
— | ||
|
12433A
|
12433A
MR266812
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR266812 |
— | ||
|
12462
|
12462
MD163790 VACUUM TANK, EMISSION CONTROL |
MD163790 |
US $44.40 |
||
|
12468
|
12468
MD163789 BRACKET, VACUUM TANK EMISSION CONTROL |
MD163789 |
US $22.94 |
||
|
12938
|
12938
MD175446
SPACER,EGR EQUIP
|
MD175446 |
— | ||
|
12978S
|
12978S
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978T
|
12978T
MF140221 BOLT, ROCKER COVERFlange,8x12 |
MF140221 |
from US $0.90 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988
|
12988
MF241265 BOLT, ROCKER COVERWasher assembled,8x60 |
MF241265 |
from US $1.42 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
12999
|
12999
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $1.15 |
||
|
12999
|
12999
MS240124 BOLT, FUEL LINEWasher assembled,6x30 |
MS240124 |
US $2.07 |
