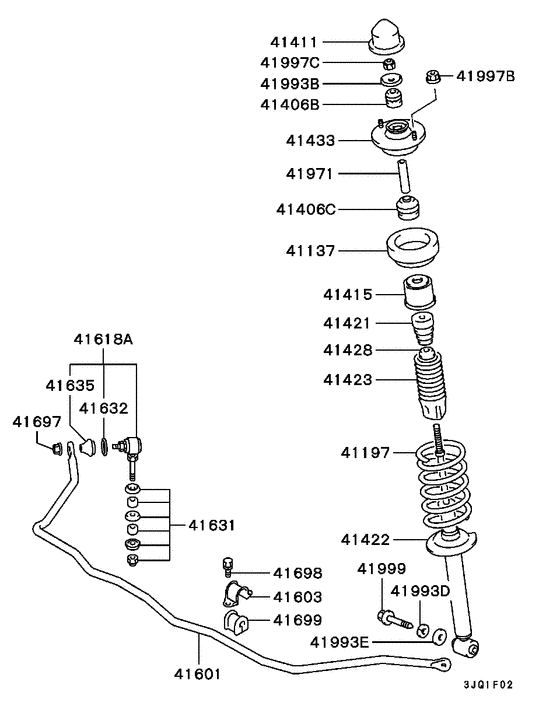

Rear susp (STRUT,STABILIZER) Diagram Mitsubishi SIGMA
- Year
- 1993 - 1994
- Sales region
- Japan
- Note
- 25E(SEDAN/4WD/4WS),4FA/T
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 4FA/T
- grade
- 25E
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41137
|
41137
MB631882 PAD, RR SUSP SPRING, UPR |
MB631882 |
US $17.76 |
||
|
41197
|
41197
MB631930 SPRING, RR SUSP COIL |
MB631930 |
US $133.94 |
||
|
41197
|
41197
MB631931 SPRING, RR SUSP COIL |
MB631931 |
US $148 |
||
|
41406B
|
41406B
MB515691 BUSHING, RR SUSP COIL SPRING |
MB515691 |
US $7.25 |
||
|
41406C
|
41406C
MB339287 BUSHING, RR SUSP COIL SPRING |
MB339287 |
US $7.39 |
||
|
41411
|
41411
MB515840
CAP, RR SHOCK ABSORBER
|
MB515840 |
— | ||
|
41415
|
41415
MB338614 CUP, RR SHOCK ABSORBER |
MB338614 |
from US $6.67 |
||
|
41421
|
41421
MB242352 DAMPER, FR SHOCK ABSORBER |
MB242352 |
from US $29.45 |
||
|
41422
|
41422
MB631937 SHOCK ABSORBER, RR SUSP |
MB631937 |
US $150.96 |
||
|
41423
|
41423
MB338617
COVER, RR SUSP STRUT
|
MB338617 |
— | ||
| replacement | |||||
|
41423
|
41423
MB518025 COVER, RR SHOCK ABSORBER |
MB518025 |
from US $19.15 |
||
|
41428
|
41428
MB515561 SEAT, RR SHOCK ABSORBER |
MB515561 |
US $10.66 |
||
|
41433
|
41433
MB631880 INSULATOR, RR SHOCK ABSORBER |
MB631880 |
US $43.66 |
||
|
41601
|
41601
MB631941 BAR, RR SUSP STABILIZER19 |
MB631941 |
US $120.62 |
||
|
41603
|
41603
MB631679
BRACKET, RR SUSP STABILIZER BAR
|
MB631679 |
— | ||
|
41618A
|
41618A
MB584467 LINK ASSY, RR SUSP STABILIZER BAR |
MB584467 |
US $79.18 |
||
| replacement | |||||
|
41618A
|
41618A
4056A039 LINK, FR SUSP STABILIZER |
4056A039 |
US $51.80 |
||
|
41618A
|
41618A
MR131733 LINK, FR SUSP STABILIZER |
MR131733 |
US $51.80 |
||
| replacement | |||||
|
41618A
|
41618A
4056A039 LINK, FR SUSP STABILIZER |
4056A039 |
US $51.80 |
||
|
41631
|
41631
MB698457
HANGER, FR SUSP STABILIZER
|
MB698457 |
— | ||
| replacement | |||||
|
41631
|
41631
MB185476 LINK KIT, SUSP STABILIZER BAR |
MB185476 |
from US $7.94 |
||
|
41632
|
41632
MB633060
RING, FR SUSP STABILIZER LINK DUST COVER
|
MB633060 |
— | ||
| replacement | |||||
|
41632
|
41632
MB892989 RING, SUSP STABILIZER LINK DUST COVER |
MB892989 |
US $8.34 |
||
|
41632
|
41632
MB892989 RING, SUSP STABILIZER LINK DUST COVER |
MB892989 |
US $8.34 |
||
|
41635
|
41635
MB518785 COVER, FR SUSP STABILIZER LINK BALL JOINT DUST |
MB518785 |
from US $7.80 |
||
|
41697
|
41697
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
41698
|
41698
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
41699
|
41699
MB631944 BUSHING, RR SUSP STABILIZER |
MB631944 |
US $4.88 |
||
|
41971
|
41971
MB338620 COLLAR, RR SUSP COIL SPRING |
MB338620 |
US $3.97 |
||
|
41993B
|
41993B
MB242360 WASHER, RR SUSP COIL SPRING10.2 |
MB242360 |
from US $2.40 |
||
|
41993D
|
41993D
MB176375 WASHER, RR SUSP COIL SPRING14 |
MB176375 |
US $3.69 |
||
|
41993E
|
41993E
MB515719 WASHER, RR SUSP COIL SPRINGPlain,12.5 |
MB515719 |
US $4.10 |
||
|
41997B
|
41997B
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
41997C
|
41997C
MS440002 NUT, ENG RR MOUNTINGSelf locking,10 |
MS440002 |
from US $2.26 |
||
|
41999
|
41999
MB515260 BOLT, RR DIFF RR MOUNTINGFlange,12x28 |
MB515260 |
US $8.48 |
||
