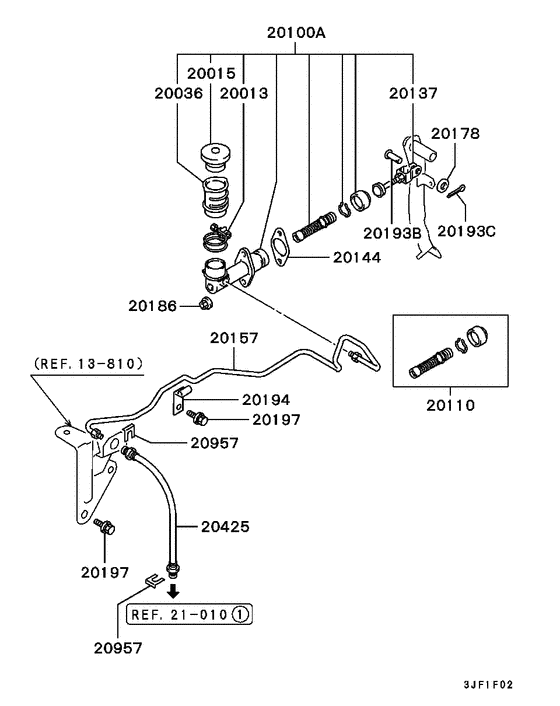

Clutch control Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,5FM/T EC
- drive
- 2WD
- transmission
- 5FM/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20013
|
20013
MB012155 BAND, CLUTCH FLUID RESERVOIR |
MB012155 |
US $6.02 |
||
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $8.17 |
||
|
20036
|
20036
MA115416 RESERVOIR, CLUTCH FLUID |
MA115416 |
from US $6.75 |
||
|
20100A
|
20100A
MB555400
CYLINDER ASSY,CLUTCH MASTER
|
MB555400 |
— | ||
|
20110
|
20110
MB012161 CYLINDER KIT, CLUTCH MASTER |
MB012161 |
from US $64.68 |
||
|
20137
|
20137
MB891411 PUSH ROD, CLUTCH M/CYL |
MB891411 |
US $19.98 |
||
|
20144
|
20144
MB012077 SEAL, CLUTCH M/CYL |
MB012077 |
from US $1.50 |
||
|
20157
|
20157
MB555405
TUBE,CLUTCH M/CYL
|
MB555405 |
— | ||
|
20178
|
20178
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20193B
|
20193B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
20193C
|
20193C
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
20194
|
20194
MB555140 CLIP, CLUTCH M/CYL5 |
MB555140 |
US $5.48 |
||
|
20197
|
20197
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
20425
|
20425
MB555236 HOSE, CLUTCH RELEASE CYLINDER270 |
MB555236 |
US $24.42 |
||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
