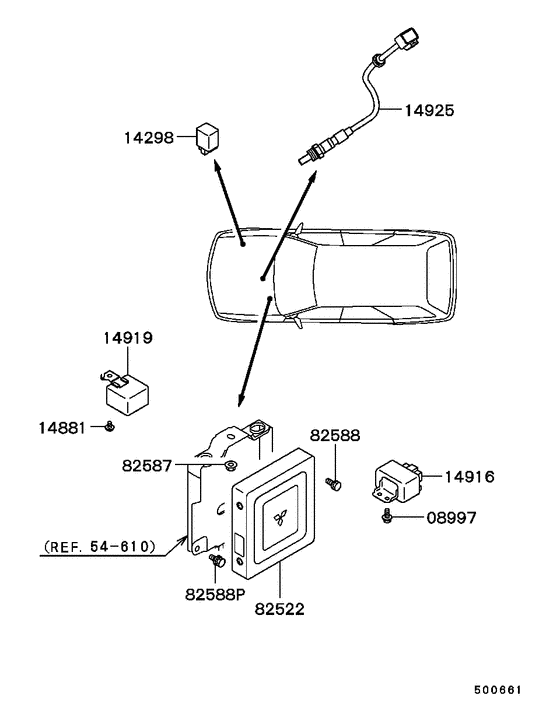

Electrical control (ALL (CONTROL UNIT ETC.)) Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08997
|
08997
MS240027 BOLT, ENG CONTROL EQUIPWasher assembled,5x16 |
MS240027 |
US $1.92 |
||
|
14298
|
14298
MD113566 RELAY, ALTERNATOR SAFETY |
MD113566 |
from US $26.54 |
||
|
14881
|
14881
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
14916
|
14916
MD159893 RELAY, ENG CONTROLE8t07871 |
MD159893 |
US $109.44 |
||
|
14919
|
14919
MD168999
RELAY,ENG OIL LEVEL
|
MD168999 |
— | ||
|
14925
|
14925
MD177968 SENSOR, ENG CONTROL OXYGEN |
MD177968 |
US $560.56 |
||
|
82522
|
82522
AW333975
CONTROL UNIT,ENG
|
AW333975 |
— | ||
|
82587
|
82587
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
82588
|
82588
MS240145 BOLT, ENG CONTROL EQUIPWasher assembled,8x20 |
MS240145 |
from US $1.42 |
||
|
82588P
|
82588P
MB133472 BOLT, FUEL TANKWasher assembled,8x20 |
MB133472 |
from US $2.18 |
||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
