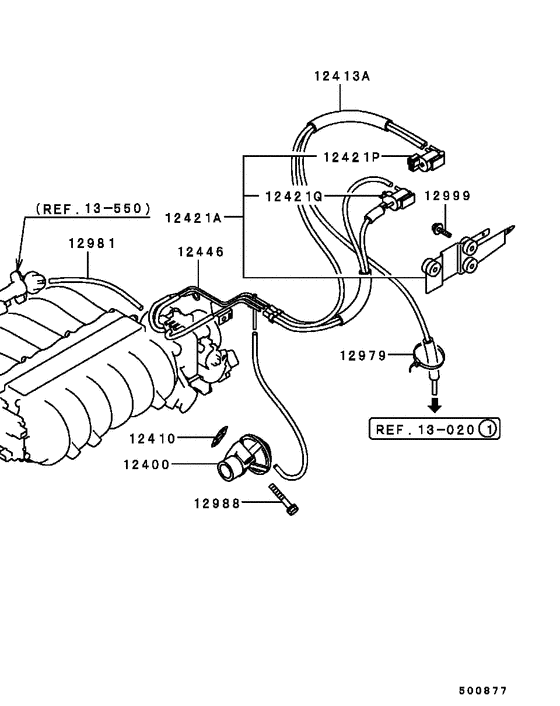

Emission control (ALL) Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD153340
VALVE,EGR
|
MD153340 |
— | ||
|
12410
|
12410
MD153341
GASKET,EGR VALVE
|
MD153341 |
— | ||
|
12413A
|
12413A
AW331075
HOSE ASSY,EMISSION VACUUM CONTROL
|
AW331075 |
— | ||
|
12421A
|
12421A
MB925902
VALVE ASSY,EMISSION SOLENOID
|
MB925902 |
— | ||
|
12421P
|
12421P
MB925799
VALVE,EMISSION SOLENOID
|
MB925799 |
— | ||
| replacement | |||||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12446
|
12446
MD192254
PIPE SET,EMISSION VACUUM CONTROL
|
MD192254 |
— | ||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12981
|
12981
AW311903 HOSE, EMISSION CONTROL EQUIP |
AW311903 |
US $554.74 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
