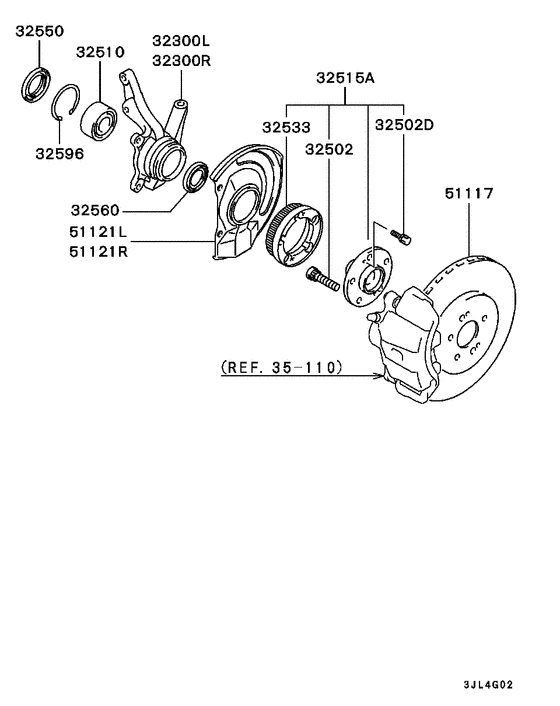

Front axle hub & drum Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32300L
|
32300L
MB891441 KNUCKLE, LH |
MB891441 |
US $266.40 |
||
|
32300R
|
32300R
MB891442 KNUCKLE, RH |
MB891442 |
US $266.40 |
||
|
32502
|
32502
MB303869
BOLT, FR WHEEL HUB
|
MB303869 |
— | ||
| replacement | |||||
|
32502
|
32502
MB911495 BOLT, FR WHEEL HUB12x43 |
MB911495 |
from US $2.03 |
||
|
32502D
|
32502D
MF241227 BOLT, ROCKER COVERWasher assembled,6x20 |
MF241227 |
US $2.19 |
||
|
32510
|
32510
MB633429 BEARING, FR WHEEL HUBAngular contact ball,84x39-45 |
MB633429 |
US $152.44 |
||
|
32515A
|
32515A
AW328318 HUB ASSY, FR WHEEL |
AW328318 |
US $207.20 |
||
|
32533
|
32533
MB618886 ROTOR, FR WHEEL HUB ABS |
MB618886 |
US $201.28 |
||
|
32550
|
32550
MB633432 OIL SEAL, FR WHEEL HUB, INR |
MB633432 |
US $13.32 |
||
|
32560
|
32560
MB633434 OIL SEAL, FR WHEEL HUB, OTR |
MB633434 |
US $11.99 |
||
|
32596
|
32596
MB633435 SNAP RING, FR WHEEL HUB77.5 |
MB633435 |
from US $13.16 |
||
|
51117
|
51117
MB895444
DISC,FR BRAKE
|
MB895444 |
— | ||
|
51121L
|
51121L
MB858581
COVER,FR BRAKE DISC,LH
|
MB858581 |
— | ||
|
51121R
|
51121R
MB858582
COVER,FR BRAKE DISC,RH
|
MB858582 |
— | ||
|
35 110
|
Front wheel brake
35 110
|
||||
