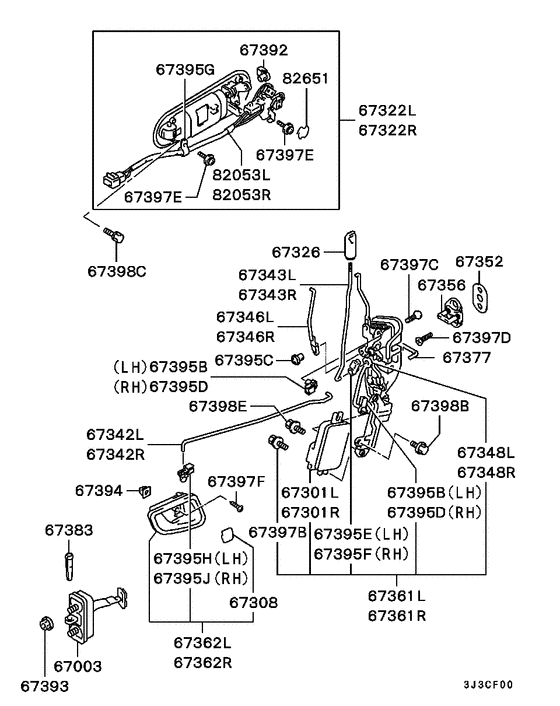

Front door locking Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MB547015 CHECK, FR DOOR |
MB547015 |
US $37.74 |
||
|
67301L
|
67301L
MB655573
ACTUATOR, FR DOOR LOCK, LH
|
MB655573 |
— | ||
|
67301R
|
67301R
MB655572
ACTUATOR,FR DOOR LOCK,RH
|
MB655572 |
— | ||
|
67301R
|
67301R
MB655574 ACTUATOR, FR DOOR LOCK, RH |
MB655574 |
US $173.16 |
||
|
67308
|
67308
MB626285 CAP, FR DOOR INSIDE HANDLE COVER |
MB626285 |
US $6.07 |
||
|
67322L
|
67322L
11687EA1 HANDLE, FR DOOR OUTSIDE, LH |
11687EA1 |
US $524.16 |
||
|
67322L
|
67322L
11687EB2
HANDLE,FR DOOR OUTSIDE,LH
|
11687EB2 |
— | ||
|
67322L
|
67322L
11687EG1 HANDLE, FR DOOR OUTSIDE, LH |
11687EG1 |
US $554.74 |
||
|
67322L
|
67322L
11687ES1
HANDLE,FR DOOR OUTSIDE,LH
|
11687ES1 |
— | ||
|
67322L
|
67322L
11687EW1
HANDLE,FR DOOR OUTSIDE,LH
|
11687EW1 |
— | ||
|
67322L
|
67322L
11687FR4
HANDLE,FR DOOR OUTSIDE,LH
|
11687FR4 |
— | ||
|
67322L
|
67322L
11687GB6
HANDLE,FR DOOR OUTSIDE,LH
|
11687GB6 |
— | ||
|
67322L
|
67322L
11687GG3 HANDLE, FR DOOR OUTSIDE, LH |
11687GG3 |
US $535.81 |
||
|
67322L
|
67322L
11687GS4
HANDLE,FR DOOR OUTSIDE,LH
|
11687GS4 |
— | ||
|
67322R
|
67322R
13368GA1
HANDLE,FR DOOR OUTSIDE,RH
|
13368GA1 |
— | ||
|
67322R
|
67322R
13368GB2
HANDLE,FR DOOR OUTSIDE,RH
|
13368GB2 |
— | ||
|
67322R
|
67322R
13368GB6
HANDLE,FR DOOR OUTSIDE,RH
|
13368GB6 |
— | ||
|
67322R
|
67322R
13368GG1
HANDLE,FR DOOR OUTSIDE,RH
|
13368GG1 |
— | ||
|
67322R
|
67322R
13368GG3
HANDLE,FR DOOR OUTSIDE,RH
|
13368GG3 |
— | ||
|
67322R
|
67322R
13368GR4
HANDLE,FR DOOR OUTSIDE,RH
|
13368GR4 |
— | ||
|
67322R
|
67322R
13368GS1
HANDLE,FR DOOR OUTSIDE,RH
|
13368GS1 |
— | ||
|
67322R
|
67322R
13368GS4
HANDLE,FR DOOR OUTSIDE,RH
|
13368GS4 |
— | ||
|
67322R
|
67322R
13368GW1
HANDLE,FR DOOR OUTSIDE,RH
|
13368GW1 |
— | ||
|
67326
|
67326
MB578690 KNOB, FR DOOR INSIDE LOCK |
MB578690 |
US $4 |
||
|
67342L
|
67342L
MB626711 ROD, FR DOOR INSIDE LOCK, LH |
MB626711 |
US $10.95 |
||
|
67342R
|
67342R
MB626712 ROD, FR DOOR INSIDE HANDLE, RH |
MB626712 |
US $10.95 |
||
|
67343L
|
67343L
MB626713 ROD, FR DOOR INSIDE LOCK, LH |
MB626713 |
US $10.95 |
||
|
67343R
|
67343R
MB626714 ROD, FR DOOR INSIDE LOCK, RH |
MB626714 |
US $10.95 |
||
|
67346L
|
67346L
MB626709 ROD, FR DOOR OUTSIDE LOCK, LH |
MB626709 |
US $7.25 |
||
|
67346R
|
67346R
MB626710 ROD, FR DOOR OUTSIDE LOCK, RH |
MB626710 |
US $7.25 |
||
|
67348L
|
67348L
MB626727 ROD, FR DOOR LOCK ACTUATOR |
MB626727 |
US $5.18 |
||
|
67348R
|
67348R
MB626728 ROD, FR DOOR LOCK ACTUATOR |
MB626728 |
US $5.18 |
||
|
67352
|
67352
MB574974 SHIM, FR DOOR LATCH STRIKER1.6 |
MB574974 |
US $4.65 |
||
|
67356
|
67356
MB655369 STRIKER, FR DOOR LATCH |
MB655369 |
US $13.02 |
||
|
67361L
|
67361L
MB676259 LATCH & ACTUATOR, FR DOOR, LH |
MB676259 |
US $275.28 |
||
|
67361R
|
67361R
MB626692
LATCH,FR DOOR,RH
|
MB626692 |
— | ||
|
67361R
|
67361R
MB676884
LATCH,FR DOOR,RH
|
MB676884 |
— | ||
|
67362L
|
67362L
MB578695 HANDLE, FR DOOR INSIDE, LH |
MB578695 |
US $68.08 |
||
|
67362R
|
67362R
MB578696 HANDLE, FR DOOR INSIDE, RH |
MB578696 |
US $68.08 |
||
|
67377
|
67377
AW332112 PROTECTOR, RR DOOR LOCK ACTUATOR |
AW332112 |
US $3.55 |
||
|
67383
|
67383
MB632510 SPRING PIN, FR DOOR LOCKING6x27 |
MB632510 |
US $3.56 |
||
|
67392
|
67392
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
67393
|
67393
MS440512 NUT, AIR SPOILERWasher assembled,6 |
MS440512 |
US $2.46 |
||
|
67394
|
67394
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
67395B
|
67395B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
67395C
|
67395C
MB590537 CLIP, FR DOOR LOCKING6.5 |
MB590537 |
US $2.96 |
||
|
67395D
|
67395D
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
67395E
|
67395E
MS470433 CLIP, PTO GEARSHIFT LINK4.2 |
MS470433 |
US $4.24 |
||
|
67395F
|
67395F
MS470434 CLIP, FR DOOR LOCKING4.2 |
MS470434 |
from US $2.07 |
||
|
67395G
|
67395G
MB354706 CLIP, FR DOOR LOCKING7 |
MB354706 |
US $4.29 |
||
|
67395H
|
67395H
MS470434 CLIP, FR DOOR LOCKING4.2 |
MS470434 |
from US $2.07 |
||
|
67395J
|
67395J
MS470433 CLIP, PTO GEARSHIFT LINK4.2 |
MS470433 |
US $4.24 |
||
|
67397B
|
67397B
MU340032 SCREW, FR DOOR LOCKINGWasher assembled,6x16 |
MU340032 |
US $3.11 |
||
|
67397C
|
67397C
MB632457 SCREW, FR DOOR LOCKINGMachine,6x8 |
MB632457 |
US $3.26 |
||
|
67397D
|
67397D
MU340028
SCREW, FR DOOR LOCKING
|
MU340028 |
— | ||
| replacement | |||||
|
67397D
|
67397D
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
67397E
|
67397E
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
US $2.60 |
||
|
67397F
|
67397F
MF453333 SCREW, STEERING COLUMN COVERTapping,5x16 |
MF453333 |
US $2.22 |
||
|
67398B
|
67398B
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
67398B
|
67398B
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
67398C
|
67398C
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
67398E
|
67398E
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
67398E
|
67398E
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
82053L
|
82053L
MB887951 SWITCH, DOOR LOCK, LH |
MB887951 |
US $47.36 |
||
|
82053R
|
82053R
MB655675
SWITCH,DOOR LOCK
|
MB655675 |
— | ||
|
82651
|
82651
MB517952 RING, DOOR LOCK CYLINDER |
MB517952 |
US $2.22 |
||
