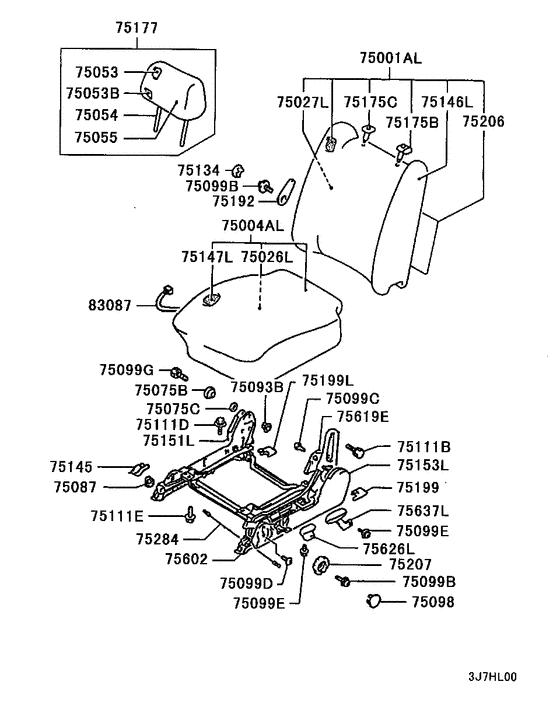

Front seat (LH) Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
13313GA1
BACK ASSY,FR SEAT,LH
|
13313GA1 |
— | ||
|
75001AL
|
75001AL
13315GA1
BACK ASSY,FR SEAT,LH
|
13315GA1 |
— | ||
|
75001AL
|
75001AL
13639GA1
BACK ASSY,FR SEAT,LH
|
13639GA1 |
— | ||
|
75001AL
|
75001AL
13651GA1
BACK ASSY,FR SEAT,LH
|
13651GA1 |
— | ||
|
75004AL
|
75004AL
13317GA1
CUSHION ASSY,FR SEAT,LH
|
13317GA1 |
— | ||
|
75004AL
|
75004AL
13319GA1
CUSHION ASSY,FR SEAT,LH
|
13319GA1 |
— | ||
|
75004AL
|
75004AL
13645GA2
CUSHION ASSY,FR SEAT,LH
|
13645GA2 |
— | ||
|
75004AL
|
75004AL
13767GA2
CUSHION ASSY,FR SEAT,LH
|
13767GA2 |
— | ||
|
75026L
|
75026L
AW324393
FRAME,FR SEAT CUSHION,LH
|
AW324393 |
— | ||
|
75027L
|
75027L
AW334163
FRAME,FR SEAT BACK,LH
|
AW334163 |
— | ||
|
75053
|
75053
AW324751 PAD, FR SEAT HEADREST |
AW324751 |
US $137.64 |
||
|
75053B
|
75053B
AW326083 PAD, FR SEAT HEADREST |
AW326083 |
US $12.28 |
||
|
75054
|
75054
MB850048 FRAME, FR SEAT HEADREST |
MB850048 |
US $137.64 |
||
|
75055
|
75055
13322GA1
COVER,FR SEAT HEADREST
|
13322GA1 |
— | ||
|
75055
|
75055
13515GA2
COVER,FR SEAT HEADREST
|
13515GA2 |
— | ||
|
75075B
|
75075B
MB850061 WASHER, FR SEAT |
MB850061 |
US $2.66 |
||
|
75075C
|
75075C
AW320068 WASHER, FR SEAT6x22 |
AW320068 |
US $2.81 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75093B
|
75093B
04069403 BUSHING, FR SEAT |
04069403 |
US $3.11 |
||
|
75098
|
75098
MB783340 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB783340 |
US $4.14 |
||
|
75099B
|
75099B
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
75099C
|
75099C
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099E
|
75099E
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75099G
|
75099G
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75111B
|
75111B
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75134
|
75134
11289EA2
CAP,FR SEAT LUMBAR SUPPORT LEVER
|
11289EA2 |
— | ||
|
75145
|
75145
MB763885
COVER, FR SEAT ANCHOR
|
MB763885 |
— | ||
|
75146L
|
75146L
13633GA1
COVER,FR SEAT BACK,LH
|
13633GA1 |
— | ||
|
75146L
|
75146L
13641GA2
COVER,FR SEAT BACK,LH
|
13641GA2 |
— | ||
|
75146L
|
75146L
13653GA2
COVER,FR SEAT BACK,LH
|
13653GA2 |
— | ||
|
75147L
|
75147L
12943GA1
COVER,FR SEAT CUSHION,LH
|
12943GA1 |
— | ||
|
75147L
|
75147L
13647GA2
COVER,FR SEAT CUSHION,LH
|
13647GA2 |
— | ||
|
75151L
|
75151L
11581DA2
COVER,FR SEAT HINGE,LH
|
11581DA2 |
— | ||
|
75153L
|
75153L
MB796545
COVER,FR SEAT SIDE SHIELD,LH
|
MB796545 |
— | ||
|
75175B
|
75175B
11290DA1 GUIDE, FR SEAT HEADREST |
11290DA1 |
US $27.38 |
||
|
75175B
|
75175B
11290EA2
GUIDE,FR SEAT HEADREST
|
11290EA2 |
— | ||
|
75175C
|
75175C
11395DA1 GUIDE, FR SEAT HEADREST |
11395DA1 |
US $19.98 |
||
|
75175C
|
75175C
11395EA2
GUIDE,FR SEAT HEADREST
|
11395EA2 |
— | ||
|
75177
|
75177
13321GA1
HEADREST,FR SEAT
|
13321GA1 |
— | ||
|
75177
|
75177
13635GA2
HEADREST,FR SEAT
|
13635GA2 |
— | ||
|
75192
|
75192
11287EA2
LEVER,FR SEAT LUMBAR SUPPORT
|
11287EA2 |
— | ||
|
75199
|
75199
MB763886 COVER, FR SEAT ANCHOR, RR |
MB763886 |
US $2.22 |
||
|
75199L
|
75199L
MB763887 COVER, FR SEAT ANCHOR, RR LH |
MB763887 |
US $3.55 |
||
|
75206
|
75206
12937GA1
PANEL,FR SEAT BACK
|
12937GA1 |
— | ||
|
75206
|
75206
13643GA1
PANEL,FR SEAT BACK
|
13643GA1 |
— | ||
|
75207
|
75207
MB783336 LEVER, FR SEAT LUMBAR SUPPORT |
MB783336 |
US $12.58 |
||
|
75284
|
75284
AW328957 WIRE, FR SEAT |
AW328957 |
US $27.38 |
||
|
75602
|
75602
MB796549
ADJUSTER,FR SEAT HEIGHT
|
MB796549 |
— | ||
|
75619E
|
75619E
MB850588 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MB850588 |
US $10.21 |
||
|
75626L
|
75626L
MB783350 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MB783350 |
US $14.50 |
||
|
75637L
|
75637L
MB783344 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MB783344 |
US $9.77 |
||
|
83087
|
83087
AW334843
COVER,HEATER CONTROL PANEL
|
AW334843 |
— |
