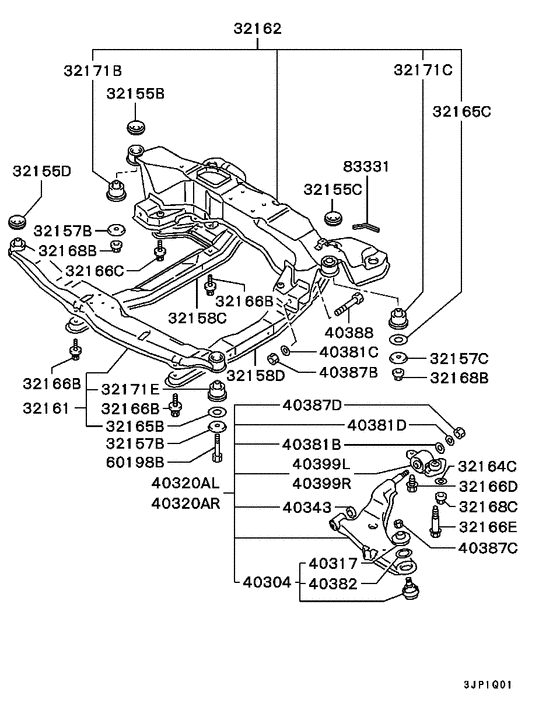

Front susp arm & member Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32155B
|
32155B
MB303629
STOPPER, FR AXLE CROSSMEMBER
|
MB303629 |
— | ||
|
32155C
|
32155C
MB573305 STOPPER, FR AXLE CROSSMEMBER |
MB573305 |
from US $6.81 |
||
|
32155D
|
32155D
MB573306 STOPPER, FR AXLE CROSSMEMBER |
MB573306 |
US $6.84 |
||
|
32157B
|
32157B
MB303625 PLATE, FR AXLE CROSSMEMBER MOUNTING |
MB303625 |
US $8.21 |
||
|
32157C
|
32157C
MB303624
PLATE, FR AXLE CROSSMEMBER MOUNTING
|
MB303624 |
— | ||
|
32158C
|
32158C
AW321386 MEMBER, FR AXLE, CTR |
AW321386 |
US $232.36 |
||
|
32158D
|
32158D
AW321385 MEMBER, FR AXLE, CTR |
AW321385 |
US $232.36 |
||
|
32161
|
32161
AW321397 CROSSMEMBER, FR AXLE, NO.1 |
AW321397 |
US $260.48 |
||
|
32162
|
32162
AW332564
CROSSMEMBER,FR AXLE,NO.1
|
AW332564 |
— | ||
|
32164C
|
32164C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
32165B
|
32165B
MB573304
SPACER, FR AXLE CROSSMEMBER
|
MB573304 |
— | ||
|
32165C
|
32165C
MB573303 SPACER, FR AXLE CROSSMEMBER |
MB573303 |
US $4.29 |
||
|
32166B
|
32166B
MU240023
BOLT, FR AXLE CROSSMEMBER
|
MU240023 |
— | ||
|
32166C
|
32166C
MU240024 BOLT, FR AXLE CROSSMEMBERWasher assembled,10x45,10t |
MU240024 |
US $4.92 |
||
|
32166D
|
32166D
MB176900
BOLT, FR AXLE CROSSMEMBER
|
MB176900 |
— | ||
| replacement | |||||
|
32166D
|
32166D
MU140054 BOLT, FR AXLE CROSSMEMBER |
MU140054 |
US $5.20 |
||
|
32166E
|
32166E
MB518942
BOLT, FR AXLE CROSSMEMBER
|
MB518942 |
— | ||
| replacement | |||||
|
32166E
|
32166E
MU140027 BOLT, FR SUSP LWR ARM |
MU140027 |
from US $6.12 |
||
|
32168B
|
32168B
MB242260 NUT, FR AXLE CROSSMEMBERSelf locking,12 |
MB242260 |
from US $3.56 |
||
|
32168C
|
32168C
MF445005 NUTSelf locking,10 |
MF445005 |
from US $1.42 |
||
|
32171B
|
32171B
MB518168
BUSHING, FR AXLE CROSSMEMBER
|
MB518168 |
— | ||
|
32171C
|
32171C
MB430805
BUSHING, FR AXLE CROSSMEMBER
|
MB430805 |
— | ||
|
32171E
|
32171E
MB518168
BUSHING, FR AXLE CROSSMEMBER
|
MB518168 |
— | ||
|
40304
|
40304
AW345993
BALL JOINT, FR SUSP LWR ARM
|
AW345993 |
— | ||
|
40317
|
40317
MB573938 COVER, FR SUSP LWR ARM BALL JOINT |
MB573938 |
US $12.86 |
||
|
40320AL
|
40320AL
AW334393
ARM ASSY,FR SUSP,LWR LH
|
AW334393 |
— | ||
|
40320AL
|
40320AL
AW337643 ARM ASSY, FR SUSP, LWR LH |
AW337643 |
US $636.27 |
||
|
40320AR
|
40320AR
AW334394
ARM ASSY,FR SUSP,LWR RH
|
AW334394 |
— | ||
|
40320AR
|
40320AR
AW337644 ARM ASSY, FR SUSP, LWR RH |
AW337644 |
US $636.27 |
||
|
40343
|
40343
MB303751 STOPPER, FR SUSP LWR ARM BOLT |
MB303751 |
US $2.07 |
||
|
40381B
|
40381B
MB808231
WASHER, FR SUSP LWR ARM
|
MB808231 |
— | ||
|
40381C
|
40381C
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
40381D
|
40381D
MF450408 WASHERSpring,14 |
MF450408 |
from US $1.21 |
||
|
40382
|
40382
MB573939 SNAP RING, FR SUSP LWR ARM |
MB573939 |
US $7.80 |
||
|
40387B
|
40387B
MU430003 NUT, ENG MOUNTING12 |
MU430003 |
from US $1.21 |
||
|
40387C
|
40387C
MS440003 NUT, FR SUSP STRUTSelf locking,12 |
MS440003 |
US $6.16 |
||
|
40387D
|
40387D
MF430124 NUT6T, 14 |
MF430124 |
from US $1.29 |
||
|
40388
|
40388
MU140012 BOLT, FR SUSP LWR ARMFlange,12x135 |
MU140012 |
from US $7.84 |
||
|
40399L
|
40399L
AW321471 BUSHING, FR SUSP LWR ARM, LH |
AW321471 |
US $295.57 |
||
|
40399L
|
40399L
AW337645 BUSHING, FR SUSP LWR ARM, LH |
AW337645 |
US $79.18 |
||
|
40399R
|
40399R
AW321472 BUSHING, FR SUSP LWR ARM, RH |
AW321472 |
US $295.57 |
||
|
40399R
|
40399R
AW337646 BUSHING, FR SUSP LWR ARM, RH |
AW337646 |
US $94.72 |
||
|
60198B
|
60198B
MB176060 BOLT, FR AXLE CROSSMEMBERFlange,12x103 |
MB176060 |
US $8.14 |
||
|
83331
|
83331
MB358435 PROTECTOR, GEARSHIFT LINK CROSS SHAFT100 |
MB358435 |
US $3.70 |
||
