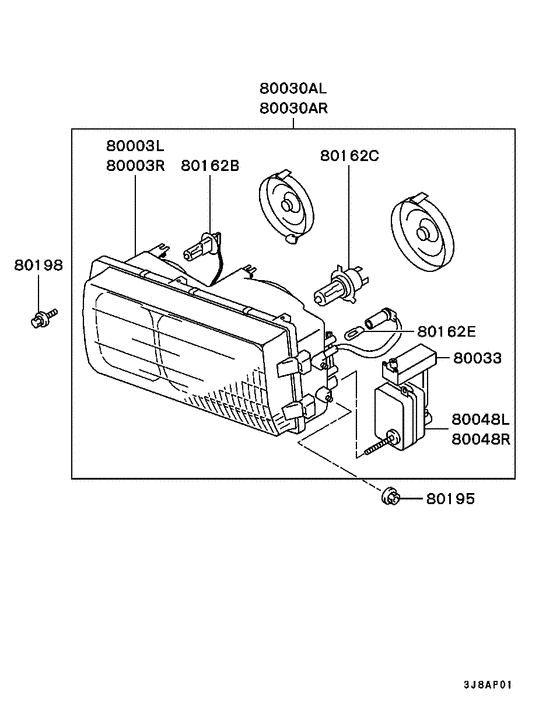

Headlamp Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80003L
|
80003L
MB880815
BODY,HEADLAMP,LH
|
MB880815 |
— | ||
|
80003R
|
80003R
MB880816
BODY,HEADLAMP,RH
|
MB880816 |
— | ||
|
80030AL
|
80030AL
MB623985
HEADLAMP ASSY,LH
|
MB623985 |
— | ||
|
80030AR
|
80030AR
MB623986
HEADLAMP ASSY,RH
|
MB623986 |
— | ||
|
80033
|
80033
MB880821
GEARBOX,HEADLAMP LEVELING
|
MB880821 |
— | ||
|
80048L
|
80048L
MB880819
LEVELING UNIT,HEADLAMP,LH
|
MB880819 |
— | ||
|
80048R
|
80048R
MB880820
LEVELING UNIT,HEADLAMP,RH
|
MB880820 |
— | ||
|
80162B
|
80162B
MS820964 BULB, HEADLAMP12v-55w,h3 |
MS820964 |
from US $38.20 |
||
|
80162C
|
80162C
MS820962
BULB, HEADLAMP
|
MS820962 |
— | ||
| replacement | |||||
|
80162C
|
80162C
MZ414275 BLUB 12VH4 |
MZ414275 |
US $24.62 |
||
|
80162E
|
80162E
MS820099 BULB, HEADLAMP12v-5w |
MS820099 |
US $3.40 |
||
|
80195
|
80195
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80198
|
80198
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
